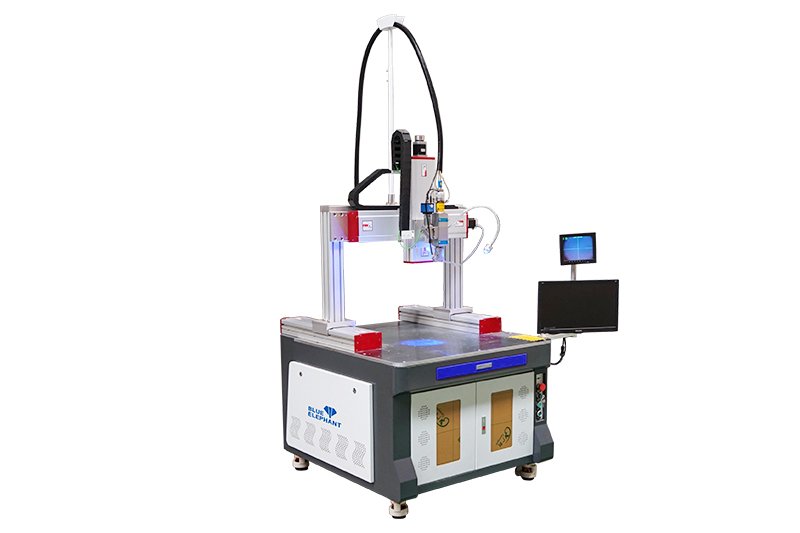

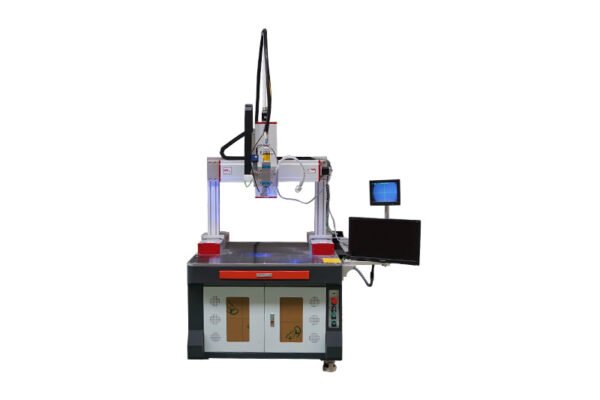

3D Automatic Fiber Laser Welding Machine
- Brand : Blue Elephant
- Model : 3D Automatic Laser Welding Machine
- Category : Laser Welding Machine
- Supply Ability : 400+ Units in Stock
- Certificate : CE, ISO9001
- Laser Power ：1000W, 1500W, 2000W
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
Description
3D Automatic Fiber Laser Welding Machine, it is mainly suitable for mass production. It can realize thin-walled materials and precision parts’s spot welding, butt welding, overlap welding, sealing welding and other welding processes. It has the advantages of wide application range, high precision and fast speed.
Features
- It has high laser beam quality and fast laser welding speed, which is twice the speed of traditional welding machines.
- Fully sealed internal structure protects the optical components from dust pollution.
- The X and Y axis galvanometers are driven by motors, and there are various ways of swinging.
- The whole machine has low energy consumption, less maintenance, and high stability, which saves production costs in long-term use.
- It is suitable for QBH connector laser sources.
- Humanized design with LCD screen display, the welding machine can be controlled by centralized buttons, which is easy to operate.
Parameters
| Laser power | 1000W, 1500W, 2000W |
| Laser source | Fiber laser |
| Working mode | Continuous or modulate |
| Laser wavelength | 1080nm |
| Beam quality | M2<1.2 |
| Standard output laser power | ±2% |
| Line width | <5nm |
| Cooling system | Water cooling |
| Working size | 500x300mm |

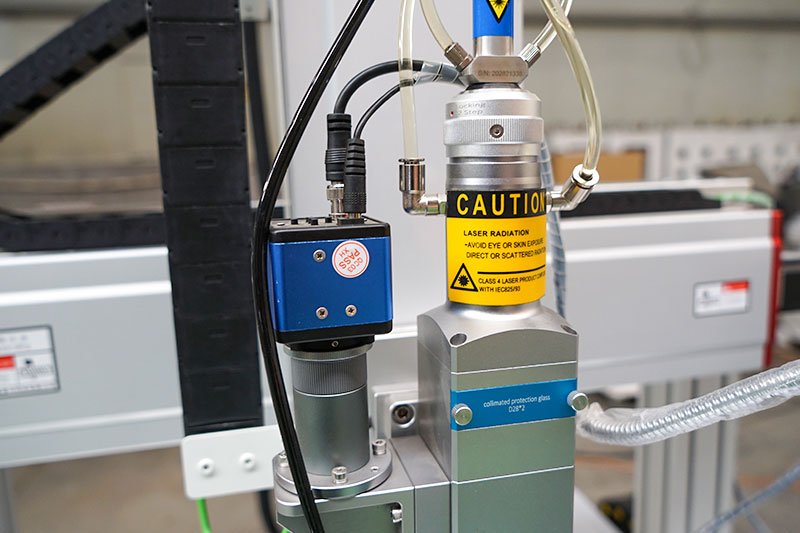

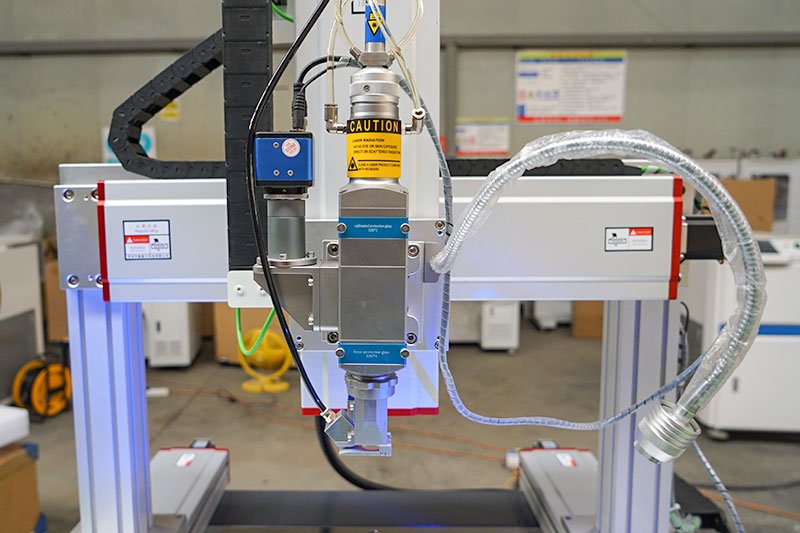

Laser Welding Machine Optional Parts
Application
The fiber laser welding machine is widely used in the IT industry, medical equipment, machinery manufacturing, elevator manufacturing, craft gifts, household appliances manufacturing, automobile shipbuilding, tools, hardware, advertising signs, display equipment, and other metalworking industries. The fiber laser welding machine can process many metal sheets and tubes. For example, stainless steel, aluminum, copper, galvanized sheets, gold, silver, and other alloy materials.
FAQ
Typical working speed for laser welding production ranges from 1 to 10 meters per minute based on different laser power. But the speed is subjected to the actual working conditions and processing materials.
The processing thickness is related to the laser power and the processing materials. Generally, the greater the laser power, the thicker the laser welder can weld.
Two types of lasers can be used to weld metal materials: pulsed laser or continuous laser. The choice between them depends on the thickness of the processing materials. The pulsed laser is suitable for light and thin metals, like sheet metal, razor blades, gold jewelry links, etc. The continuous laser is suitable for welding thick parts.
