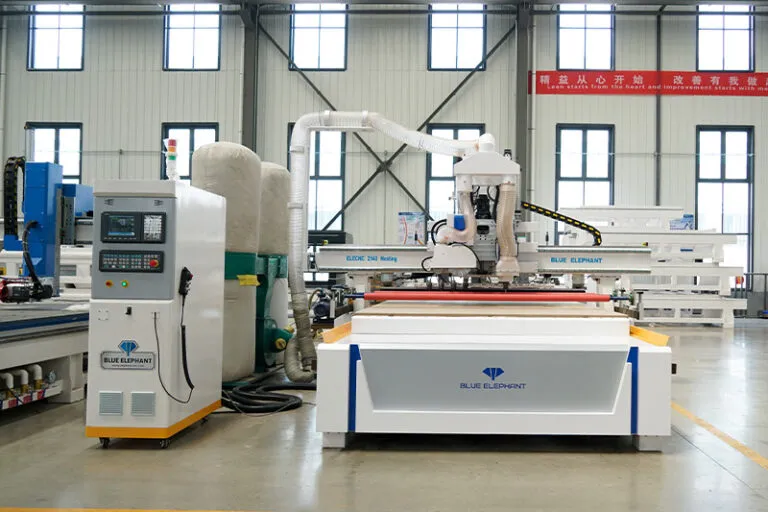

2140 ATC Nesting CNC with Two Saws and Labeling Machine
- Brand : Blue Elephant
- Model : ELECNC-2140ATC
- Standard : CE, ISO9001
- Table size : 2070*4100mm
- Category : Nesting CNC Machine
- Supply Ability : 450+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description
2140 ATC nesting CNC with two saws and labeling machine is ideal for customized panel furniture production. It features fast saw blade cutting and integrates automatic labeling, loading, and unloading in one process, reducing manual errors and improving efficiency.
Features
- The nesting CNC machine is equipped with double saw blades to prevent edge chipping.
- It supports automatic positioning for multiple sizes.
- Pressure rollers hold small panels in place to prevent shifting.
- It has 9.5 kw Italy Hiteco ATC air-cooling spindle, 24,000 RPM.
- Fast tool changes with linear ATC under the gantry.
Parameters
- Model: 2140 ATC
- X, Y, Z Axis Travel: 2070 × 4100 × 200 mm
- Tool Magazine: 12 pieces linear type ATC
- Servo: SYNTEC
- Linear Guide: Taiwan SHAC, Y-30,XZ-25
- Control System: Taiwan Syntec 60WE
- Voltage / Frequency: 380V,3PH,50HZ
- Spindle type: 9.5KW Hiteco ATC air-cooling tool changer, 24,000 rpm; Double saw 5.5kw+1.5kw
- Inverter: 11kw Delta inverter + 5.5kw+2.2kw Delta inverter
- Driver and motor: 850w Yaskawa servo + 1000w drive absolute value, bus board
- Reducer: Shimpo
- Table structure: Whole plate adsorption table, 16 divisions
- Chassis: Rittal
- Transmission: JT 2M
- Lubrication: 1.5L Auto lubrication system
- Vacuum Pump: 7.5kw Tong you pump ZBW 160, 380V,3PH,50HZ
- Vacuum cleaner: 5.5kw double bag old style vacuum cleaner, 380V, 3PH, 50HZ

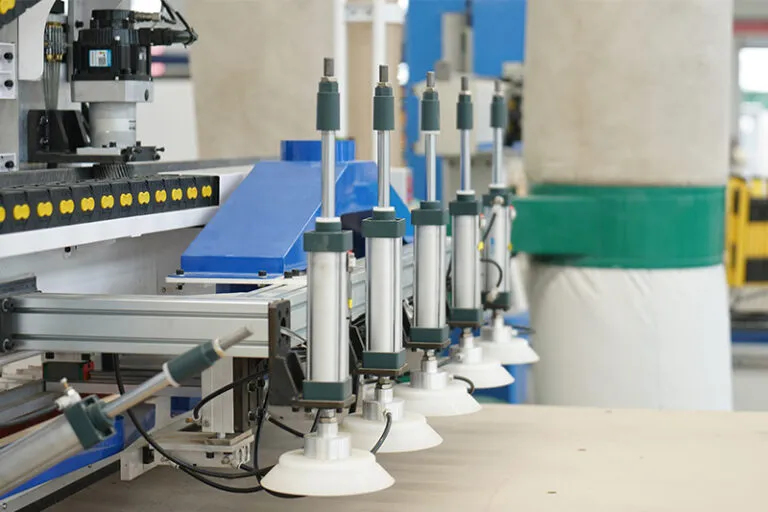

- Positioning Cylinder: 7, X-3,Y-5
2140 ATC Nesting CNC Machine Optional Parts

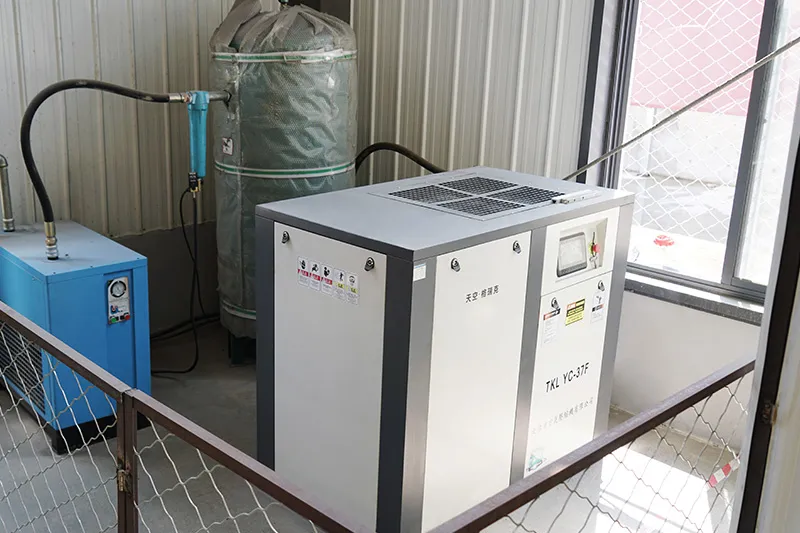

Nesting CNC Machine Air Compressor

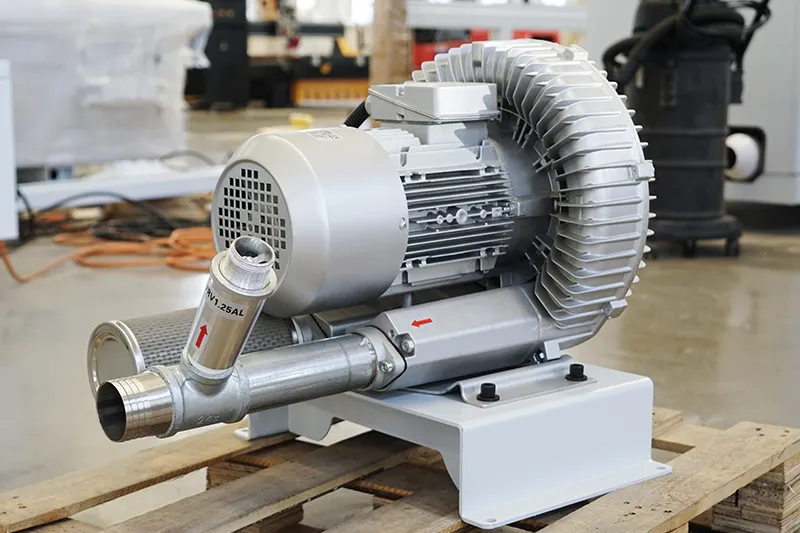

Nesting CNC Machine Vacuum Pump

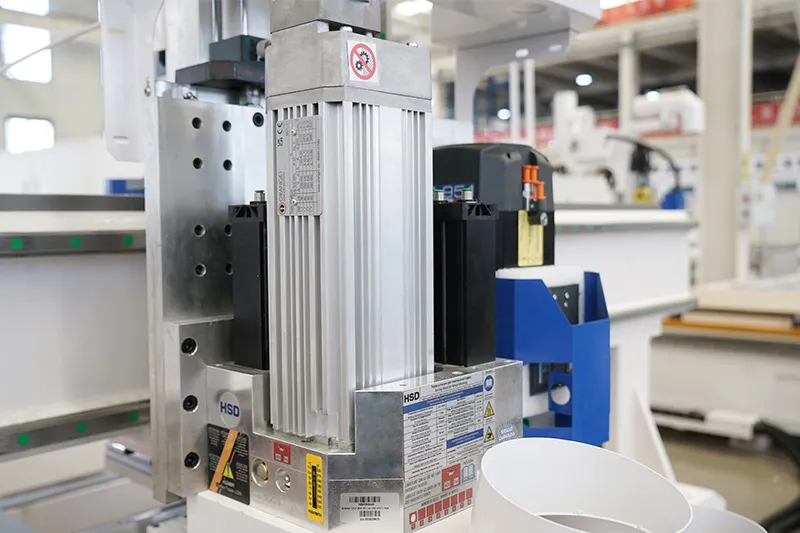

Nesting CNC Machine Drill

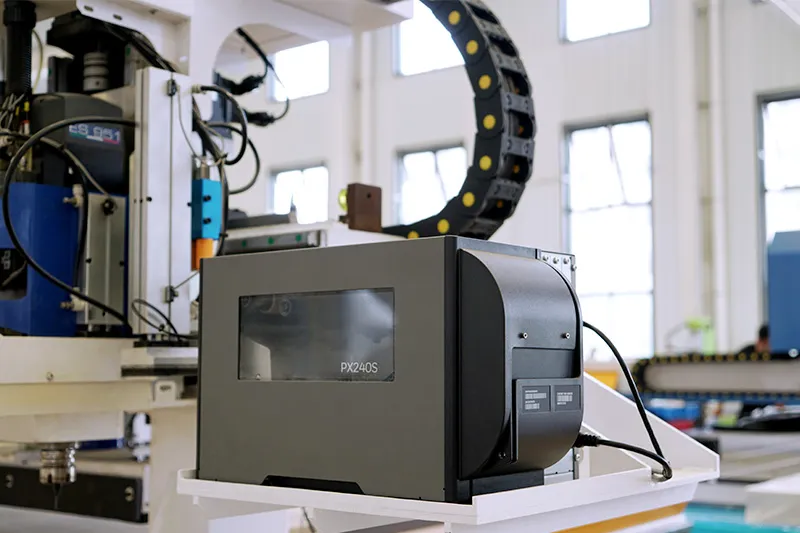

Nesting CNC Machine Integrated Labeling Machine

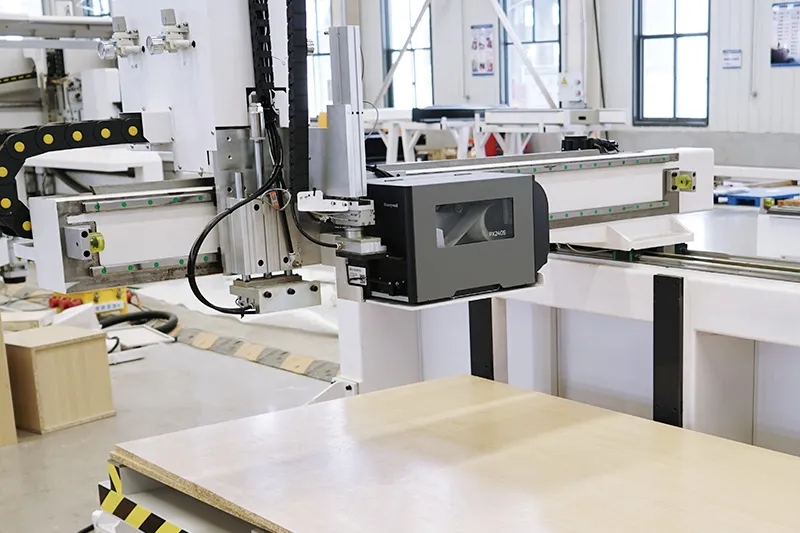

Nesting CNC Machine Independent Labeling Machine

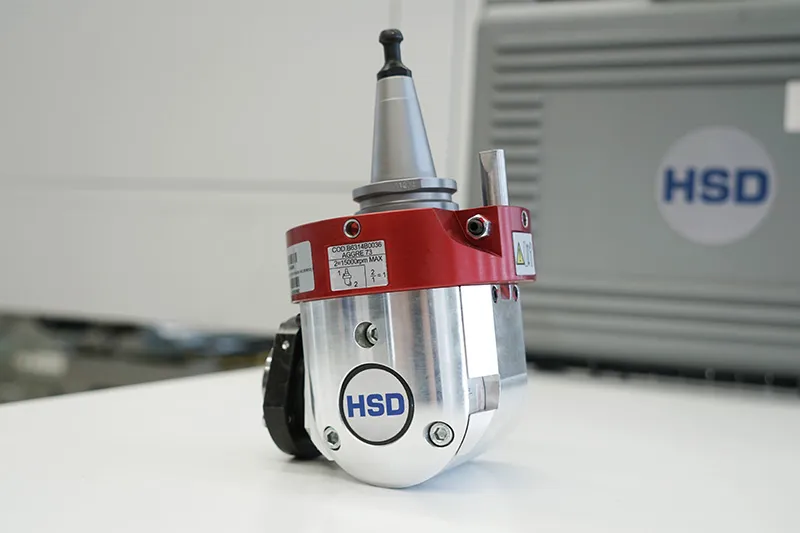

Nesting CNC Machine Aggregate Head

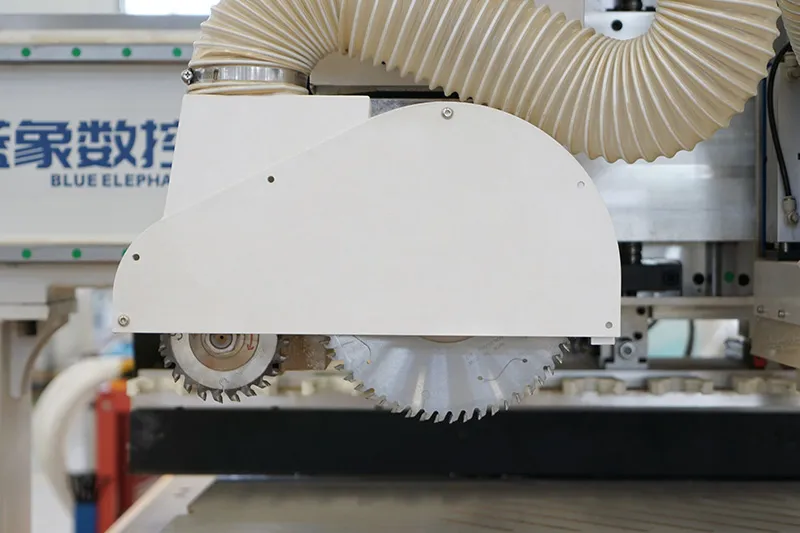

Nesting CNC Machine Saw Blade

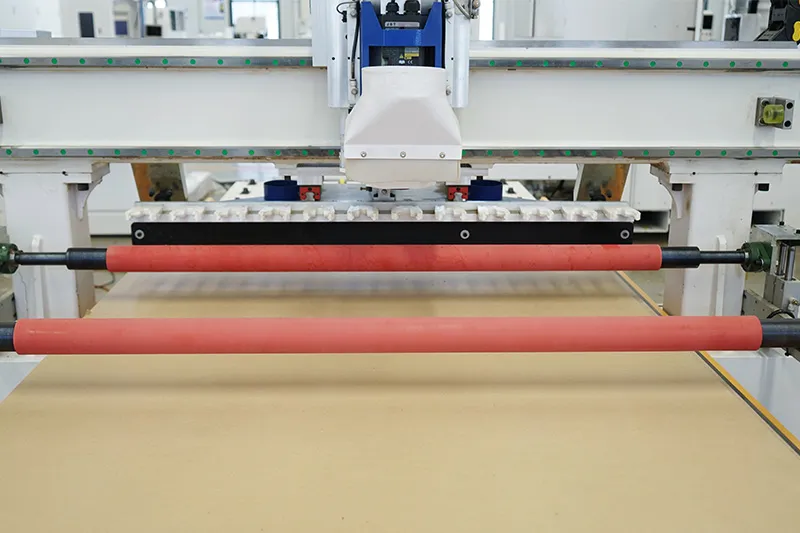

Nesting CNC Machine Pressure Roller
Successful Application Examples
Kitchen Cabinets
ATC router CNC nesting machine is ideally suited for the precision cutting required in cabinet production.
Office Furniture
Efficiently processes office furniture panels for customized workspace solutions.
Advertising Industry
Creates advertising boards and displays with fast, accurate CNC processing.
Construction Industry
Supports construction projects with reliable panel cutting and shaping capabilities.
Nesting CNC Router Machine FAQs
The wood ATC router CNC nesting machine can be used to process wood-based materials such as MDF, plywood, melamine board, acrylic sheet, PVC board, and particleboard, as well as solid wood.
Equipped with two saw blades, this nesting machine CNC ensures more efficient panel cutting—boosting both speed and productivity—without the need for additional equipment.
The integrated ATC system enables the nesting ATC CNC router to automatically swap and switch between different tools without human intervention, significantly increasing machining efficiency and speed.
The nesting CNC machine does not require highly skilled operators; the intuitive CNC system allows for quick proficiency after basic training, and the high level of automation minimizes the need for manual intervention.
The price of a 2140 ATC CNC nesting machine for sale depends on various factors—such as the level of automation and additional features—it generally falls within the $20,000 to $25,000 range.
