2137 3 Axis CNC Router for Sale
- Brand : Blue Elephant
- Model : ELECNC-2137
- Standard : CE, ISO9001
- Table size : 2100mm*3700mm
- Category : 3 Axis CNC Router
- Supply Ability : 400+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description

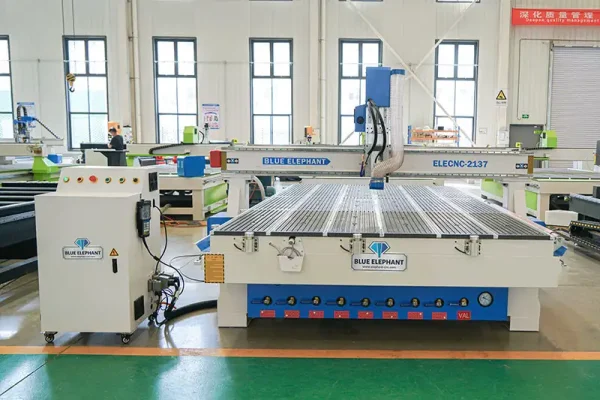

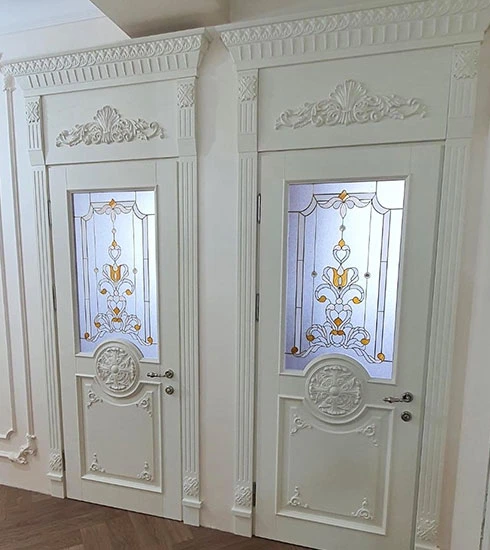

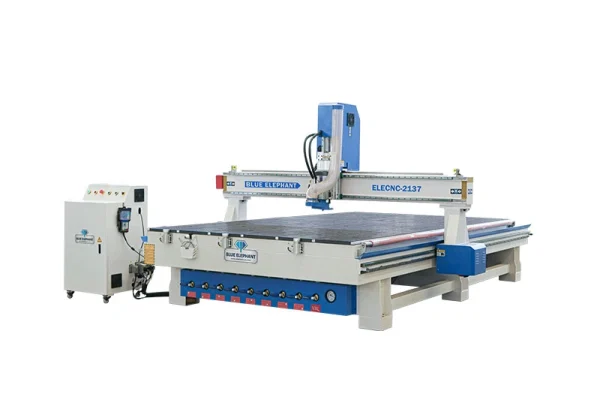

2137 3 Axis CNC router is a 3-axis CNC router designed for making cabinet doors, equipped with a T-slot vacuum table. The table size is 2100*3700*200mm, providing ample space for engraving and cutting standard Polywood or MDF. It securely holds workpieces in place, saving time and improving production efficiency. The CNC router machine comes with an original Italy HSD spindle, ensuring high speed and superior quality for the CNC wood engraving machine.
Features

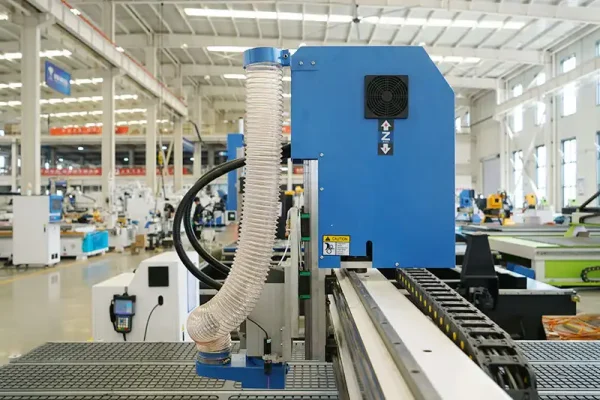

- The heavy-duty frame and gantry structure ensure more stable machine operation.
- The Japanese YASKAWA servo system extends the machine’s service life.
- The DSP control system makes it very easy to learn and operate.
- It quipped with auxiliary loading rollers to improve manual loading efficiency. The rollers feature a rubber-coated surface to prevent scratching and effectively protect the sheet material.
- The positioning cylinder quickly locates the sheet material to be processed, reducing manual alignment time and improving feeding efficiency.
Parameters
| X,Y,Z axis travel | 2100*3700*200mm |
| Voltage | 380V,3PH,50HZ |
| Control system | DSP B57 |
| Spindle power/speed | 6 KW HSD air cooling spindle, 18000rpm |
| Inverter | 7.5KW Delta |
| Motors and drives | YASKAWA 850W |
| Bed structure | Large square tube |
| Table structure | T-slot&vacuum work table,8 divisions |
| Side panel type | Column |
| Linear guide | #25 Taiwan |
| Limit switch | Japan OMRON |
| Rack | 1.5M JT |
| Lubrication system | Automatic lubrication |
| Vacuum pump voltage and frequency | Ribake 11KW double vortex pump 380V,3PH,50HZ |
| Dust collect system | Old style double bag dust collect system 380V,3PH,50HZ |
| Positioning cylinder | X:3, Y:4 |
| Tool setting | Automatic tool setting |
3 Axis CNC Router Optional Parts

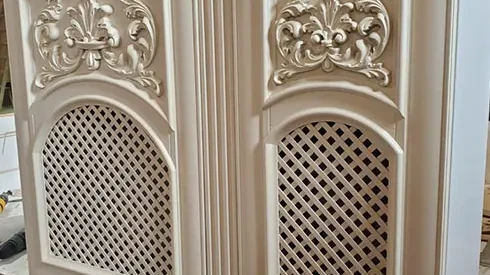

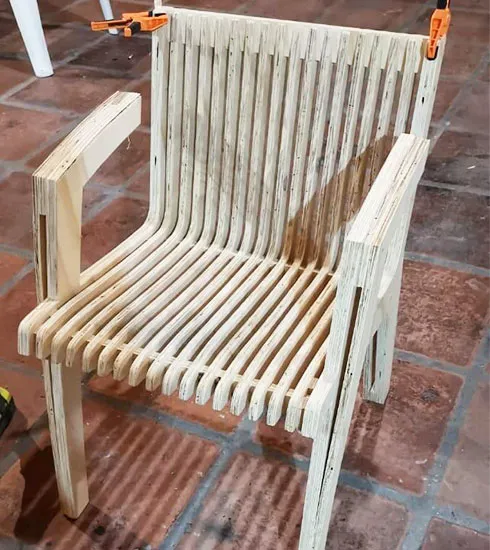

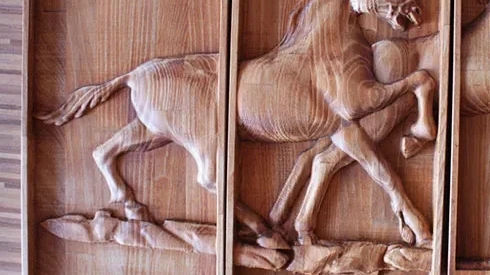

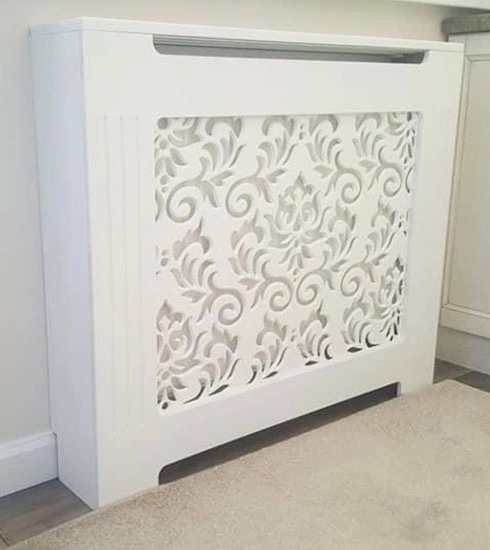

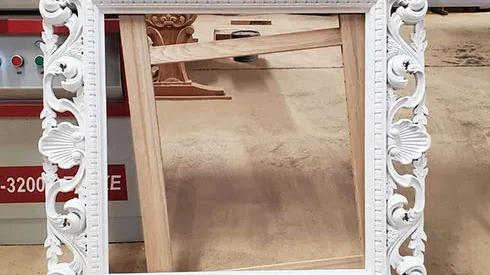

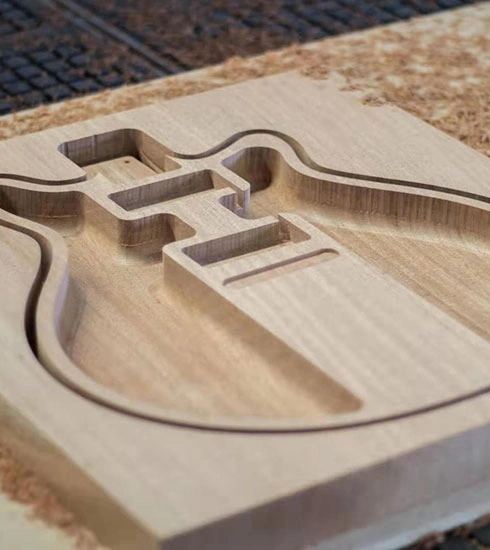

Application

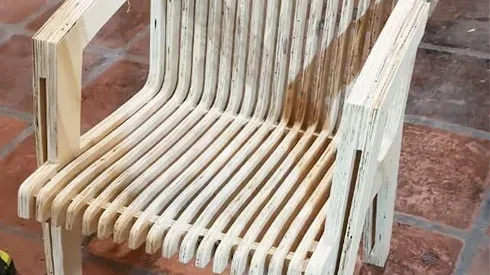

Wood: natural wood, plywood, soft wood, hard wood, fiberboard, particle board, melamine board, LDF, MDF, chipboard
Plastic and rubber: acrylic, ABS, HDPE, PVC, LDPE, UHMW, resin, double-colored board, PP, EVA
Stone: granite, marble, slate, basalt, pebbles, ceramic, porcelain, natural and artificial stones
Soft metal: aluminum, brass, copper, mild steel
Composite: aluminum plastic composite, copper composite, titanium composite, zinc composite
FAQ
Both spindle work great. However, the air cooling spindle is easier to use and have a better cooling effect via fan. While liquid cooling spindle has low noise and needs to be connected with a water pump or water chiller.
We have a mature after-sales service team that can provide 24-hour online service. If you have any questions, our engineers will guide you step by step and help you solve them. In addition, we also have instructional videos and manuals for you.
The machine needs 22 to 25 working days for production and 2 to 3 days for testing. Quality is the first!
