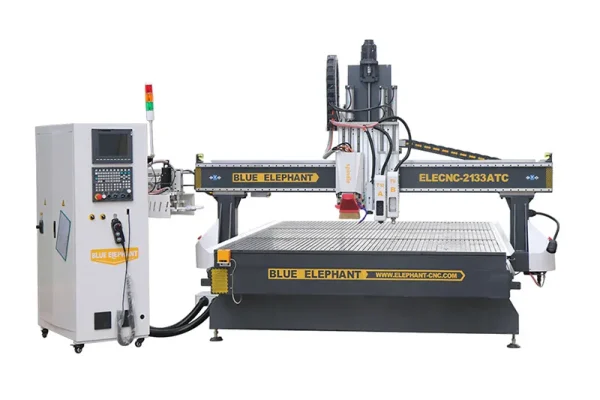

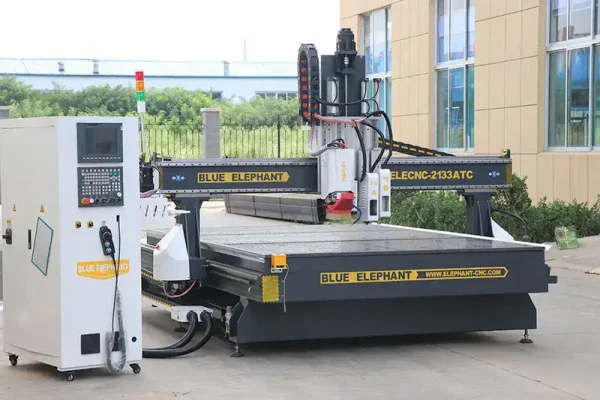

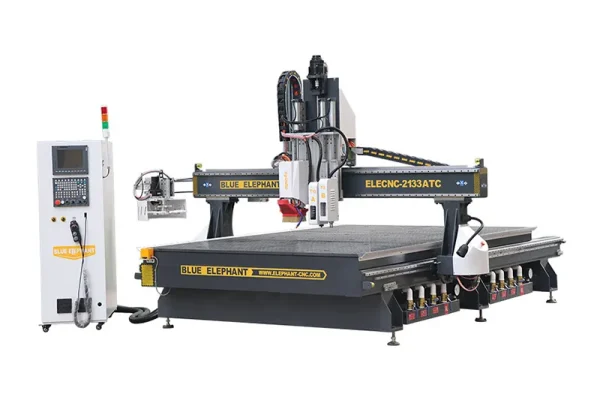

2133 ATC CCD Camera Patrol CNC Router
- Brand : Blue Elephant
- Model : ELECNC-2133ATC
- Standard : CE, ISO9001
- Table size : 2100mm*3300mm, option: 1500mm*3000mm(5’×10′), 2100mm*3000mm, 2100mm*4000mm, etc.
- Category : Oscillating Knife Cutting Machine
- Supply Ability : 330+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description
2133 ATC CCD camera patrol CNC router can not only patrol cut but also engrave, drill and mill. So it is suitable for diversified processing needs. Moreover, this machine is equipped with carousel tool magazines, and 8pcs spindles can be automatically switched according to the machining requirements, thus greatly improving the user’s machining efficiency.
Features
- New-generation CCD: Using the new-generation CCD, it can scan pattern edges quickly and efficiently, effectively improving processing efficiency.
- HSD air-cooled spindle: Equipped with an HSD air-cooled spindle, it features high power and high precision.
- Large square tube bed: Manufactured with a large square tube bed, it provides greater stability and ensures high processing accuracy.
- Syntec 11MB control system: Adopting the Syntec 11MB control system, it is convenient and easy to operate.
Parameters
| Model | ELECNC2133ATC |
| X,Y axis travel | 2100x3300mm, option: 1500*3000mm, 2100*3000mm, 2100*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm, etc. |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| Drilling bank | Optional |
| Tool magazine | Carousel type auto tool changer Option: Linear type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC /LNC controller, option: Ncstudio |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Optional |
| Linear guide | Taiwan Linear guide with dust proof |
| Transmission | X, Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam,Type 3,Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Optional Items
| Vacuum pump | Water circulation Ring blower Rotary vane,oil-free: Tongyou,Taiwan Eurovac,Germany Becker |
| Dust collect system | 3kw,5.5kw,7.5kw,etc,including dust hood, pipe, all full set New type |
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc. |
Oscillating Knife Cutting Machine Optional Parts
Application
A CCD CNC router machine can complete all the work that a 3-axis woodworking machine can do. For example, cutting and carving wood, acrylic, fiberglass, etc. In addition, the CCD camera can automatically detect the edges of the image printed on the sheet, so as to cut irregular shapes. Therefore, CCD CNC router machine is widely used for cutting printed PVC boards, KT boards and other boards for advertising purposes.
FAQ
This machine is a combination of a CNC router and an oscillating knife. It can cut all the materials that these two types of machine can cut. For example, wood, MDF, plywood, plastic, acrylic, foam, paper, leather, acoustic panel, etc.
Yes, we will provide Artcam, Aspire software free of charge for this CNC route machine.
For the machine with working area of 2100*3300mm, we will dismount the gantry when packing and delivering to make sure the total width of the machine is less than 2.28m. So it is easily to be put into a container. At the same time, we will provide detailed installation instructions and videos for the gantry installation. So you can rest assured for the installation.
