2128 ATC Nesting CNC Machine with Loading & Unloading

(4.9 based on 165 ratings and reviews)

$50,000 – $60,000
  • Brand : Blue Elephant
  • Model : EK-2128 ATC
  • Standard : CE, ISO9001
  • Table size : 2070*2800mm
  • Category : Nesting CNC Machine
  • Supply Ability : 400+ Units in Stock
  • After-sale Service : Free Lifetime Technical Support online, Overseas service.
  • Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
  • Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)

Description

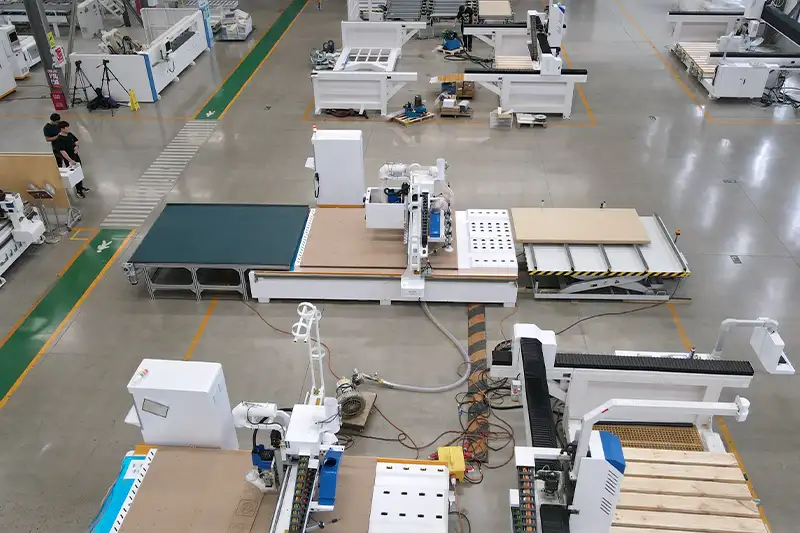

The 2128 ATC Nesting CNC Machine is equipped with an advanced automatic loading and unloading system, integrating material feeding, machining, and unloading into one complete solution. It ensures efficient panel handling, accurate positioning, continuous processing, and automatic finished-product output. By reducing manual intervention, the system greatly improves production efficiency, processing stability, and overall automation, making it an ideal solution for high-volume panel processing in cabinet, wardrobe, and whole-house customized furniture production.

Features

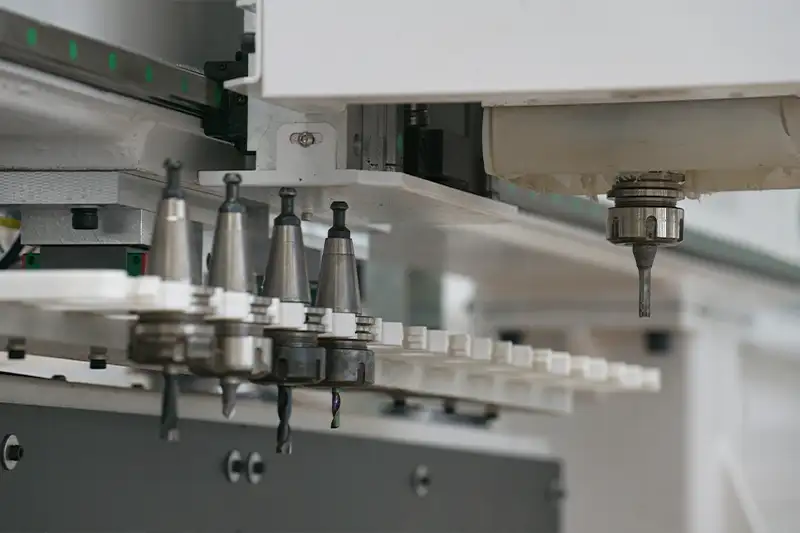

  • Features an under-gantry linear tool magazine for rapid and efficient tool changes.
  • Integrated with automatic loading and unloading platforms to greatly enhance overall production efficiency.

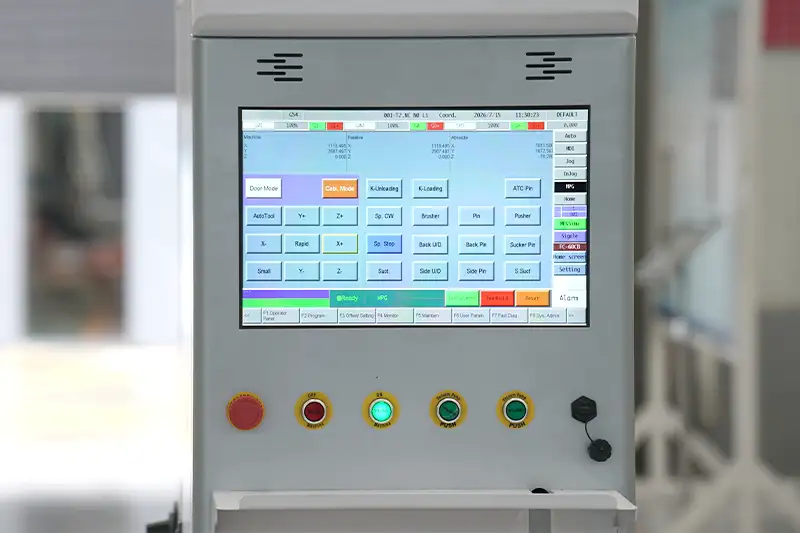

  • Powered by the Syntec 60CB control system with a user-friendly interface, simple operation, and easy-to-use experience.
  • The bed features a fully welded structure for high rigidity and excellent vibration damping, ensuring long-term stability without deformation and sustained accuracy.

Parameters

  • Model: EK-2128 ATC
  • X, Y, Z Axis Travel: 2070 × 2800 × 200 mm
  • Panel Size: Small: 1220 × 2440 mm, Large: 2070 × 2800 mm
  • Worktable Structure: Full-sheet vacuum table, 8 zones
  • Tool Magazine: Linear tool changer under the gantry
  • Voltage / Frequency: 380V, 3PH, 50Hz
  • Control System: Syntec 60CB
  • Spindle Power & Speed: 9kW HQD ATC air cooling spindle, 18,000 rpm
  • Inverter: Fuling H1 Series Inverter – 11kW
  • Motor & Driver: Leadshine 1.5kW Servo Motor
  • Limit Switch: Omron
  • Reducer: Shimpo
  • Vacuum Pump: 2 × 4kW Becker KVT3.140 vacuum pumps in parallel, 380V, 3PH, 50Hz
  • Dust Collector: 5.5kW dual-bag dust collector, 380V, 3PH, 50Hz
  • Guide Rail: Taiwan Guide Rail: Y#30, X#25, Z#25
  • Rack: JT 2M
  • Positioning Cylinder: X: 3, Y: 4
  • Lubrication System: 1.5L automatic lubrication

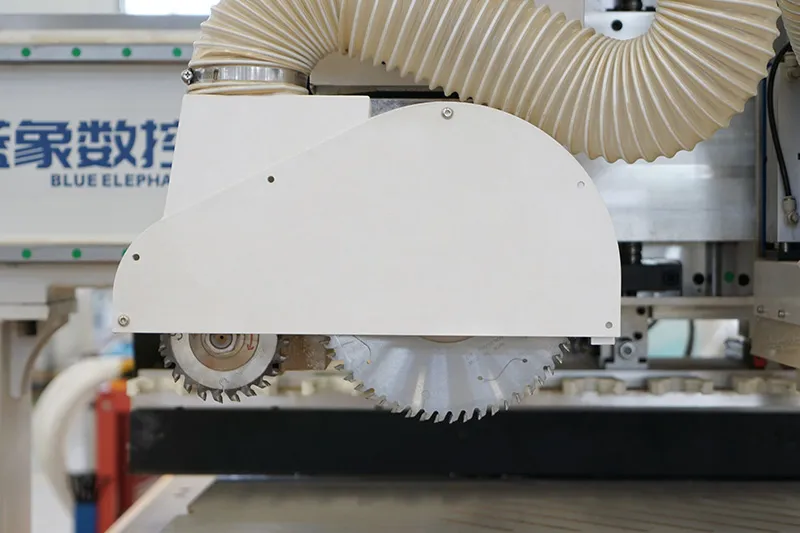

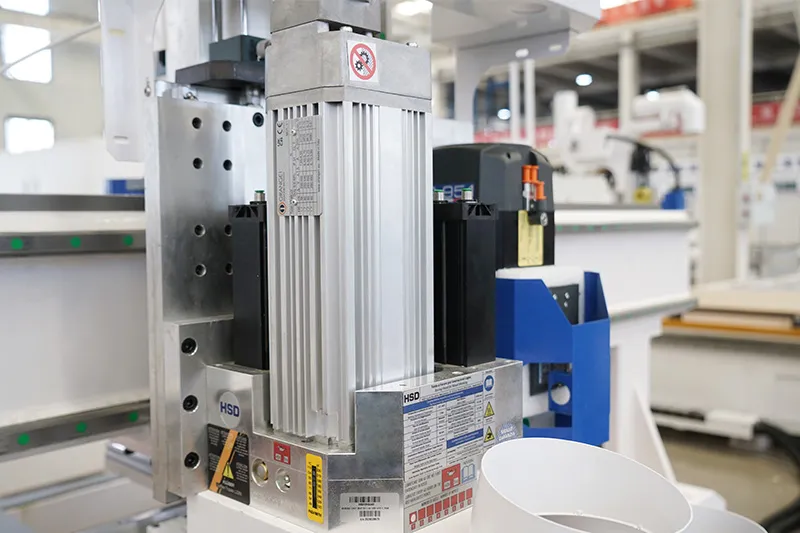

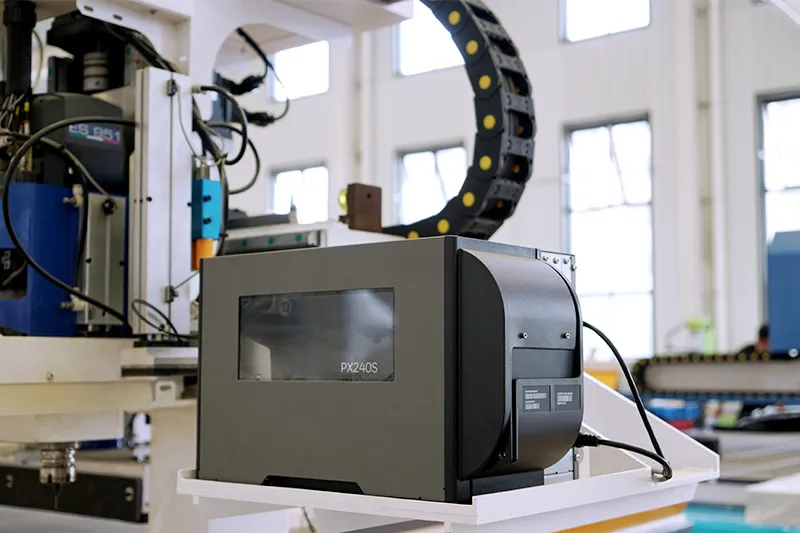

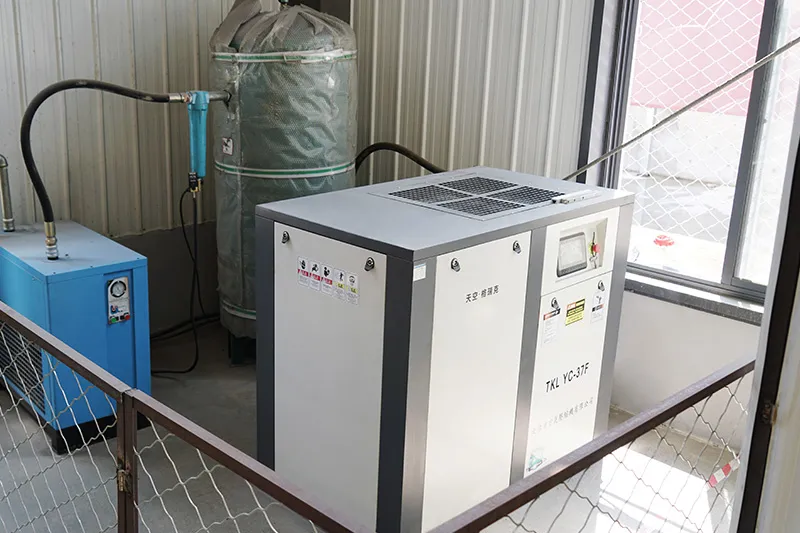

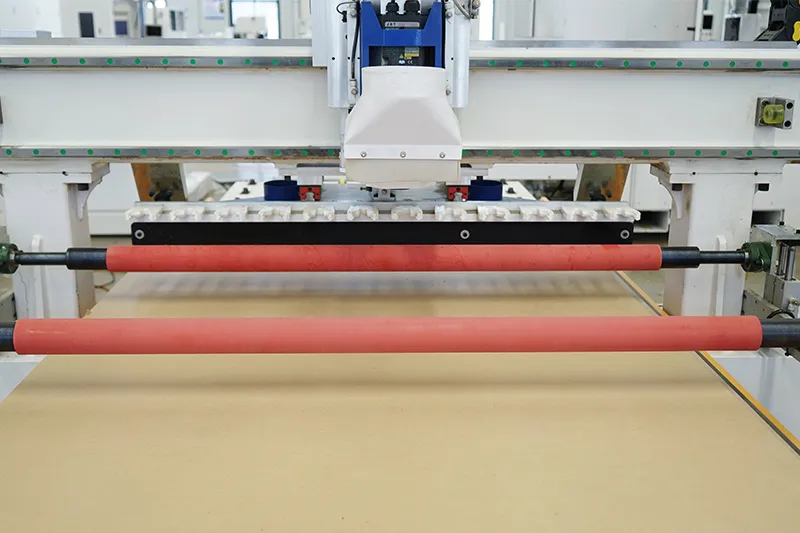

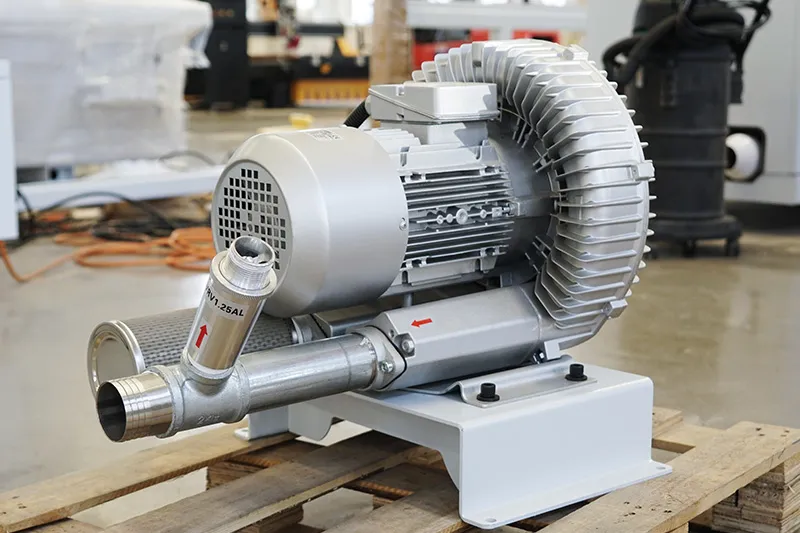

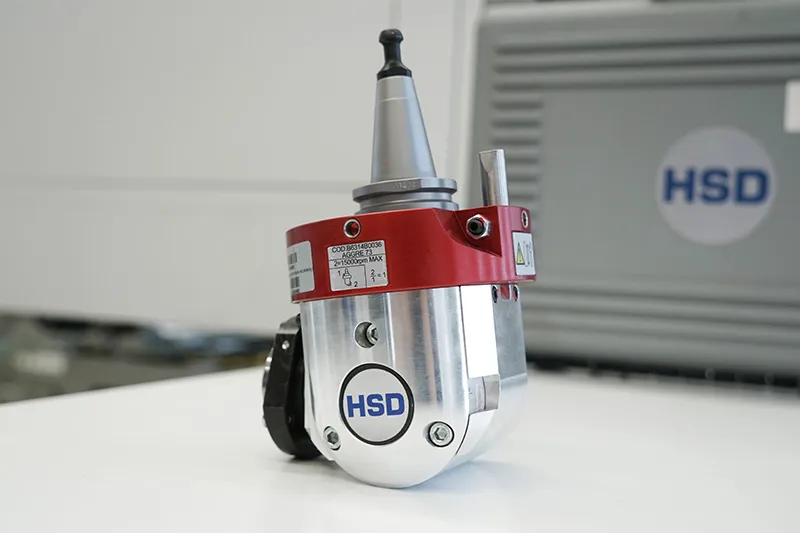

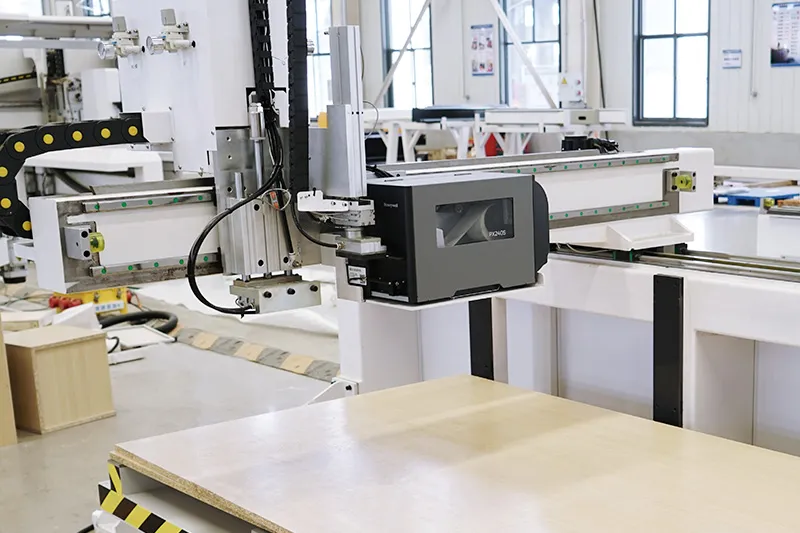

ATC Nesting CNC Machine Optional Parts

One Nesting Machine, Multiple Applications

Custom Cabinets

Suitable for high-precision cutting and drilling of customized furniture panels

Commercial Display

Efficiently processes panels for display cabinets, racks, and commercial spaces

Door Manufacturing

For shaping and surface processing of flat, molded, and European-style door panels

Interior Decoration

Precision machining of wall panels, skirting boards, and decorative panels

ATC Nesting CNC Router Machine FAQ

What types of panels can be processed by 2128 ATC Nesting CNC Machine?

An ATC loading and unloading CNC nesting machine can process a wide range of panel materials, including MDF, plywood, particle board, melamine-faced panels, laminate boards, and other wood-based materials. The 2128 CNC nesting machine is widely used for cutting, drilling, grooving, and shaping panels for cabinet doors, wardrobes, office furniture, and customized furniture production.

How does an ATC loading and unloading system work on a 2128 nesting CNC machine?

The ATC loading and unloading system uses vacuum lifting and conveying mechanisms to move panels automatically. The system picks up raw panels, positions them accurately on the CNC table, completes the machining process, and transfers finished panels to the unloading area. This creates a continuous production workflow with less manual handling and improved processing efficiency.

How many operators are required for a 2128 ATC Nesting CNC Machine?

A CNC nesting machine with an automatic loading and unloading system requires fewer operators compared with traditional CNC routers. In many production environments, one operator can monitor the machine operation, manage material preparation, and handle multiple production tasks, significantly reducing labor intensity and improving overall productivity.

Can the 2128 ATC Nesting CNC Machine be integrated into a furniture production line?

Yes. 2128 ATC loading and unloading CNC nesting machine can be integrated into modern furniture production lines. It can work together with other equipment such as edge banding machines, drilling machines, and sorting systems to create a more efficient automated workflow for cabinet, wardrobe, and whole-house customization production.

What is the maximum panel size that a 2128 ATC Nesting CNC Machine can handle?

The 2128 CNC nesting machine can process panels up to 2070×2800mm. This large working size is designed for efficient processing of oversized furniture panels, making it suitable for cabinet, wardrobe, and whole-house customization production. It helps reduce panel cutting limitations, improve material utilization, and meet the requirements of high-volume panel processing.
