2040 Linear ATC Wood CNC Router for Sale
- Brand: Blue Elephant
- Model: ELECNC-2040ATC
- Standard: CE, ISO9001
- Table size: 2000mm*4000mm
- Category: ATC CNC Router
- Supply Ability: 400+ Units in Stock
- After-sale Service: Free Lifetime Technical Support online, Overseas service.
- Payment Terms: Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty: 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description

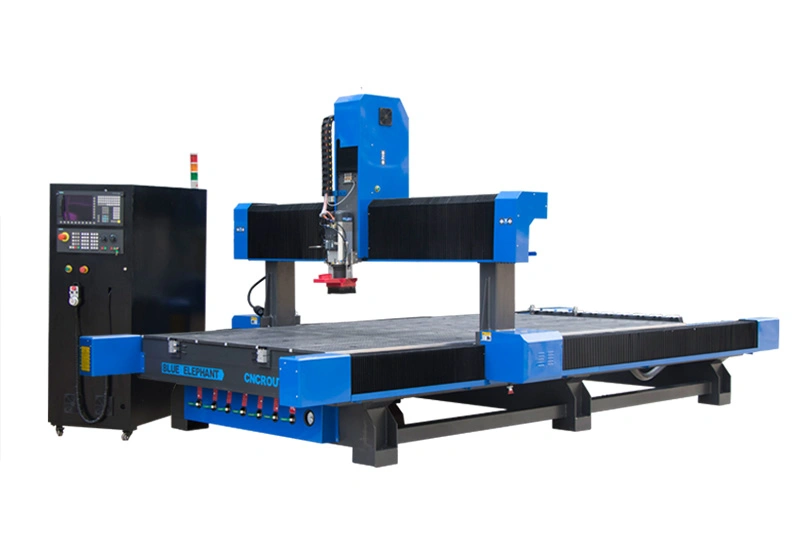

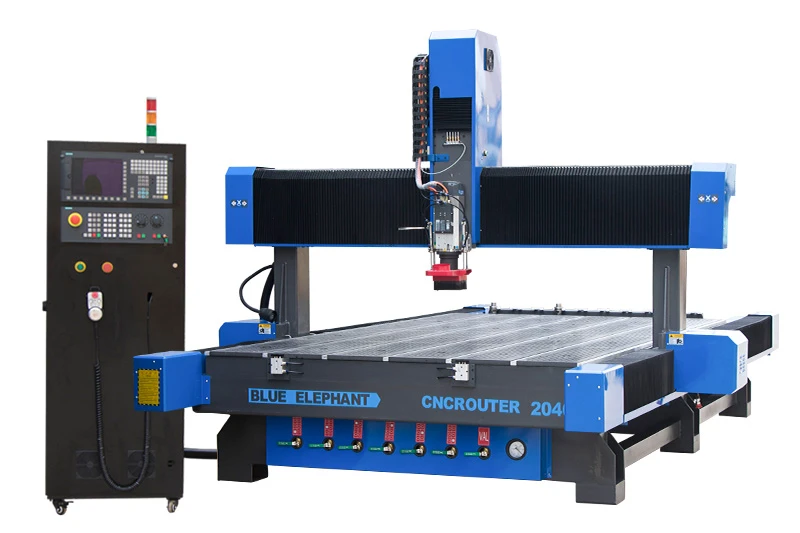

2040 Linear ATC CNC Router is a high-performance CNC woodworking machine designed for large-size panel processing, furniture manufacturing, cabinet making, and custom woodworking production. Equipped with an automatic tool changer, HSD ATC spindle, and 2000×4000mm working area, it enables fast tool switching, precise cutting, drilling, engraving, and carving with improved efficiency. This large format CNC router is an ideal solution for businesses requiring continuous operation, multiple tool processing, and high-quality finished products.
Features
- The Italy HSD air-cooled spindle provides high performance, with a working speed of up to 24000RPM.
- This machine is a typical 3-axis ATC CNC machine. For 3D wood carving, a 4-axis wood CNC router machine is more suitable.
- The T-slot and vacuum working table with 6 zones helps securely fix materials and improves material utilization.

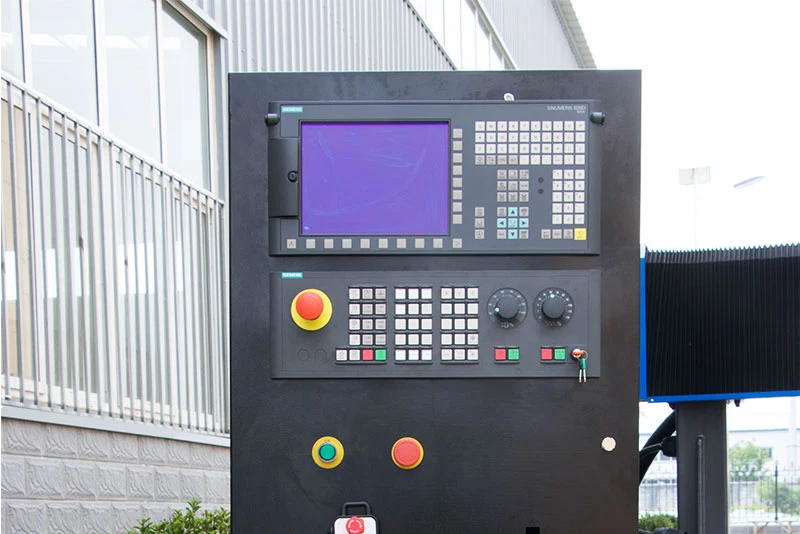

- The Siemens control system is easy to operate, and the positioning cylinder effectively fixes materials during processing.
- All specifications can be customized according to your specific requirements.
Parameters
| Model | ELECNC2040ATC |
| X,Y axis travel | 2000x4000mm, option: 1500*3000mm; 2000*3000mm; 2000*6000mm, etc. |
| Z axis travel | 500mm, option: 200mm, 300mm, 400mm, 600mm, etc. |
| Spindle type | 12kw HSD air cooling spindle, HSK F63 tool holder |
| Inverter type | 15kw |
| Drilling bank | Optional |
| Tool magazine | Linear tool magazine Option: Carousel type auto tool changer |
| Tool holder with collet | HSK F63, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Siemens control system, option: Syntec, LNC |
| Driving system | Siemens 1.5kw servo motor and drivers Option: 850w Leadshine servo, 850W YASKAWA servo |
| Reducer | SHIMPO reducer |
| Machine structure | Heavy duty body |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Optional: 7 pieces (X2,Y4) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan / Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/60HZ |
Optional Items
| Vacuum pump |
Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (ISO30, HSK F63), 12kw (ISO30, HSK F63), etc. |
ATC CNC Router Optional Parts
Application
- Furniture Industry: Various types of doors, windows, cabinets, shelves, tables, chairs, sofas, beds, desks, nightstands
- Decoration Industry: Door frames, photo frames, mirror frames, screens, lights, holiday decorations
- Craft Industry: Artworks, gifts, souvenirs, clock frames, holiday ornaments
- Advertising Industry: Advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names, LED lights
- Other Wooden Products: Printed circuit boards, insulation materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of lining materials for medical equipment, electronics, or other containers
2040 CNC Router with Linear ATC FAQ
A 2040 Linear ATC Wood CNC Router can process various materials, including MDF, plywood, solid wood, acrylic, PVC, foam, and some non-ferrous materials such as aluminum. It is widely used in furniture manufacturing, woodworking, advertising, interior decoration, and custom product production. The suitable material depends on the spindle configuration, cutting tools, and processing requirements.
A 2040 Linear ATC CNC Router is usually equipped with a linear tool magazine that can hold multiple tools, with common configurations including 6, 8, 10, or more tool positions depending on production requirements. The automatic tool changer allows the machine to select and replace different cutting tools automatically during the machining process, without manual intervention.
This industrial CNC router is recommended for medium to large-scale woodworking production. It is suitable for furniture factories, cabinet manufacturers, custom woodworking businesses, and companies requiring frequent multi-process machining. Compared with entry-level CNC routers, the ATC system helps businesses improve production capacity and reduce labor costs during continuous operation.
The installation space required for a 2040 Linear ATC CNC Router depends on the machine size, dust collection system, material storage, and operator working area. In general, users should reserve additional space around the machine for loading materials, maintenance, and safe operation. A properly planned workshop layout helps improve workflow efficiency and ensures convenient daily use.
The price of a 2040 Linear ATC CNC Router depends on several factors, including spindle power, automatic tool changer configuration, control system, servo motors, vacuum table options, machine structure, and additional functions. Different production requirements may require different configurations, so the final cost should be evaluated based on machining materials, production volume, and expected applications.
