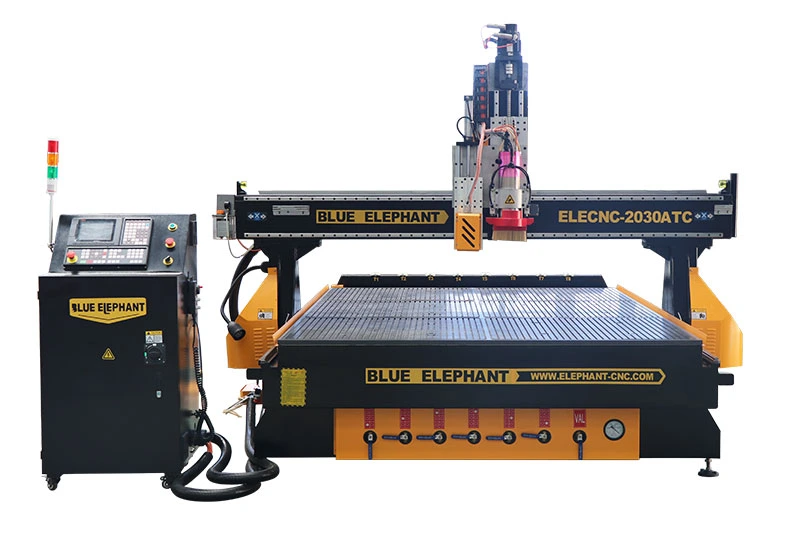

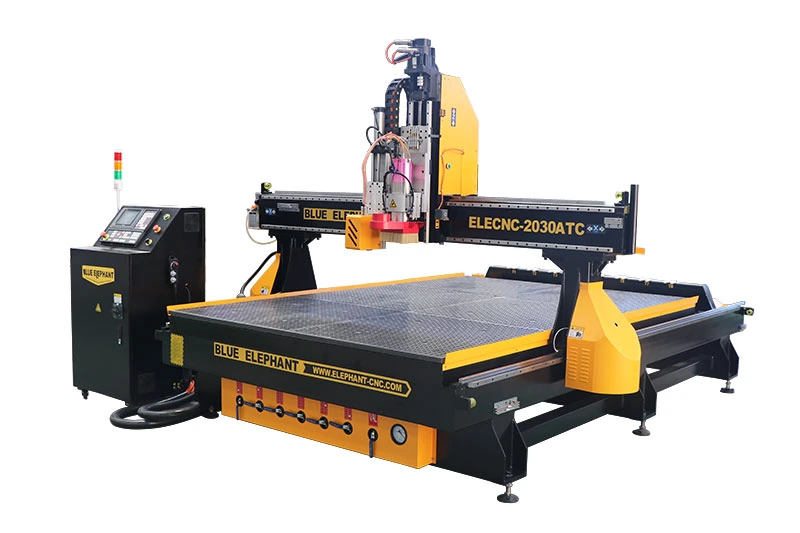

2030 Linear ATC CNC Router with EOT-3 Oscillating Knife

(4.9 based on 106 ratings and reviews)

$27,500 – $32,300
  • Brand: Blue Elephant
  • Model: ELECNC-2030ATC
  • Standard: CE, ISO9001
  • Table size: 2000mm*3000mm
  • Category: ATC CNC Router
  • Supply Ability: 380+ Units in Stock
  • After-sale Service: Free Lifetime Technical Support online, Overseas service.
  • Payment Terms: Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
  • Warranty: 12-month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)

Description

2030 linear ATC CNC router combines the functions of a CNC router and an oscillating cutter. Automatic tool changer makes woodworking automatically, helping the man out of the manual operation of choosing and fixing tool and bits. And it also greatly saves much time. While the EOT-3 oscillating knife meets the cutting needs of soft materials like leather, carpet, carton, cardboard, rubber, etc.

Features

  • German EOT-3 oscillating knife can cut soft materials such as leather, carton, and cloth, as well as common materials like wood, MDF, and acrylic.
  • The linear automatic tool changer with 8 tool slots provides an efficient and cost-effective solution for automatic woodworking.

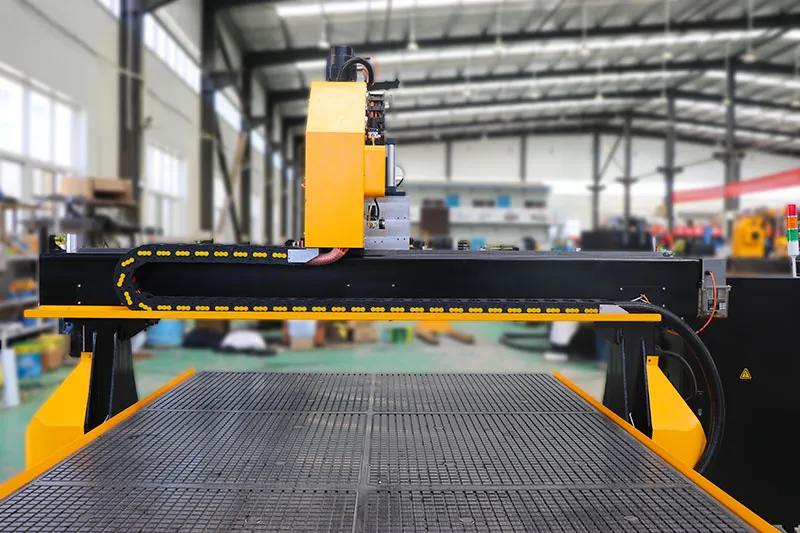

  • The vacuum table offers strong adsorption force to firmly secure materials during processing.
  • The high-performance drive motor ensures high-speed operation and precise machining.

Parameters

Model ELECNC2030ATC
X, Y axis travel 2000*3000mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc.
Z axis travel 500mm, option: 200mm, 300mm, 400mm, 600mm, etc.
Spindle type 9KW ATC air-cooled spindle, ISO30, ER32
Inverter type 11KW
Drilling bank Optional
Tool magazine Linear type automatic tool changer
Option: Carousel type automatic tool changer
Tool holder with collet ISO30, ER32 collet: φ4, φ6, 1/8, 1/2
Control system Taiwan SYNTEC/LNC controller, option: Syntec
Driving system 850W Leadshine AC servo driver and 850W AC servo motor, 4 sets. Option: 850W Japan Yaskawa servo
Reducer Japan SHIMPO reducer
Machine structure Heavy-duty body with quenching treatment
Work table Aluminum T-slot and vacuum work table
Positioning cylinder Option: 7 pieces (X3, Y4)
Linear guide Taiwan linear guide
Transmission X, Y axis: Taiwan/Germany helical rack and pinion
Z axis: Taiwan TBI high-precision ball screw
Lubrication system 1.5L automatic lubrication system
Tool calibration Automatic tool sensor calibration
Cables Germany Igus cables with CE and cUL certificates
Compatible software Artcam, Alphcam, Type 3, Ucancam, Aspire, etc.
Command language G Code and M Code
Traveling speed 80m/min
Working speed 0-25m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.03mm
Working air pressure 0.6MPa
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/60HZ

Optional Items

Vacuum pump
  1. Water circulation
  2. Ring blower
  3. Rotary vane, oil-free

Tongyou, Taiwan Eurovac, Germany Becker
Dust collection system
  1. 3KW, 5.5KW, 7.5KW, etc., including dust hood, pipe, and complete set
  2. New type
Air compressor Piston air compressor, screw air compressor
Protection device Light curtain
Spindle type 9KW ATC spindle (HSK F63), 12KW (ISO30, HSK F63), etc.

ATC CNC Router Optional Parts

Application

ATC CNC router has an independent tool magazine of linear type or carousel type. It can change the required tools automatically during the machining process without suspending the work. The ATC CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding materials, ATC CNC router can process various wood materials, plastics, stone, soft metals and composites.

FAQs

Can I use this CNC router machine to cut aluminum?

Yes, of course. Our CNC router machine can process wood, solid wood, MDF, HDPE, plastic, foam, soft metal, such as aluminum, etc.

What kind of maintenance is required for this CNC router machine?

After using the CNC router, please clean the machine timely, especially the helical rack gear and square linear guide. Meanwhile, please pay attention to lubrication linear guide.

Can I use 415V for this machine?

Yes, 415V is OK for this CNC router, since the working voltage is 380V±10%. For vacuum pump and dust collector, you need to work with 415V for steady working.
