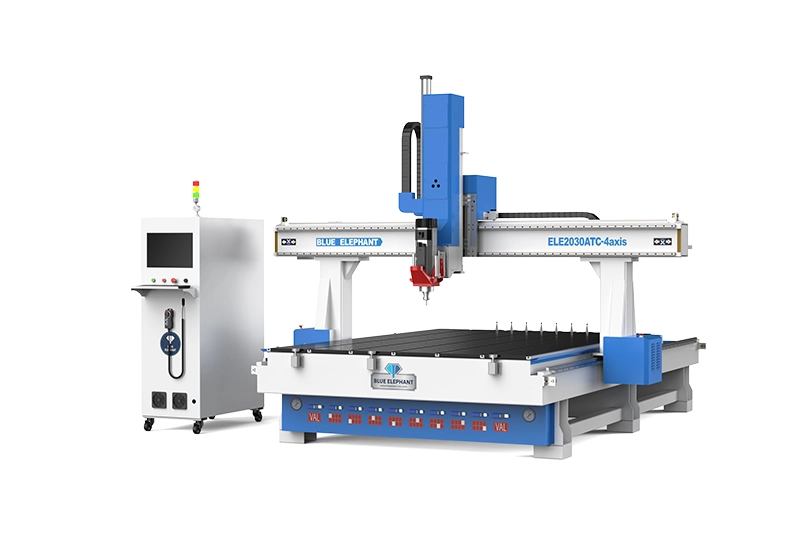

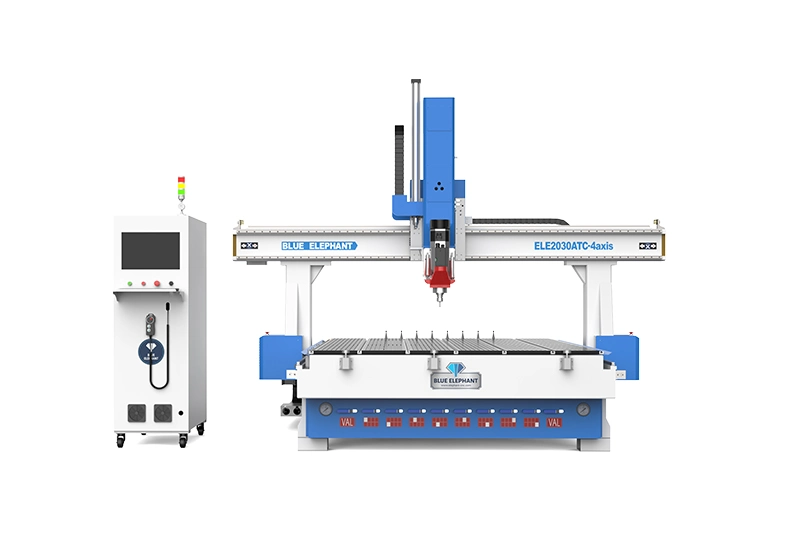

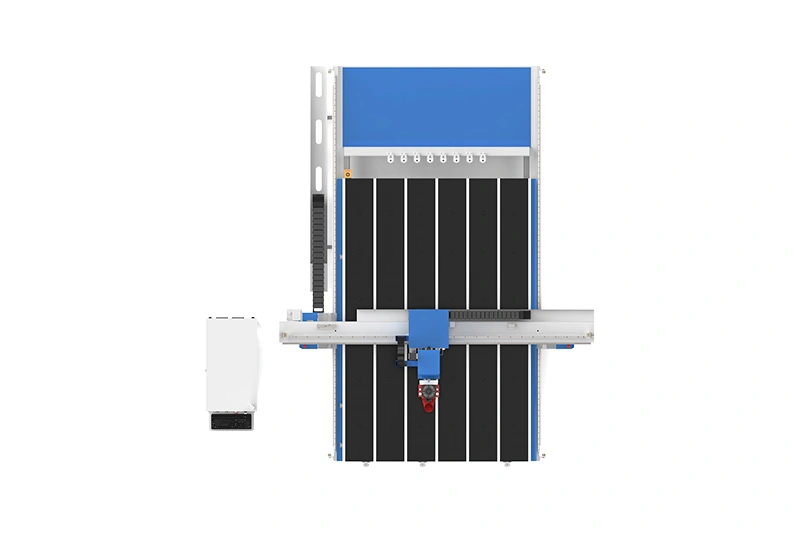

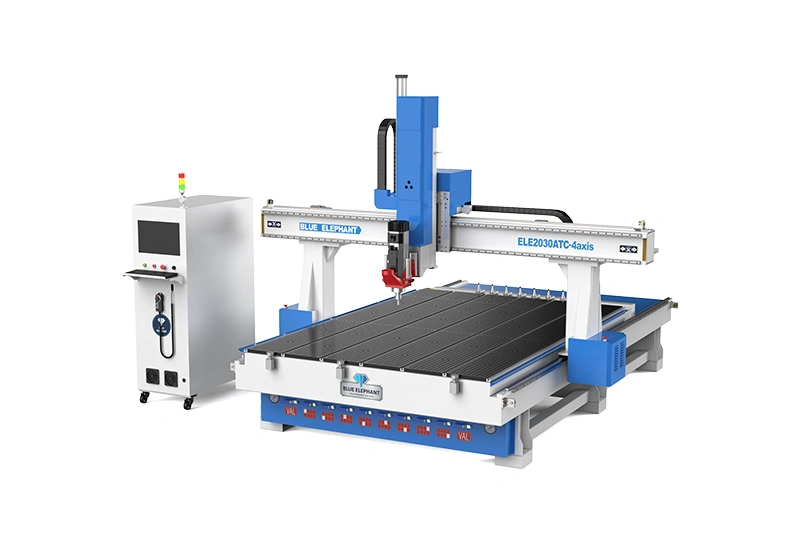

2030 4 Axis ATC CNC Router Machine for Sale
- Brand: Blue Elephant
- Model: ELECNC2030ATC-4A
- Standard: CE, ISO9001
- Table size: 2000mm*3000mm
- Category: ATC CNC Router
- Supply Ability: 400+ Units in Stock
- After-sale Service: Free Lifetime Technical Support online, Overseas service.
- Payment Terms: Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty: 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description
2030 4 Axis ATC CNC Router Machine is an advanced woodworking CNC machine equipped with an automatic tool changer system and a rotating spindle function. The automatic tool changer can automatically switch tools according to different machining processes, eliminating frequent manual tool changes and improving continuous production efficiency. The rotating spindle enables the machine to perform complex 3D carving, angled cutting, and multi-sided machining on materials such as wood panels, MDF, and plywood.
Features
- The linear auto tool magazine holds 8 tools, and the Italy HSD air-cooled spindle enables fast and automatic tool changing.
- The ATC spindle can swing 180 degrees, allowing more complex 3D wood carving compared with a basic 3-axis CNC router.
- It features thoughtful and safe designs, including a dust collection system, automatic lubrication system, and T-slot & vacuum working table.
- Router cutting has a lower cutting speed but supports more complex cutting paths compared with traditional wood cutting machines.
Parameters
| Model | ELECNC2030ATC-4A |
| X,Y axis travel | 2000*3000mm, option: 1300*2500mm; 1500*3000mm; 2000*4000mm, etc. |
| Z axis travel | 400mm, option: 500mm, 600mm, etc. |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| The 4th axis | Spindle swing from -90° to +90° |
| Tool magazine | Linear type auto tool changer Option: Carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC / LNC controller |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor, 4 sets. Option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 7 pieces (X3,Y4) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan / Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Powermill, UG, Alphacam, Fusion 360, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | ≥0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/60HZ |
Optional Items
| Vacuum pump |
Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc. |
| Rotary device | Industrial-grade rotary device support, diameter 200mm, 300mm |
4 Axis ATC CNC Router Optional Parts
What Can a 2030 4 Axis ATC CNC Router Machine Process?
Wood Furniture
Used for kitchen cabinet, wardrobes, customized furniture, and other furniture components.
Door Making
Precisely processes relief carvings, curved surfaces, and complex 3D shapes for decorative art.
3D Sculpture
Produces accurate furniture parts for desks, shelves, and office interiors.
Musical Instruments
For cutting and shaping guitar bodies, violin components, and other musical instrument parts.
FAQs
A 2030 4 axis ATC CNC router adds a swinging axis compared with a traditional 3 axis CNC router. This additional axis allows the spindle to tilt and machine angled surfaces, side grooves, curved structures, and more complex 3D shapes without manually repositioning the workpiece.
For woodworking applications, a 4 axis CNC router is especially suitable for furniture components, curved panels, sculptures, molds, and complex decorative parts where a 3 axis machine may require multiple setups.
Yes. The 2000*3000mm working area is suitable for large furniture panels and commercial woodworking production.
With ATC technology, operators can automatically change cutting tools for processes such as rough cutting, fine carving, grooving, and edge shaping, improving production efficiency for furniture manufacturers.
A 4 axis CNC router is a practical choice for most woodworking applications requiring angled cutting and 3D carving.
A 5 axis CNC router is mainly used for highly complex aerospace, automotive, and advanced mold applications requiring simultaneous multi-direction machining.
For furniture, woodworking, advertising, and decorative industries, a 4 axis ATC CNC router often provides a better balance between capability and investment.
A 2030 4 axis ATC CNC router usually works with CAD/CAM software to create tool paths.
Common software options include:
ArtCAM
Aspire
Fusion 360
Type3
PowerMill
The generated G-code is transferred to the CNC controller for automatic machining.
Modern 4 axis ATC CNC routers are designed to simplify operation through CNC controllers, automatic tool changing, automatic lubrication, and positioning systems.
Beginners can learn basic operation through CNC training, while experienced operators can quickly optimize machining parameters for higher productivity.
