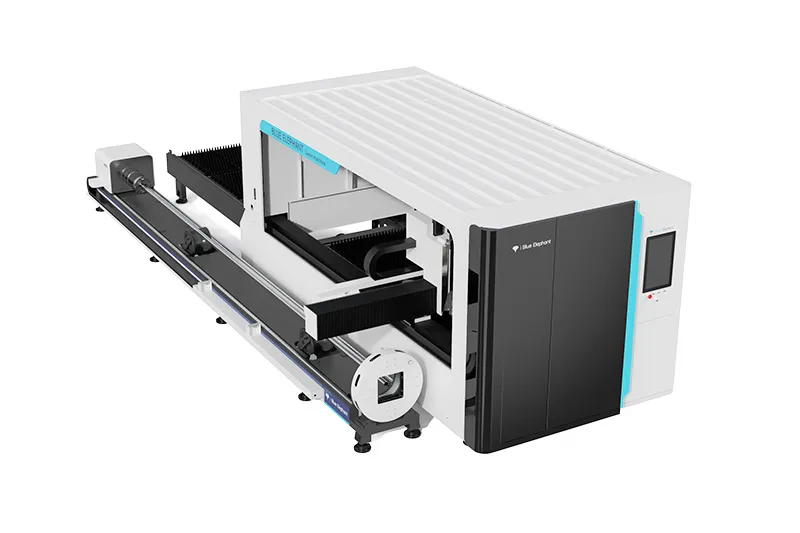

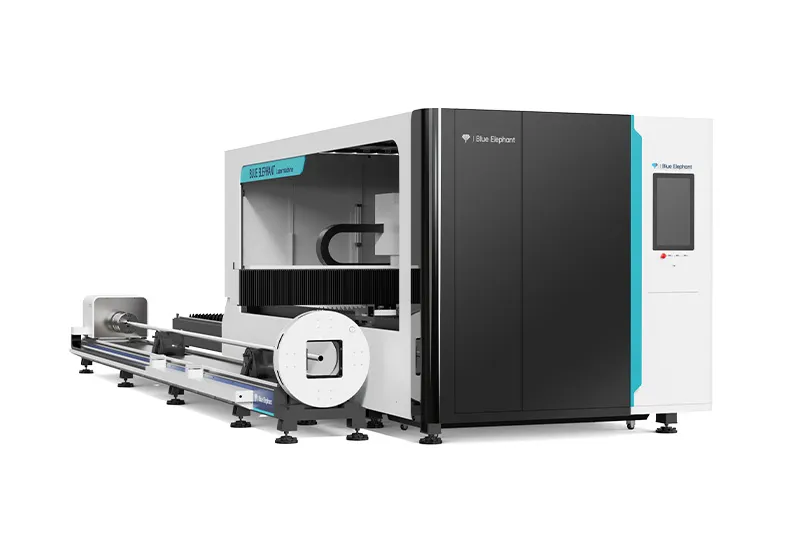

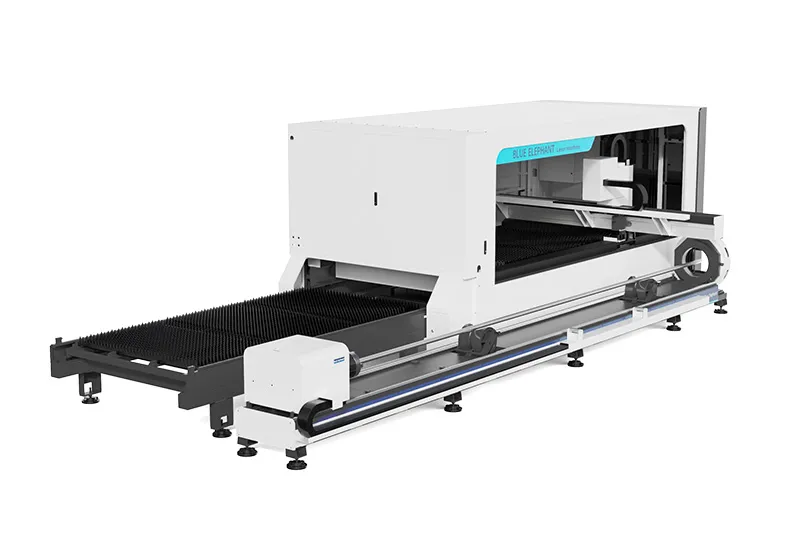

1530SL6T245-B Semi-enclosed Exchange Table Metal Sheet & Tube Laser Cutting Machine

(5.0 based on 82 ratings and reviews)

$60,000 – $80,000

Brand : Blue Elephant
Model : 1530SL6T
Standard : CE, ISO9001
Laser Power : 1kW – 6kW
Category : Fiber Laser Cutting Machine
Supply Ability : 360+ Units in Stock
After-sale Service : Free Lifetime Technical Support online, Overseas service.
Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)

Description

1530SL6T Semi-enclosed Exchange Table Metal Sheet and Tube Laser Cutting Machine features a semi-enclosed protective cover that meets the environmental protection requirements of certain users. This design not only enhances operator safety but also makes it easier to load and unload tubes. The observation window allows users to monitor the cutting process in real time. Additionally, the machine is built with high-quality components to deliver high cutting precision, fast processing speeds, and a long service life.

Features

The semi-enclosed cover effectively blocks smoke and dust, making it more eco-friendly.
The 15-second exchange table enables fast loading and unloading, boosting efficiency.
The lightweight aviation aluminum beam increases speed while ensuring precision.
The simple control system allows quick cutting of carbon steel, stainless steel, copper, aluminum, and galvanized sheets into desired shapes.

Parameters

Model	1530SL6T	2040SL6T	2560SL6T
Working area (mm)	1515*3030	2020*4040	2525*6050
Positioning accuracy	±0.03mm	±0.03mm	±0.03mm
Repositioning accuracy	±0.02mm	±0.02mm	±0.02mm
Max. exchange time	25s	30s	40s
Max. acceleration	1.5G	1.5G	1.5G
Laser power	1kW – 6kW	1kW – 6kW	1kW – 6kW
Laser	Multiple options	Multiple options	Multiple options
Focusing method	Auto focusing	Auto focusing	Auto focusing
Machine bed	Tube welded bed	Tube welded bed	Tube welded bed
Max. running speed	140m/min	140m/min	140m/min

Fiber Laser Cutting Machine Optional Parts

Application

Therefore, with the above processing advantages, this type of laser cutter machine is widely used in advertising sign production, sheet metal structure, high and low voltage electrical cabinet production, textile machinery parts, kitchenware, automobiles, machinery, elevators, electrical parts, spring sheets, subway parts, etc.
