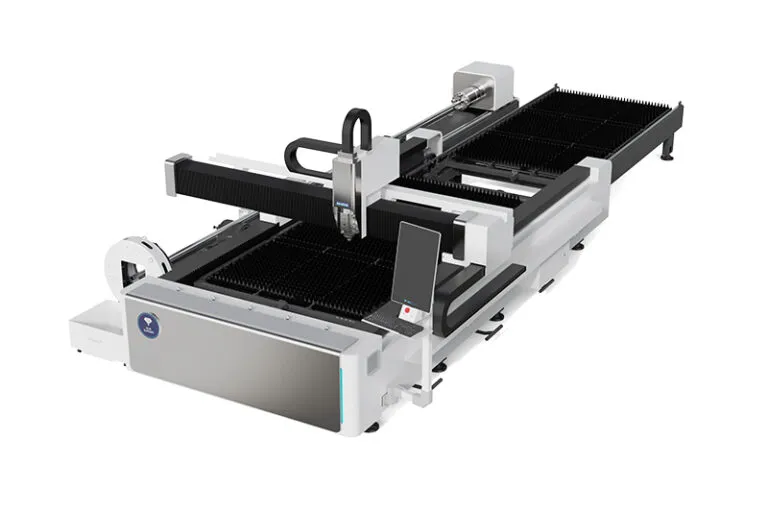

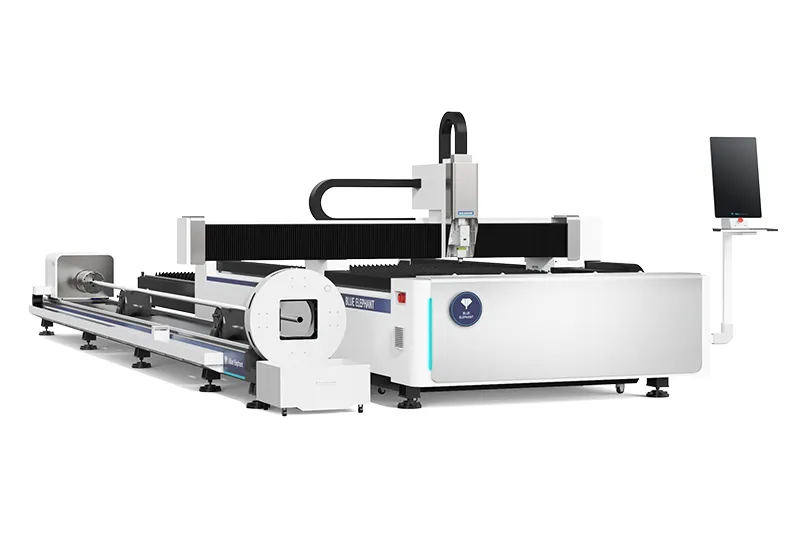

1530SL6T245-B Semi-enclosed Exchange Table Metal Sheet & Tube Laser Cutting Machine
$20,000 – $40,000
- Brand : Blue Elephant
- Model : ELECNC-1530ET
- Standard : CE, ISO9001
- Laser Power : 1kW – 6kW
- Category : Fiber Laser Cutting Machine
- Supply Ability : 420+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
Description
1530ET metal sheet and pipe fiber laser cutting machine is a dual-use machine with an exchange platform. It can cut both metal sheets and tubes, realizing two functions in one machine. Besides, the two worktables also help increase the working efficiency by 50%.
Features
- One machine with dual functions, saving cost
It can cut both metal sheets and pipes. Besides, the two-in-one design saves a lot of floor area and improve work efficiency greatly. - Automatic exchange platform
Two platforms can exchange automatically with the exchanging time of 20s to 25s, which improve work efficiency greatly. - Aircraft-grade aluminum beam
Aircraft-grade aluminum beam is corrosion resistant, lightweight and highly rigid, guaranteeing high speed laser cutting. Besides, it also guarantee the excellent cutting precision due to the perfect dynamic performance such as anti-twisting, anti-tilting and anti-deformation. - Independent control cabinet
All electrical components and laser sources are built into a separate control cabinet to prevent dust buildup. Besides, the control cabinet is equipped with automatic thermostatic air conditioning. This prevents damage to components from high summer temperatures. - ntegrated large volume dust removal system
The dust removal system can remove all the smoke generated from the cutting process with large air volume. This helps protect the operator’s health and the working environment.
Parameters
| Model | ELECNC-1530ET | ELECNC-1540ET | ELECNC-2040FT |
| Working area (mm) | 1515*3030 | 1515*4040 | 2020*4050 |
| Worktable bearing capacity | 800kg | 1100kg | 1300kg |
| Max. acceleration | 1.5G | 1.5G | 1.5G |
| Positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Repositioning accuracy | ±0.02mm | ±0.02mm | ±0.02mm |
| Pipe section shape | Round/square/rectangular | Round/square/rectangular | Round/square/rectangular |
| Max. length of pipe | 3m/6m | 3m/6m | 3m/6m |
| Laser power | 1kW – 6kW | 1kW – 6kW | 1kW – 6kW |
| Laser | Multiple options | Multiple options | Multiple options |
| Max. running speed | 140m/min | 140m/min | 140m/min |
Application
Fiber laser cutting machines provide large and small companies with economical and affordable laser cutting capabilities for metals. For example, stainless steel, carbon steel, galvanized, aluminum, etc. Therefore, the company has a good opportunity to laser cut highly complex metal parts, prototypes and custom parts in a cost-effective manner internally.
