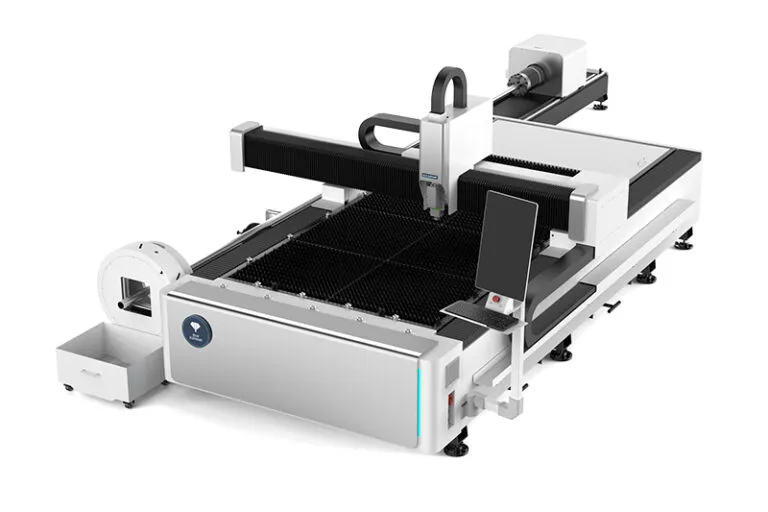

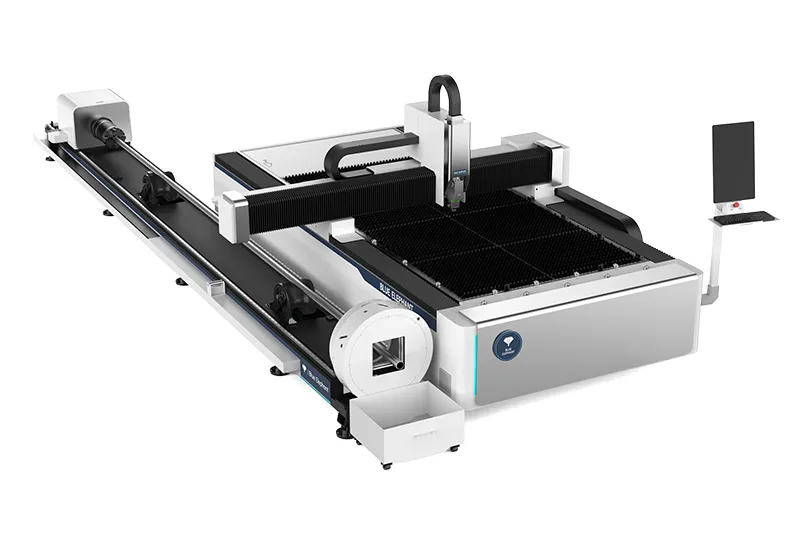

1530FL6T Tube & Sheet Metal Laser Cutting Machine
- Brand : Blue Elephant
- Model : 1530FL6T
- Standard : CE, ISO9001
- Laser Power : 1kW – 2kW
- Category : Fiber Laser Cutting Machine
- Supply Ability : 400+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
Description
1530FL6T tube & sheet metal laser cutting machine is capable of processing both metal sheets and metal tube. It supports pipe lengths of either 3 meters or 6 meters. The fiber laser cutter features a heavy-duty cast iron bed that remains deformation-free for 20 years, along with an aviation-grade aluminum beam and fully automatic dual pneumatic chucks for stable operation.
Features
- This fiber laser cutting machine is equipped with a high-capacity integrated dust extraction system for efficient fume removal.
- It utilizes world-class components such as precision guide rails and racks to ensure exceptional cutting accuracy.
- The dedicated CNC tube cutting system is user-friendly, easy to operate, and simple to maintain.
- The welded tube bed structure offers high strength, excellent stability, and strong tensile resistance, ensuring long-term durability and consistent performance.
- Aerospace-grade aluminum is produced to aviation standards using a 4,300-ton extrusion press, reaching a T6 hardness level after processing.
Parameters
| Model | ELECNC-1325FL6T | ELECNC-1530FL6T |
| Machine size | 4470*2035*1950mm | 4735*2251*1950mm |
| Working area | 1310*2520mm | 1515*3030mm |
| Positioning accuracy | ±0.03mm | ±0.03mm |
| Repositioning accuracy | ±0.02mm | ±0.02mm |
| Max. acceleration | 1.2G | 1.2G |
| Laser power | 1kW – 2kW | 1kW – 2kW |
| Laser | Multiple options | Multiple options |
| Focusing method | Auto/manual | Auto/manual |
| Max. running speed | 140m/min | 140m/min |
Fiber Laser Cutting Machine Optional Parts
Application
1530FL6T tube & sheet metal laser cutting machine can process both metal sheets and tubes. It is widely used in industries such as automotive parts, robotics, aerospace, shipbuilding, home appliances, metal tools, construction and agricultural machinery, metal decoration, furniture, kitchen equipment, and fitness equipment.
FAQ
It is mainly used to cut stainless steel and carbon steel tubes and pipes.
We provide fiber laser cutters with the laser power of 1kW to 2kW. But we can also offer high power laser based on customers’ demands.
The maximum running speed of this machine can reach 140m/min.
