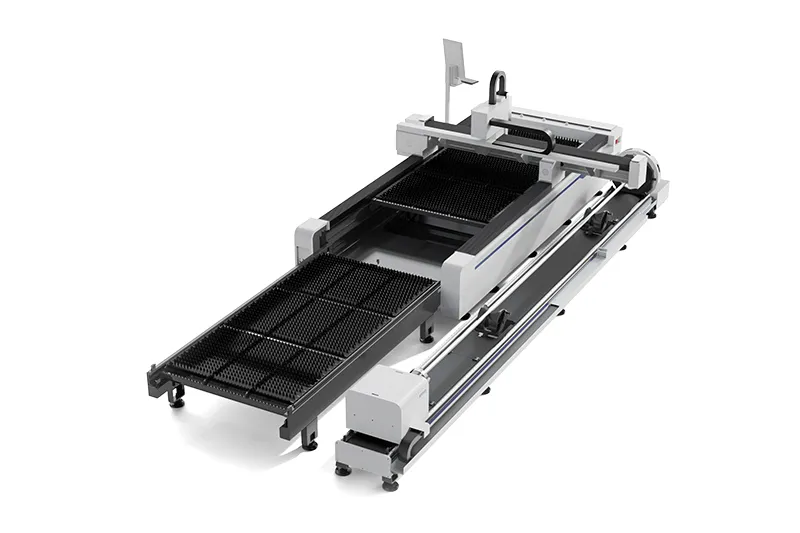

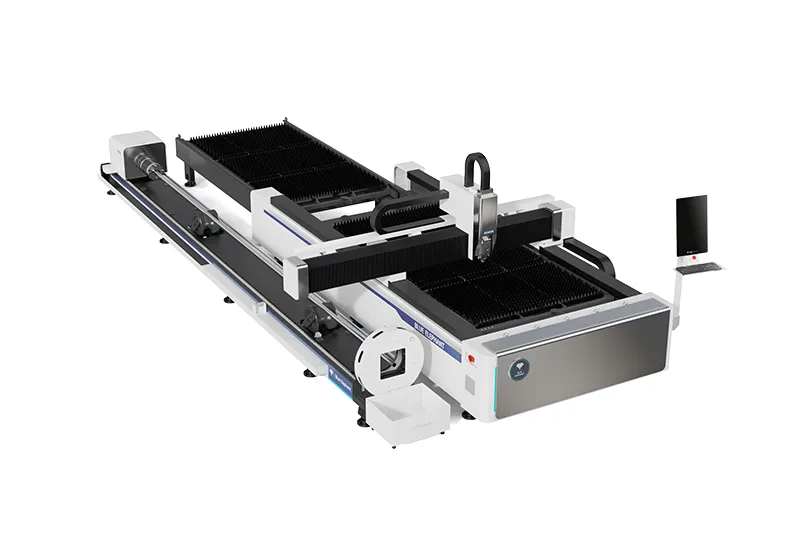

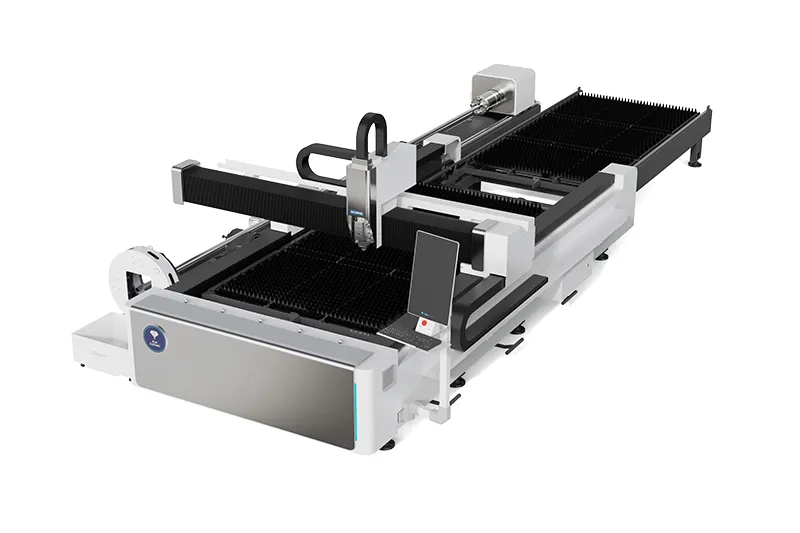

1530EL6T Tube and Sheet Fiber Laser Cutting Machine

(4.9 based on 125 ratings and reviews)

$20,000 – $40,000

Brand : Blue Elephant
Model : 1530EL6T
Standard : CE, ISO9001
Laser Power : 1kW – 6kW
Category : Fiber Laser Cutting Machine
Supply Ability : 360+ Units in Stock
After-sale Service : Free Lifetime Technical Support online, Overseas service.
Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)

Description

1530EL6T tube and sheet fiber laser cutting machine handles both metal sheets and tubes, saving cost and space. It supports 3m or 6m tube lengths, features a heavy-duty cast iron bed that resists deformation for 20 years, and an aviation aluminum beam for stable operation. Its fully automatic dual-start chuck is strong and durable, and imported transmission components ensure high precision.

Features

A single machine handles two tasks, offering both sheet and tube metal processing in one unit.
Cutting precision is ensured through the use of world-class components, including premium guide rails and racks.
The CNC pipe cutting system is professionally designed for straightforward operation and easy maintenance.
Equipped with an integrated, high-capacity dust removal system for efficient debris extraction.
High-end imported parts deliver strong cutting performance and efficiency, while maintaining exceptional accuracy and stable operation.

Parameters

Model	1530ELT	1540ELT	2040ELT
Working area (mm)	1515*3030	1515*4040	2020*4050
Worktable bearing capacity	800kg	1300kg	2000kg
Max. acceleration	1.5G	1.5G	1.5G
Positioning accuracy	±0.03mm	±0.03mm	±0.03mm
Repositioning accuracy	±0.02mm	±0.02mm	±0.02mm
Pipe section shape	Round/square/rectangular	Round/square/rectangular	Round/square/rectangular
Max. length of pipe	3m/6m	3m/6m	3m/6m
Laser power	1kW – 6kW	1kW – 6kW	1kW – 6kW
Laser	Multiple options	Multiple options	Multiple options
Max. running speed	140m/min	140m/min	140m/min

Fiber Laser Cutting Machine Optional Parts

Application

The tube and sheet fiber laser cutting machines can cut a wide range of metals, even though highly reflective metals. For instance, carbon steel, stainless steel, aluminum, copper, brass, titanium, nickel, and various alloys. The fiber laser cutting machine has extensive applications in decoration, infrastructure, construction, microelectronic, advertising, kitchen appliance, automobile and other equipment manufacturing, and other industries.
