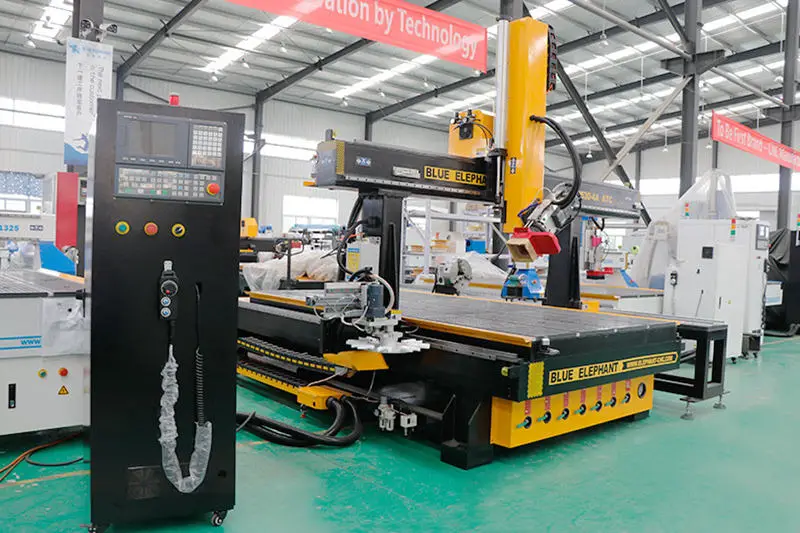

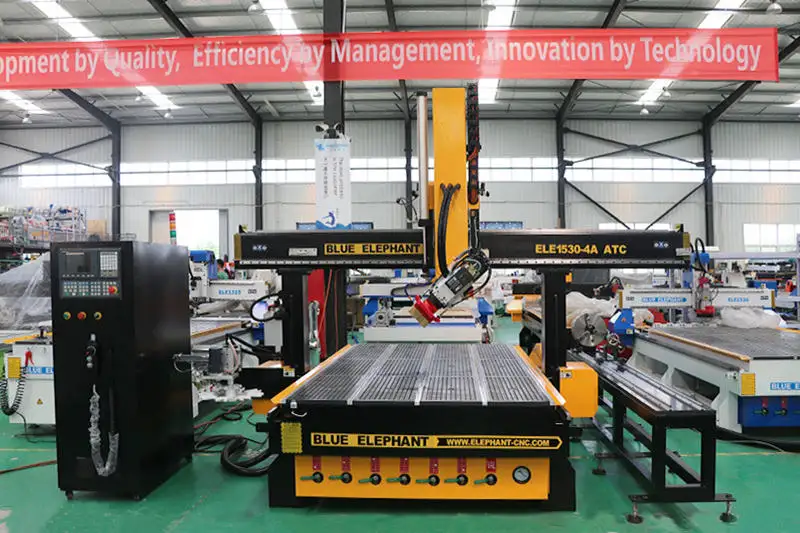

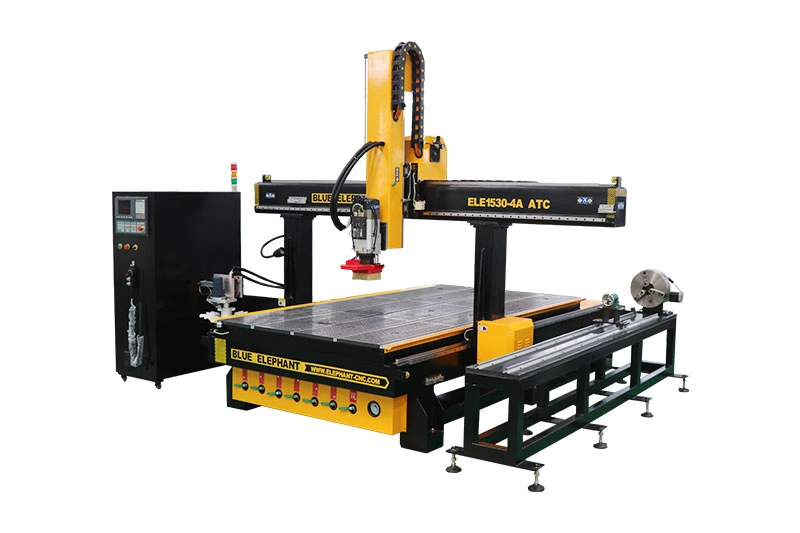

1530ATC-4A CNC Router with Rotary Device
- Brand: Blue Elephant
- Model: ELECNC-1530
- Standard: CE, ISO9001
- Table size: 1500mm*3000mm (5′ × 10′)
- Category: ATC CNC Router
- Supply Ability: 400+ Units in Stock
- After-sale Service: Free Lifetime Technical Support online, Overseas service.
- Payment Terms: Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty: 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description
ELECNC-1530 5×10 ATC CNC router with rotary device is a combination of 4 axis CNC, ATC CNC and rotary device for wood carving and engraving. The automatic tool change function greatly saves manual tool changing time and increases work efficiency.
Features
- The HSD air-cooled spindle can swing 180 degrees, with a maximum spindle speed of up to 24000RPM for complex machining tasks.
- The carousel-type tool magazine holds 8 tools and performs automatic tool changes during the engraving process, improving machining efficiency.
- This ATC CNC router is ideal for manufacturing cabinet doors, wooden doors, solid wood furniture, panel furniture, windows, tables, chairs, and other woodworking products.
- The large working table and processing area enable higher productivity and accommodate larger workpieces.
- The removable rotary device saves workspace and provides greater flexibility for processing cylindrical workpieces when needed.
Parameters
| Model | ELECNC1530ATC-4A |
| X,Y axis travel | 1500*3000mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc. |
| Z axis travel | 400mm, option: 500mm, 600mm, 700mm, etc. |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| The 4th axis | Cycloidal pin wheel precision reducer with high transmission accuracy and torsional stiffness. Can swing from -90° to +90°. |
| Tool magazine | Carousel type auto tool changer Option: Linear type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC controller |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor, 4 sets. Option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |

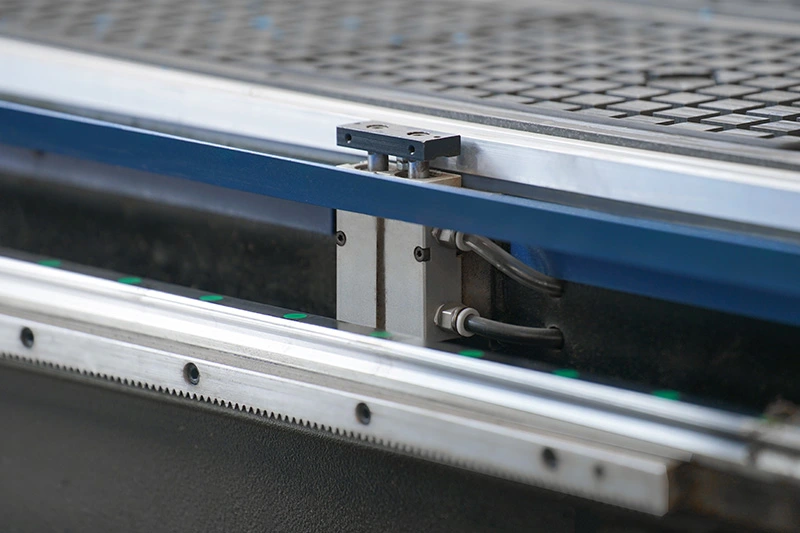

| Positioning cylinder | Option: 5 pieces (X2, Y3) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool Calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible Software | Powermill, UG, Alphacam, Fusion 360, etc. |
| Command Language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working Accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/60HZ |
Optional Items
| Vacuum pump |
Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air Compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc. |
| Rotary device | Industrial-grade rotary device support, diameter 200mm, 320mm. |
ATC CNC Router Optional Parts
Application

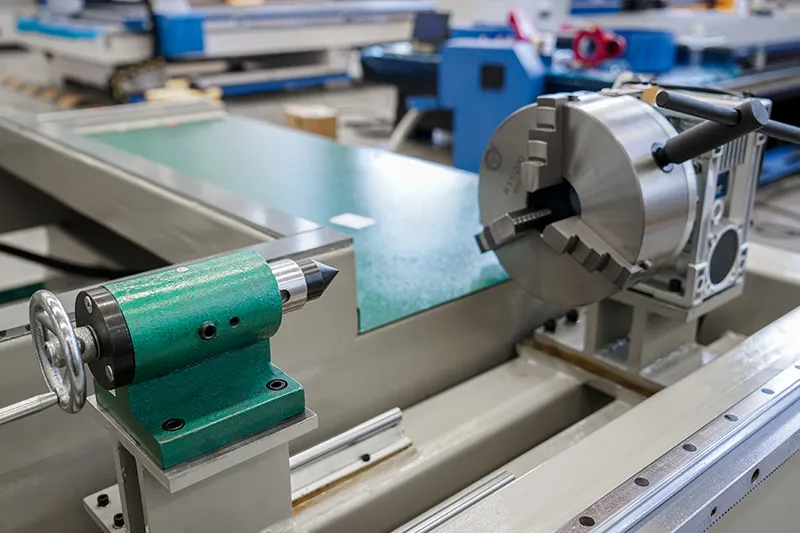

The rotary axis CNC router has a rotary device installed along whether the X-axis or the Y-axis. It is very suitable for engrave cylindrical workpieces, such as building columns, stair handrails, table and chair legs, and other circle or cylindrical parts. Besides, based on the spindle the rotary axis CNC router adopts, it can achieve different processes. If a rotating spindle is installed, this rotary axis CNC router can complete all the work that a 4 axis CNC router can do, like processing 3D workpieces. However, if the rotary axis CNC router adopts an ordinary spindle that cannot rotate, it can also realize the 2D cutting and engraving work.
FAQs
We supply Powermill/UG software with post processor free of charge. The post processor has the RTCP function, which means that it has a cutting tool compensation setting.
In general, the Z axis travel for a 4 axis CNC router machine is 400mm. Of course, we can customize it according to your requests, such as 600mm.
Yes, of course. But at present we don’t have fusion 360 post processor which supports the 4 axis CNC router machine. We are sorry for this. If you can find Fusion 360 post processor by yourself, you can use it on our machine.
