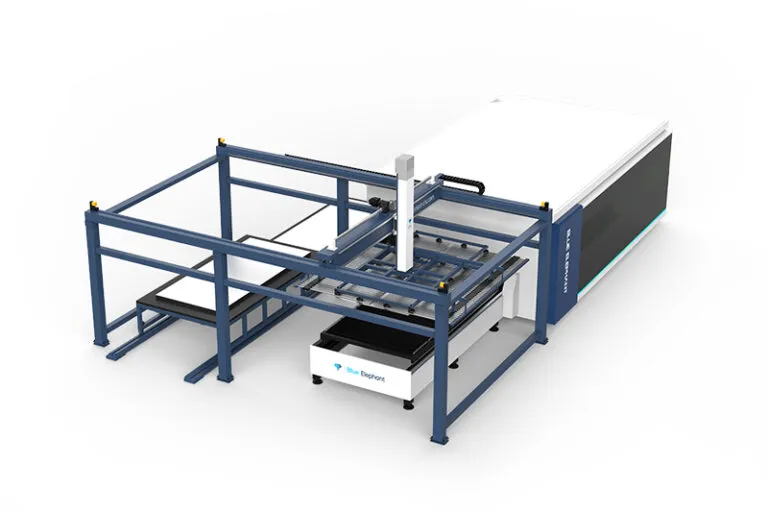

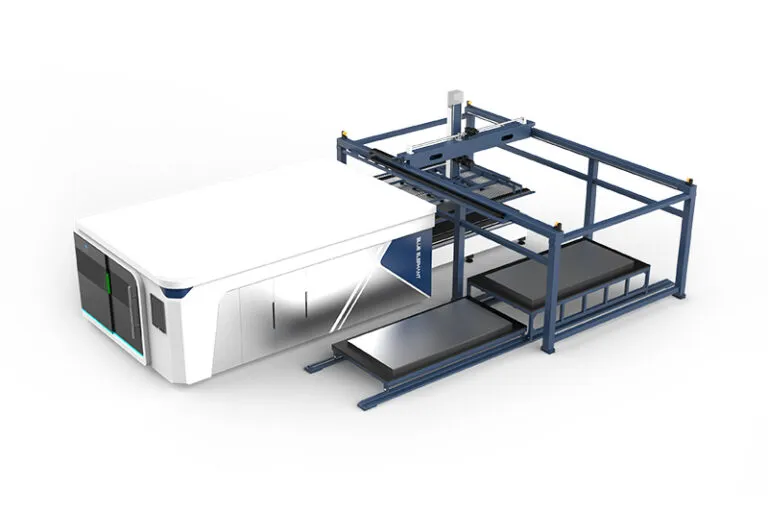

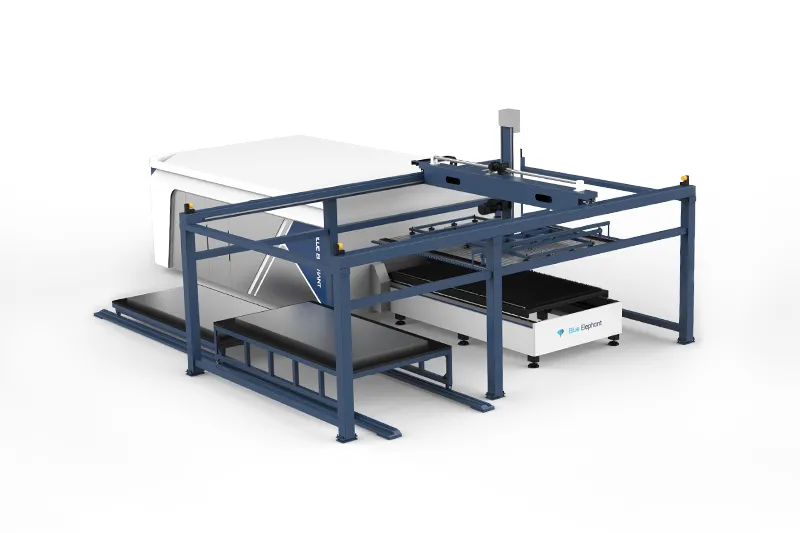

1530AS Laser Cutting Machine with Loading and Unloading System
$55,000 – $95,000
- Brand : Blue Elephant
- Model : ELECNC-1530AS
- Standard : CE, ISO9001
- Laser Power : 1kW – 4kW
- Category : Fiber Laser Cutting Machine
- Supply Ability : 350+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
Description
1530AS laser cutting machine adopts an enclosed protective cover and additional automatic loading and unloading equipment. This ensures the safety of the sheet metal cutting and protects the environment. The loading and unloading equipment significantly improves working efficiency.
Features
- Automatic loading & unloading system
The whole production process realizes fully automatic operation to ensure the process is unattended. It is equipped with trays for both raw materials and finished products, meeting requirements of all large, medium, and small sheet cutting. - Fully enclosed protection cover
The fully enclosed design improves the production safety. It has a smoke purification system to avoid environmental pollution and protect the health of operators. - Automatic exchange platform
Two platforms can exchange automatically with the exchanging time of 20s to 25s, which improve work efficiency greatly. - Intelligent automatic focusing laser head
The automatic focusing method of the laser head reduces human interference, with a focusing speed of 10m/min and a repeatable positioning accuracy of 50um. - Staggered blade worktable
The blade worktable is arranged in a staggered form, which can hold the metal sheet steadily.
Parameters
| Model | ELECNC-1530AS | ELECNC-2040AS | ELECNC-2060AS |
| Working area | 1515*3030mm | 2020*4040mm | 2020*6050mm |
| Positioning accuracy | ±0.05mm | ±0.05mm | ±0.05mm |
| Repositioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Min. sheet thickness | 1mm | 1mm | 1mm |
| Max. acceleration | 1.5G | 1.5G | 1.5G |
| X axis speed | 25m/min | 25m/min | 25m/min |
| Z axis speed | 20m/min | 20m/min | 20m/min |
| Laser power | 1kW – 4kW | 1kW – 4kW | 1kW – 4kW |
| Laser | Multiple options | Multiple options | Multiple options |
| Machine bed | Sheet welded bed | Sheet welded bed | Sheet welded bed |
| Max. runing speed | 140m/min | 140m/min | 140m/min |
Application
Therefore, with the above processing advantages, this type of laser cutter machine is widely used in advertising sign production, sheet metal structure, high and low voltage electrical cabinet production, textile machinery parts, kitchenware, automobiles, machinery, elevators, electrical parts, spring sheets, subway parts, etc.
