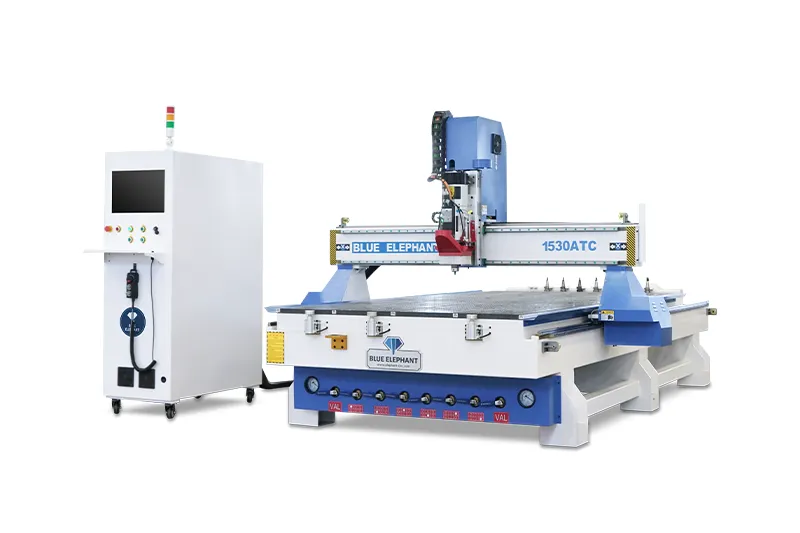

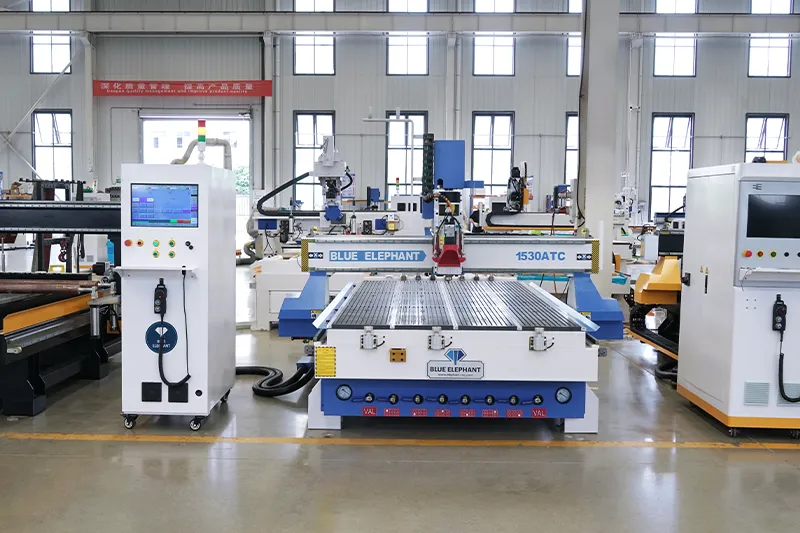

1530 Linear ATC CNC Router
- Brand: Blue Elephant
- Model: ELECNC-1530ATC
- Standard: CE, ISO9001
- Table Size: 1500 mm × 3000 mm (5′ × 10′)
- Category: ATC CNC Router>
- Supply Ability: 500+ Units in Stock
- After-Sale Service: Free lifetime technical support online, overseas service.
- Payment Terms: Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty: 12-month limited warranty for the entire machine (extended warranties available for major parts).
Description
The 1530 Linear ATC CNC Router is a high-performance woodworking machine designed for professional furniture manufacturing, cabinet making, and panel processing. Featuring a 1500×3000mm working area, automatic tool changer, powerful spindle, and rigid machine structure, it delivers fast, precise, and stable machining for MDF, plywood, solid wood, and other materials. With high automation and excellent cutting efficiency, it is an ideal solution for improving productivity and reducing labor costs in modern woodworking production.
Features

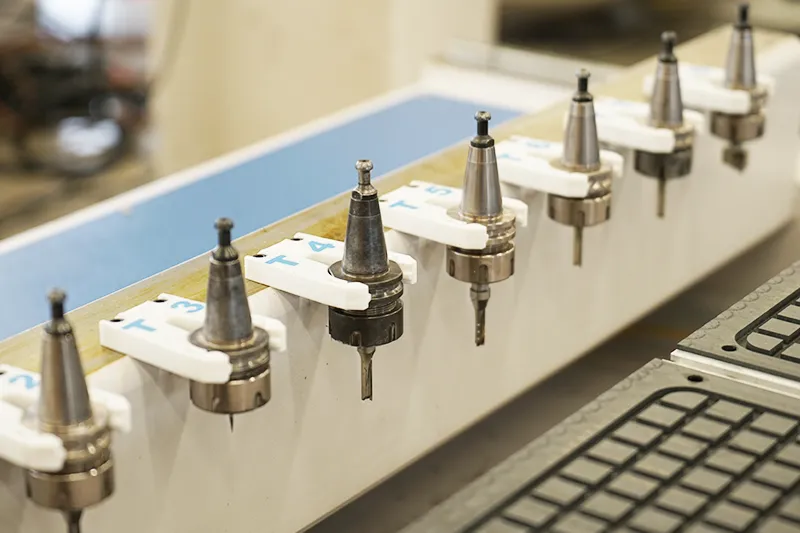

- Linear tool changer magazine manages more than 8 sets of tools automatically in the engraving process.
- Rotary device optional is specially for cylindrical workpieces such as chair frames, stair frames, Roman-style columns, and others.
- The working size can be customized according to customers’ demands, which can greatly promote the efficiency of processing.
- All the specifications can be customized according to your own requirements.
Parameters
| Model | ELECNC1530ATC |
| X,Y Axis Travel | 1500 × 3000 mm, option: 1300 × 2500 mm; 2100 × 3000 mm; 2100 × 4000 mm, etc. |
| Z Axis Travel | 200 mm, option: 300 mm, 400 mm, etc. |
| Spindle Type | 9 kW HSD ES-951 ATC air cooling spindle, ISO30, ER32 |
| Inverter Type | 11 kW Delta inverter |
| Tool Magazine | Linear type auto tool changer |
| Tool Holder with Collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control System | Taiwan SYNTEC 60WE |
| Driving System | 1000 W Japan YASKAWA AC servo driver and 850 W AC servo motor, 4 sets |
| Reducer | Japan SHIMPO reducer |
| Machine Structure | Heavy-duty body with quenching treatment |
| Work Table | Aluminum T-slot & vacuum work table |
| Positioning Cylinder | 5 pieces (X2, Y3) |
| Linear Guide | Taiwan 25# linear guide |
| Transmission | X, Y axis: Taiwan/Germany helical rack and pinion Z axis: Taiwan TBI high-precision ball screw |

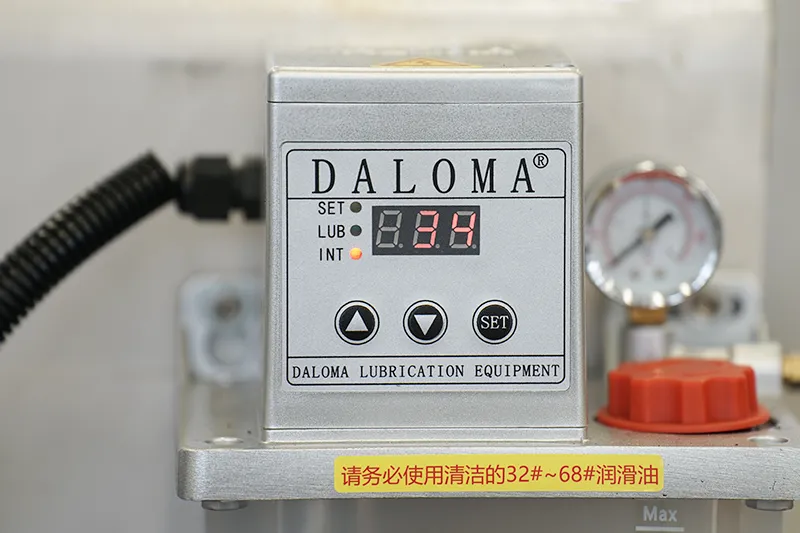

| Lubrication System | 1.5 L automatic lubrication system |
| Tool Calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible Software | ARTCAM and Aspire |
| Command Language | G Code |
| Traveling Speed | 80 m/min |
| Working Speed | 0–25 m/min |
| Re-positioning Accuracy | ±0.03 mm |
| System Resolution | ±0.0025 mm |
| Working Accuracy | ±0.03 mm |
| Working Air Pressure | 0.6 MPa |
| Working Voltage | 220 V 1PH/3PH 50 Hz/60 Hz 380 V 3PH 50 Hz/60 Hz |
Optional Items
| Vacuum Pump |
|
| Dust Collection System |
|
| Air Compressor | Piston air compressor, screw air compressor |
| Protection Device | Light curtain |
| Spindle Type | HSD 9 kW ATC spindle (HSK F63), 12 kW (ISO30, HSK F63), etc. |
| Rotary Device | Industrial-grade rotary device support, diameter 200 mm, 300 mm |
ATC CNC Router Optional Parts
Application
ATC CNC routers have a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. Regarding to materials, ATC CNC router can process various wood materials, plastics, stone, soft metals and composites.
ATC CNC Router FAQ
The number of tools an ATC CNC router can hold depends on the selected tool magazine configuration. Common options include 6, 8, 12, or more tool positions. The suitable tool capacity depends on your production needs and the number of machining processes required for each product. Furniture manufacturers producing complex parts usually benefit from a larger tool magazine to reduce manual intervention and improve workflow efficiency.
An ATC CNC router can significantly reduce production time by eliminating frequent manual tool replacement. In multi-process woodworking applications, automatic tool changing allows cutting, drilling, and engraving operations to run continuously without operator interruption. The actual time savings depend on the product design and production volume, but manufacturers usually experience higher efficiency, shorter processing cycles, and improved daily output after upgrading to an ATC CNC router.
No, an ATC CNC router is designed to simplify the machining process and can be operated by beginners after proper training. Modern CNC routers use user-friendly CNC control systems and CAD/CAM software to convert designs into machining programs. Once operators understand basic processes such as tool setup, material positioning, and program operation, they can efficiently run an ATC CNC router for daily woodworking production.
Common upgrades for a 1530 ATC CNC router include additional tool positions, rotary axis systems, drilling units, automatic loading and unloading systems, and improved dust collection solutions. The best upgrade options depend on production goals and product requirements. Choosing a flexible CNC platform allows manufacturers to expand machine capabilities as their business grows.
Before purchasing an ATC CNC router, buyers should consider several factors, including working size, spindle power, tool changer capacity, machine structure, control system, drive system, and after-sales support. The right machine should match your production requirements, material types, and expected workload. For woodworking businesses, a stable structure, reliable components, and easy operation are essential for long-term production efficiency.
