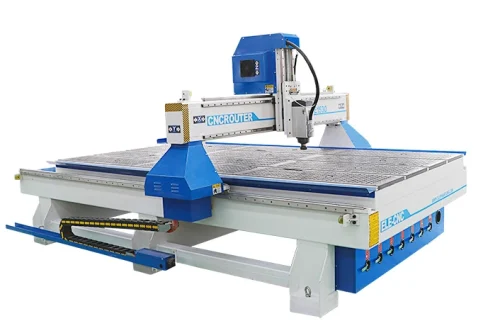

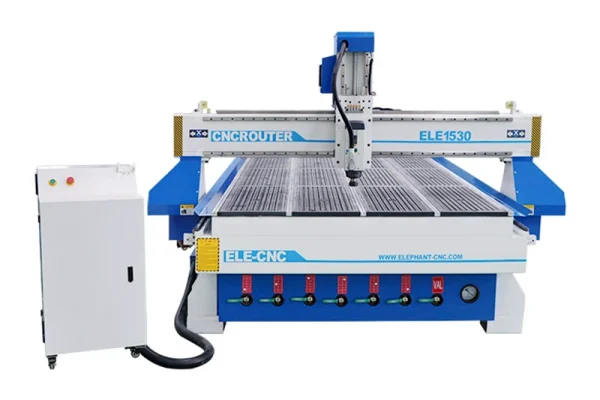

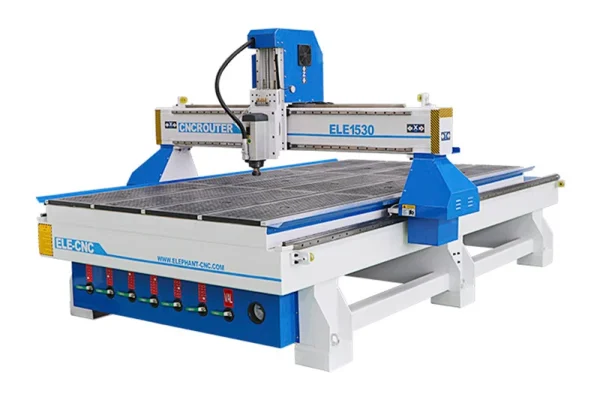

1530 Entry Level 3 Axis CNC Router Machine for Sale
- Brand : Blue Elephant
- Model : ELECNC-1530
- Standard : CE, ISO9001
- Table size : 1500mm*3000mm(5′ x 10′)
- Category : 3 Axis CNC Router
- Supply Ability : 500+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description
1530 entry level 3 Axis CNC router machine is used for cabinet door making with T-slot vacuum table. Table size 5x10ft is big enough for common Polywood or MDF Engravng & Cutting. It fixes the workpieces more firmly, saves time and improves production efficiency. CNC Wood Door Making machine is Equipped with original Italy HSD spindle, which ensures the CNC wood router have a high speed and quality.
Features
- 1530 entry level 3 Axis CNC router is equipped with original Italy HSD spindle, and it ensures the high speed and quality of this CNC wood router.
- With a heavy-duty frame and gantry, it makes the machine run more stably.
- Adopting Japan YASKAWA servo system, it makes the machine has a longer service life.
- Adopting DSP control system, and it is very easy to learn and operate.
Parameters
| Model | ELECNC1530 |
| X,Y axis travel | 1500*3000*200mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, etc. |
| Spindle type | 6kw HSD air cooling spindle, ER32 |
| Inverter type | 7.5kw DETLA inverter |
| Tool holder with collet | ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | DSP A11 Control system |
| Driving system | FL118 stepper motor and Leadshine 860H driver |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot&vacuum work table |
| Linear guide | Taiwan 25# Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | ARTCAM and Aspire |
| Command language | G Code |
| Traveling speed | 70-80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Optional Items
| Vacuum pump |
Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 4.5KW HQD, 6KW HQD air cooling |
| Control system | Mach3, Ncstudio |

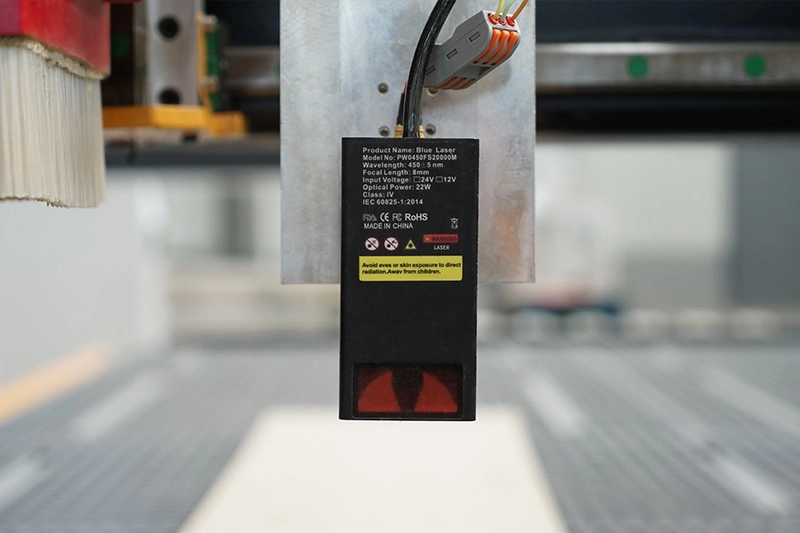

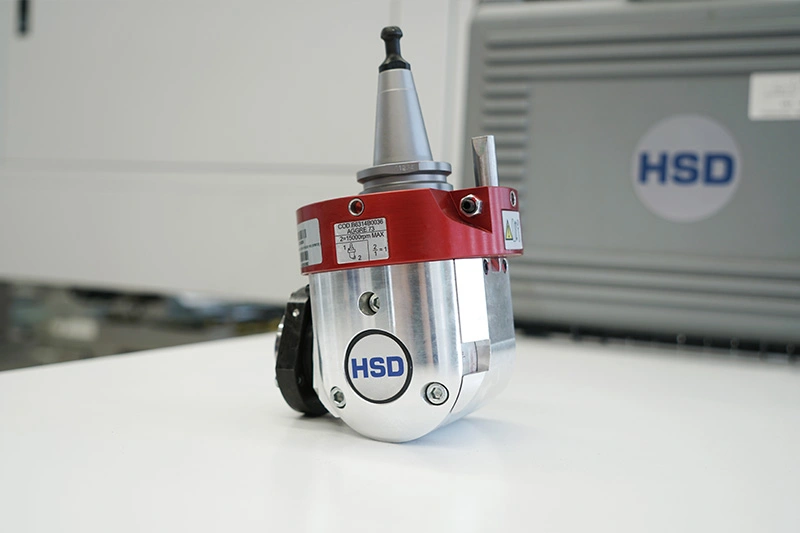

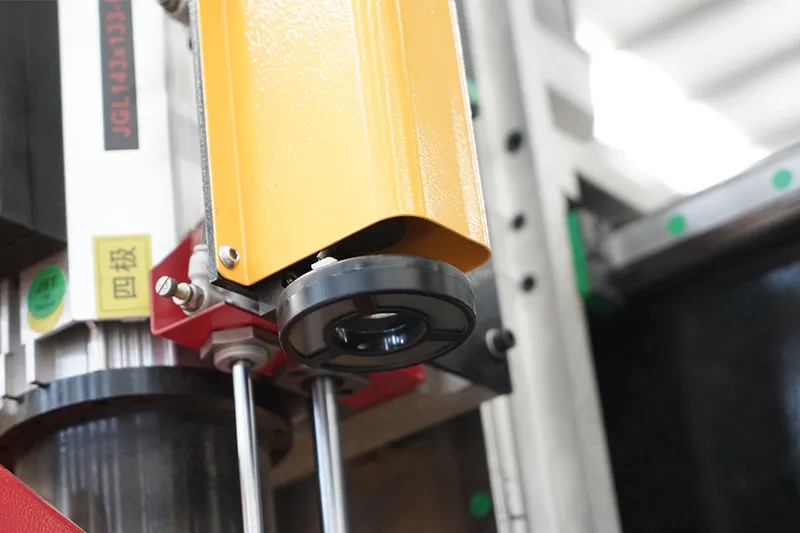

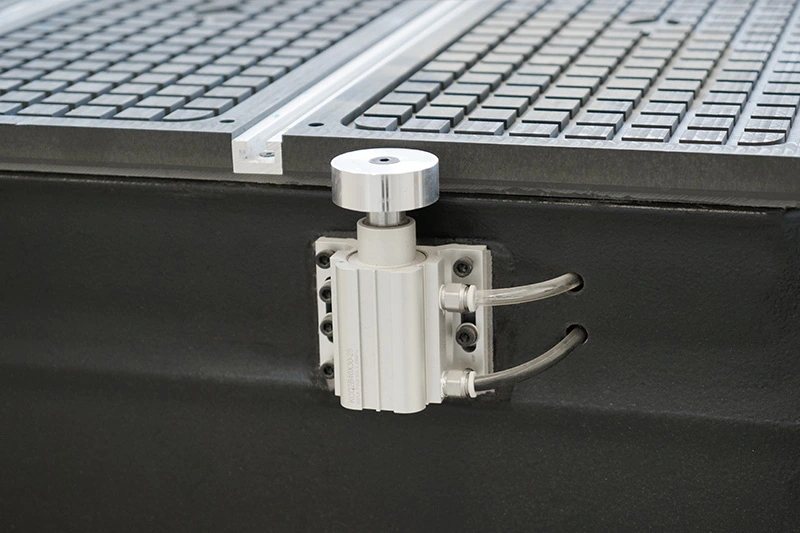

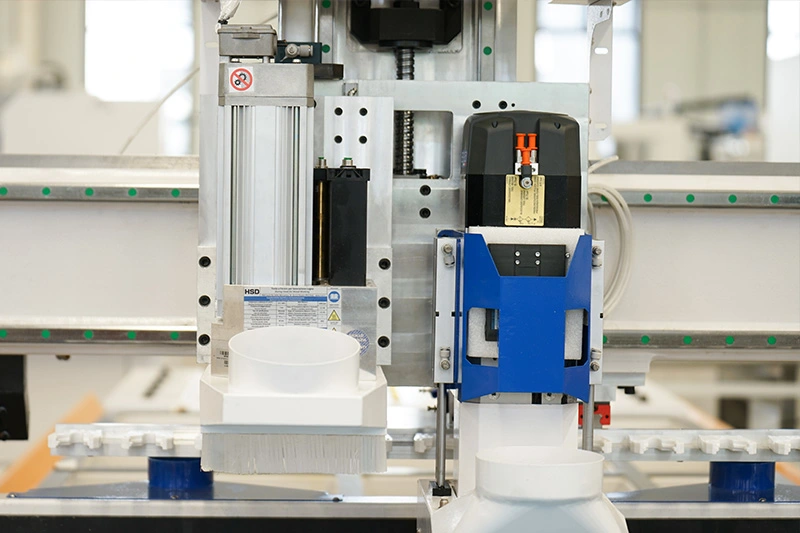

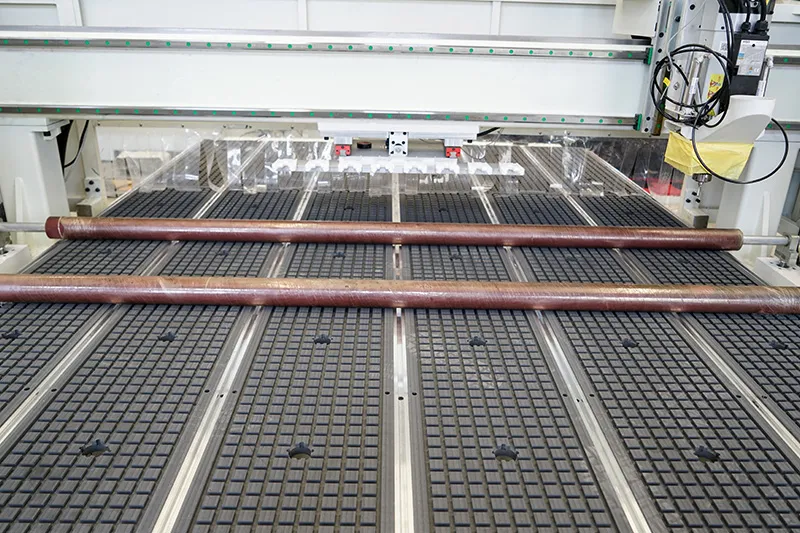

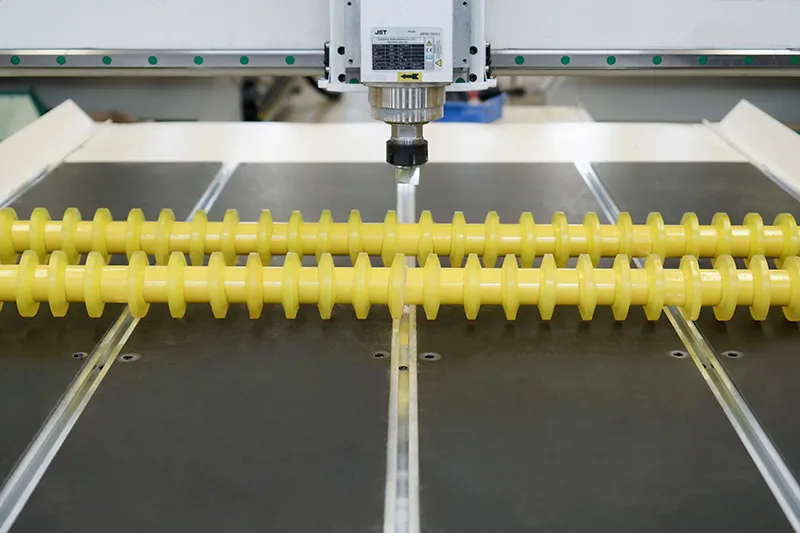

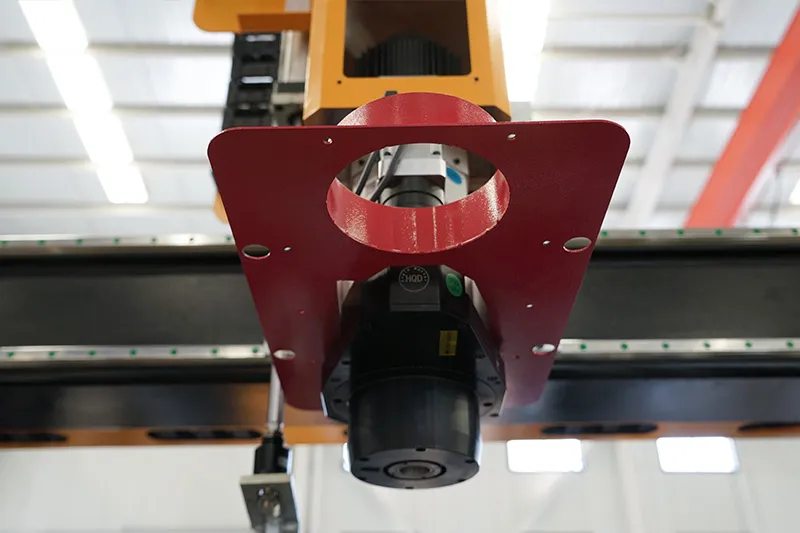

3 Axis CNC Router Optional Parts
Successful Application Examples
Cabinets and Wardrobes
Precision cutting and drilling for wardrobe panels, cabinet parts, and custom furniture production.
Kitchen Cabinets
Efficient machining of cabinet doors, panels, and slots for modular kitchen cabinet manufacturing.
Craft & Art Production
Fine carving and engraving of wood crafts, decorative patterns, and artistic panels.
Construction Industry
Processing decorative wall panels, partitions, and architectural interior materials.
Advertising Industry
Engraving and cutting acrylic, PVC, and aluminum composite panels for signage and displays.
Office Furniture
Accurate cutting of office desks, partitions, cabinets, and other panel furniture components.
Entry Level 3 Axis CNC Router FAQs
Routine maintenance for entry-level 3-axis wood CNC routers includes cleaning away dust and debris after use, checking electrical connections and belt or screw tension, and replacing worn milling bits.
Yes, an best entry-level CNC router can cut aluminum, but this is limited to light-duty applications; achieving good results requires using a single-flute carbide end mill and appropriate feed rates.
Entry-level 3 axis wood cnc routers can process various non-metallic materials—such as acrylic, wood, PVC, foam, and HDPE—as well as soft metals.
For entry-level cnc router 3 axis for sale: choose 300W–500W for light engraving; 800W–1.5kW for materials like wood; and 2.2kW for small-scale production and light aluminum machining.
When machining, you must wear safety glasses and hearing protection, keep your hands away from moving parts, know the location of the emergency stop button, and never leave the machine unattended.
Entry level 3 axis CNC routers are generally not equipped with automatic tool changers; tool changes usually have to be performed manually.
