1530 ATC Rotary Axis CNC Router for Sale

(4.9 based on 145 ratings and reviews)

$17,000 – $23,000
  • Brand: Blue Elephant
  • Model: ELECNC 1530ATC-R
  • Standard: CE, ISO9001
  • Table size: 1500mm*3000mm (5′ x 10′)
  • Category: ATC CNC Router
  • Supply Ability: 400+ Units in Stock
  • After-sale Service: Free Lifetime Technical Support online, Overseas service.
  • Payment Terms: Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
  • Warranty: 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)

Description

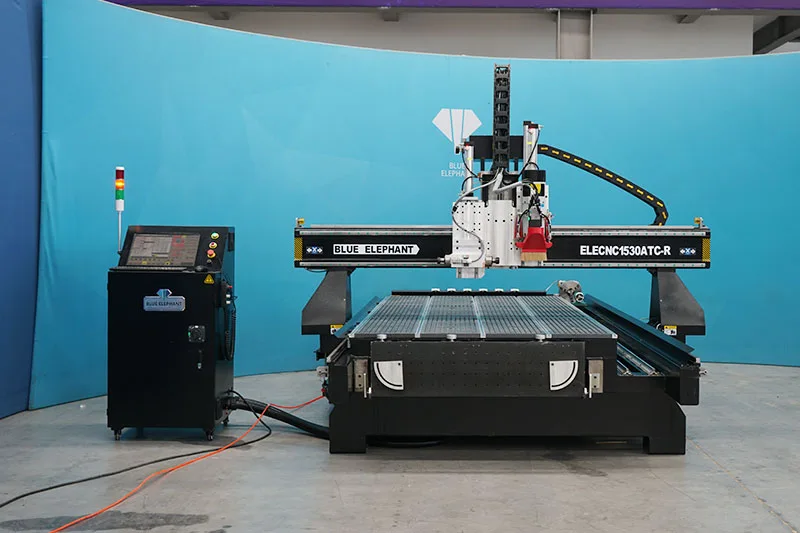

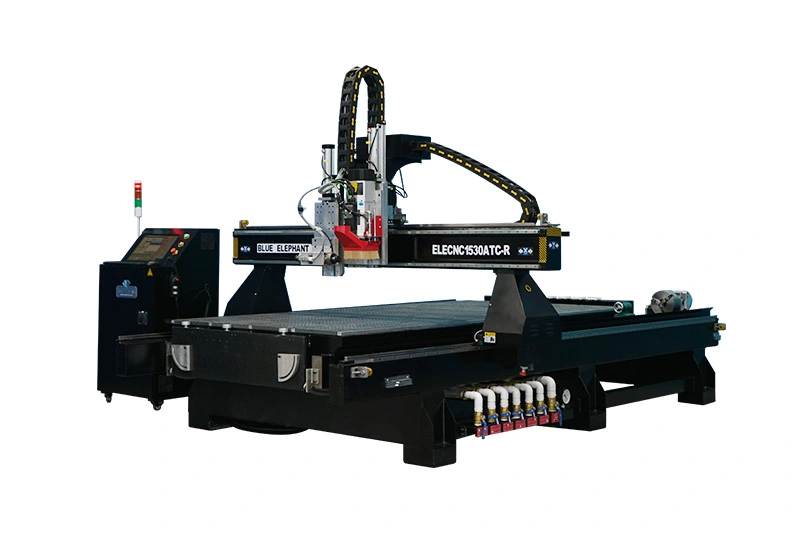

1530 ATC Rotary Axis CNC Router with a 1500x3000mm worktable. Equipped with a horizontal spindle and a rotary device, it can realize side punching and cylindrical carving in one operation. In addition, the automatic tool changing function reduces non-production time and improves work efficiency.

Features

  • The tooling can be used to process furniture with a tenon and mortise structure.
  • It adopts the LNC 2200 integrated control system with a handwheel operation method, which is easy and convenient to learn and operate.

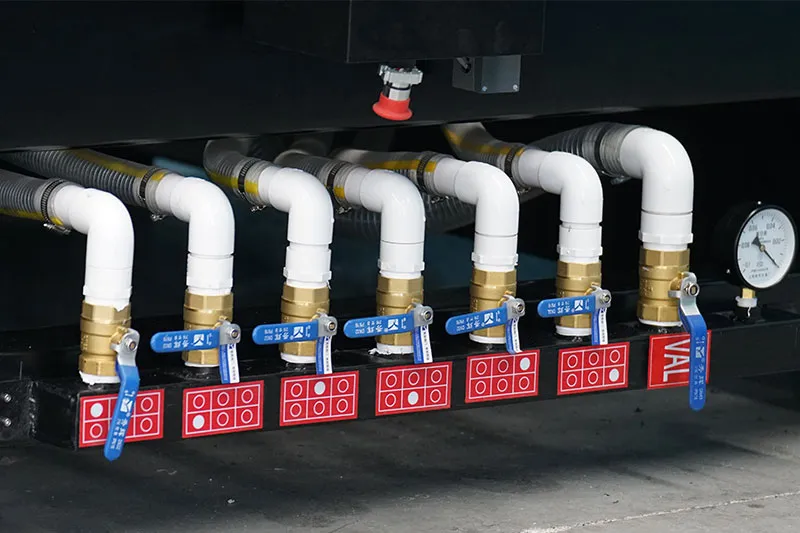

  • The 6-zone vacuum worktable provides strong adsorption capacity to firmly fix panels during processing. Each vacuum zone can be controlled independently through vacuum valves.
  • The rotary device is suitable for carving and engraving various cylindrical workpieces, such as table legs, chair legs, handrails, frames, pillars, statues, and more.
  • The horizontal spindle enables side slotting and drilling on panels, reducing labor requirements and improving work efficiency.

Parameters

Model ELECNC1530ATC-R
X, Y axis travel 1500*3000mm; Optional: 1300*2500mm, 2100*3000mm, 2100*4000mm, etc.
Z axis travel 200mm; Optional: 300mm, 400mm, 500mm, 600mm, etc.
Spindle type 9kw ATC air-cooled spindle, ISO30, ER32
Inverter type 11kw Fuling inverter
Tool magazine Linear type automatic tool changer
Optional: Carousel type automatic tool changer
Tool holder with collet ISO30, ER32 collet: φ4, φ6, 1/8, 1/2
Control system Taiwan LNC controller; Optional: Ncstudio, Syntec
Driving system 750W Leadshine servo motor and drivers, 4 sets; Optional: 850W Leadshine, 850W Yaskawa
Reducer Japan SHIMPO reducer
Machine structure Heavy-duty body with quenching treatment
Work table Aluminum T-slot & vacuum work table
Positioning cylinder 7 pieces (X3, Y4)
Linear guide Taiwan linear guide rail #25
Transmission X, Y axis: Taiwan / Germany helical rack and pinion
Z axis: Taiwan TBI high-precision ball screw
Lubrication system 1.5L automatic lubrication system
Tool calibration Automatic tool sensor calibration
Cables Germany Igus cables with CE and cUL certificates
Compatible software Artcam, Alphcam, Type 3, Ucancam, Aspire, etc.
Command language G Code & M Code
Traveling speed 60m/min
Working speed 0-20m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.03mm
Working air pressure 0.6MPa
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/60HZ

Optional Items

Vacuum pump
  1. Water circulation
  2. Ring blower
  3. Rotary vane, oil-free

Tongyou, Taiwan Eurovac, Germany Becker
Dust collection system
  1. 3kw, 5.5kw, 7.5kw, etc., including dust hood, pipe, and complete set
  2. New type
Air compressor Piston air compressor, screw air compressor
Protection device Light curtain
Spindle type 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc.

ATC CNC Router Optional Parts

Application

  • Furniture industry: Various types of doors, windows, cabinets, shelves, tables, chairs, sofas, beds, desks, nightstands
  • Decoration industry: Door frames, photo frames, mirror frames, screens, lights, holiday decorations, carved photos
  • Craft industry: Artworks, gifts, souvenirs, clock frames, holiday ornaments
  • Advertising industry: Advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names, LED lights
  • Other wooden products: Printed circuit boards, insulation materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of lining materials for medical equipment, electronics, and other containers

FAQs

What kind of software can be used on this machine?

Artcam/Aspire/Fusion 360/Alphacam/Ucancam,etc. As long as your software can generate G code, it can use on our CNC machine.

Can you add a rotary device on this machine?

Yes. The rotary device is used for carving cylindrical pieces, like table legs, chairs, etc. We have diameters of 100mm, 200mm, 300mm, and 400mm to choose from.

What are the wearing parts of the CNC router machine?

We will provide a tool box according to the machine, which contains all the wearing parts.
