1530 ATC-4 CNC Router Machine for Sale

(5.0 based on 167 ratings and reviews)

$23,000 – $30,000
  • Brand : Blue Elephant
  • Model : ELECNC1530ATC-4
  • Standard : CE, ISO9001
  • Table size : 1500mm*3000mm(5′ x 10′)
  • Category : ATC CNC Router
  • Supply Ability : 500+ Units in Stock
  • After-sale Service : Free Lifetime Technical Support online, Overseas service.
  • Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
  • Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)

Description

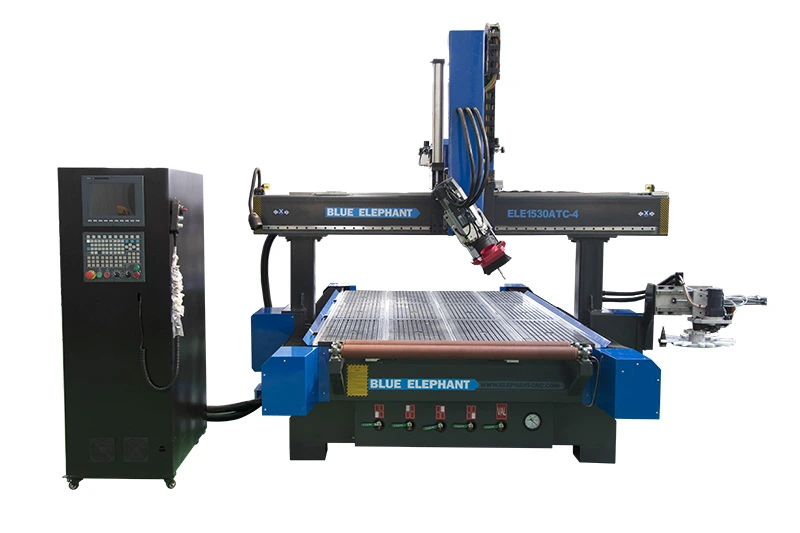

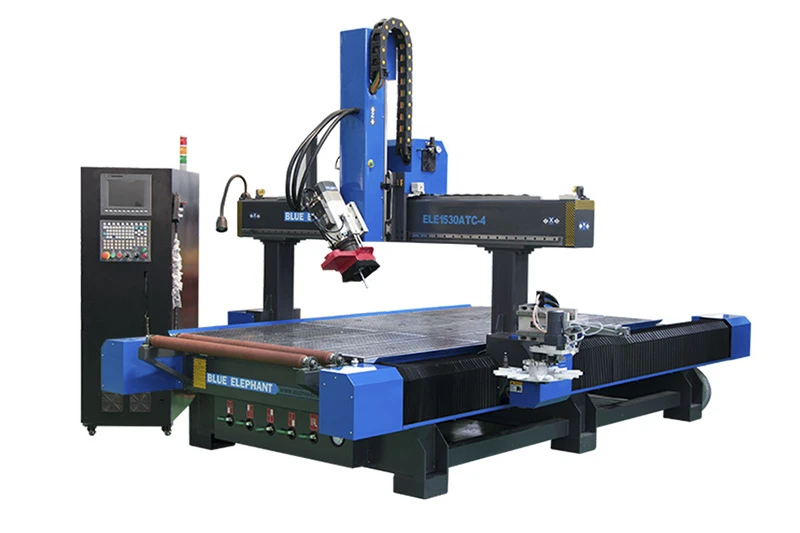

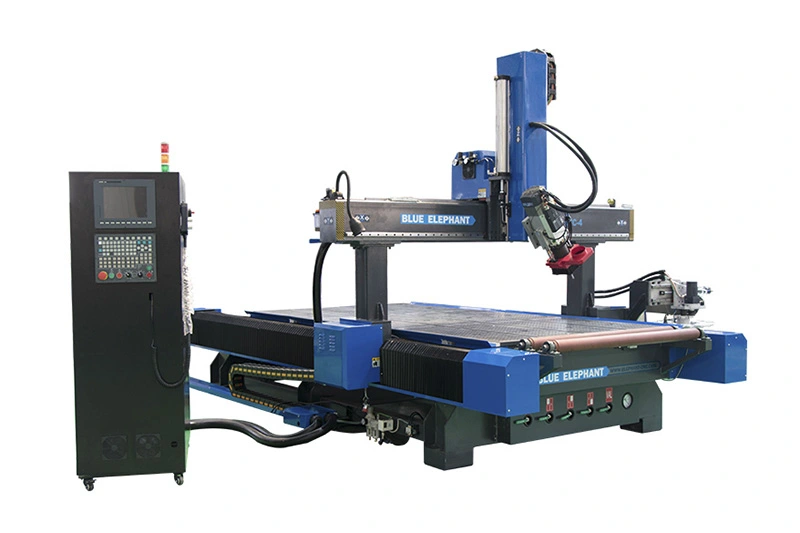

1530 ATC-4 CNC Router Machine has kits of 4th axis CNC spindle for 2D or 3D wood carving. The ATC CNC system is designed for automatic tool changing, while the upload roller device is for the wood panel and MDF feeding. It is mainly used for wood carving, MDF or plywood engraving, marbles carving, cabinet and doors making, etc.

Features

  • Automatic carousel tool changer with 8 tool holders enables fast and efficient tool changing.
  • 4 Axis CNC machines can process complex 3D objects, molds, and curved surfaces with high precision.
  • Two feeding rollers at the front of the table help move MDF or wood panels smoothly through the machine.
  • Italy HSD ATC air-cooled spindle delivers high quality, reliable performance, and long service life.
  • Optional dust covers can be added to the Y-axis or other axes for better protection and cleaner operation.

Parameters

Model ELECNC1530ATC-4A
X,Y axis travel 1500*3000mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc.
Z axis travel 400mm, option: 500mm, 600mm, 700mm, etc.
Spindle type 9kw ATC air cooling spindle, ISO30, ER32
Inverter type 11kw inverter
The 4th axis Cycloidal pin wheel precision reducer, with high transmission accuracy and torsional stiffness
Can swing from -90 degree to +90 degree
Tool magazine Carousel type auto tool changer
Option: linear type auto tool changer
Tool holder with collet ISO30, ER32 collet: φ4, φ6, 1/8, 1/2
Control system Germany Siemens control system
Option: Taiwan SYNTEC/LNC controller
Driving system 1kw Germany Siemens AC servo driver and motor, 4 sets. Option: 1kw Japan YASKAWA AC servo driver and 850w AC servo motor / 1kw Taiwan Syntec servo
Reducer Japan SHIMPO reducer
Machine structure Heavy duty body with quenching treatment
Work table Aluminum T-slot & vacuum work table
Positioning cylinder 7 pieces (X3, Y4)
Linear guide Taiwan PMI Linear guide
Transmission X, Y axis: Taiwan J&T helical rack and pinion
Z axis: Taiwan TBI high precision ball screw
Lubrication system 1.5L automatic lubrication system
Tool calibration Automatic tool sensor calibration
Cables Germany Igus cables with CE, cUL certificate
Compatible software Powermill, UG, Alphacam, Fusion 360, etc.
Command language G Code
Traveling speed 80m/min
Working speed 0-25m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.03mm
Working air pressure 0.8MPa
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/60HZ

Optional Items

Vacuum pump
  1. Water circulation
  2. Ring blower
  3. Rotary vane, oil-free:

Tongyou, Taiwan Eurovac, Germany Becker
Dust collect system
  1. 3kw, 5.5kw, 7.5kw, etc., including dust hood, pipe, all full set
  2. New type
Air compressor Piston air compressor, screw air compressor
Protection device Light curtain
Spindle type 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc.
Rotary device Industrial-grade support of rotary device, diameter 200mm, 320mm.

ATC CNC Router Optional Parts

Application

4 Axis CNC Router is suitable for cutting and engraving 3D workpieces, such as foam molds, wood and stone sculpture and statues except for the basic applications. In addition, it can also drill side holes or make side grooves or slots on the side of wood panels. The 4 axis ATC CNC router has an extensive use in sculpture and statue making, mold, furniture, decoration, craft, advertising and other fields.

FAQs

After tables are welded or fabricated, what is your process for stress relief?

We can provide quenching service. For small size machines of 1300*2500 or 1500*3000mm, we will keep the machine for at least one month after the welding is completed, and it can be slowly eliminated by itself.

Can I use your CNC router to create solid wood tenons, like the dovetail drawers?

For sure. You can use our CNC router machine to process the dovetail drawers, and just need to add a tenon jig.

In terms of the Syntec 1kw Servos, are they closed loop or do they have encoders?

Closed loop and it have encoders. Break in Z-axis.
