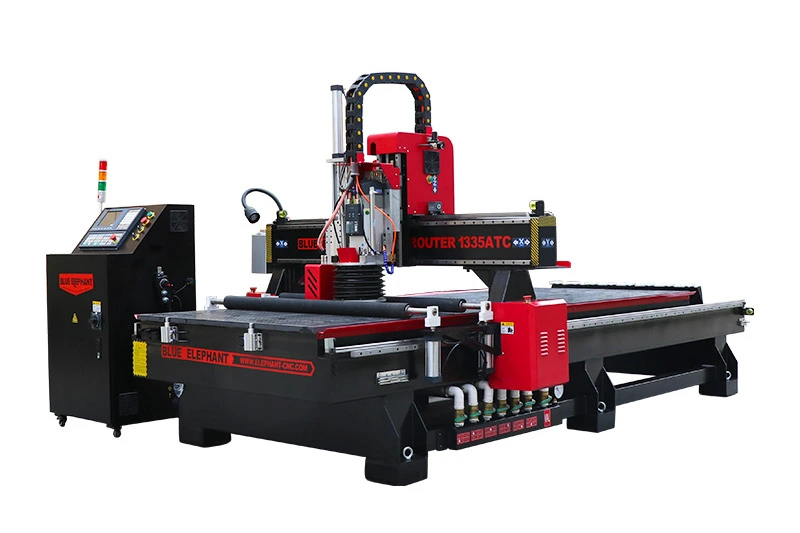

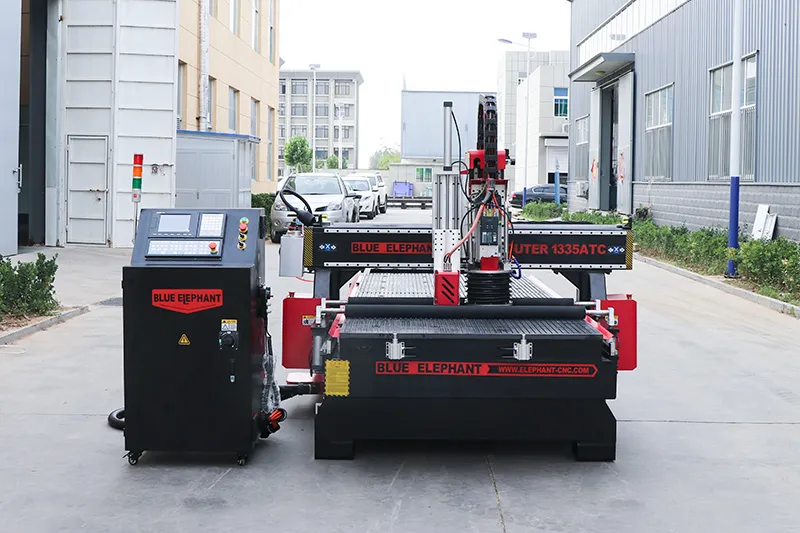

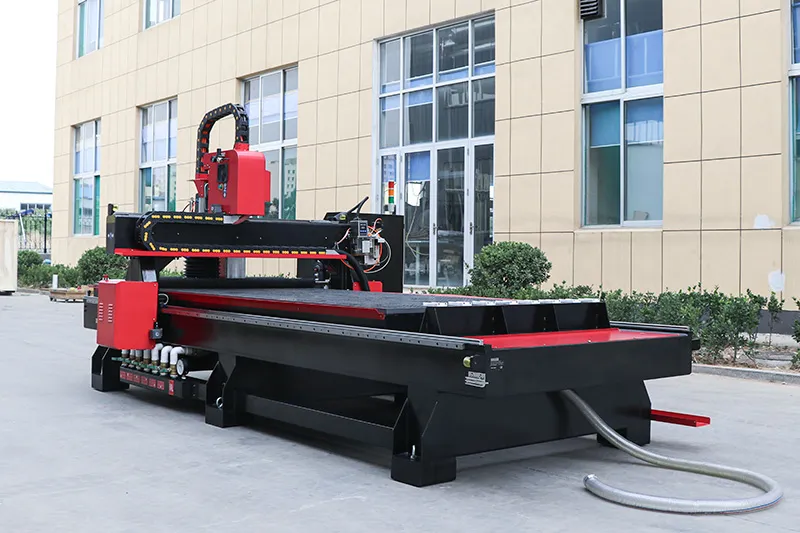

1335 ATC CNC Router with EOT-3 Oscillating Knife

(4.8 based on 92 ratings and reviews)

$18,500 – $24,600
  • Brand: Blue Elephant
  • Model: ELECNC-1335
  • Standard: CE,ISO9001
  • Table size: 1300mm*3500mm
  • Category: ATC CNC Router
  • Supply Ability: 400+ Units in Stock
  • After-sale Service: Free Lifetime Technical Support online, Overseas service.
  • Payment Terms: Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
  • Warranty: 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)

Description

1335 ATC CNC router with EOT-3 oscillating knife can do automatic tool changing without manual operation. It also has a powerful ability to cut leather, carpet, carton, wood, MDF, PVC, acrylic, cardboard, rubber, rorrugated box, foam due to the high efficiency oscillating knife.

Features

  • Equipped with the linear tool change function, 8 tools are automatically switched, saving time and improving efficiency.
  • Adopting international imported components like big power and high precision servo motor and driver, the machine has a more precise machining accuracy and more stable operation.
  • The high-power air cooling spindle has strong cutting capacity and excellent processing accuracy.
  • Equipped with a vacuum & T-slot working table, it can fix the materials stably and firmly.

Parameters

Model  ELECNC1335ATC
X,Y axis travel 1300x3500mm, option: 1500*3000mm, 2100*3000mm, 2100*4000mm, etc.
Z axis travel 200mm, option: 300mm, 400mm, 500mm, 600mm,etc.
Spindle type 9kw ATC air cooling spindle, ISO30, ER32
Inverter type 11kw
Drilling bank Optional
Tool magazine Linear type auto tool changer
Option: Carousel type auto tool changer
Tool holder with collet ISO30, ER32 collet: φ4, φ6, 1/8, 1/2
Control system Taiwan SYNTEC /LNC controller, option: Ncstudio
Driving system 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. option: 1kw Taiwan Syntec servo
Reducer Japan SHIMPO reducer
Machine structure Heavy duty body with quenching treatment
Work table Vacuum work table
Positioning cylinder 5 pieces (X2,Y3)
Linear guide Taiwan Linear guide with dust proof
Transmission X, Y axis: Taiwan / Germany Helical Rack and Pinion
Z axis: Taiwan TBI high precision ball screw
Lubrication system 1.5L automatic lubrication system
Tool calibration Automatic tool sensor calibration
Cables Germany Igus cables with CE, cUL certificate
Compatible software Artcam, Alphcam,Type 3,Ucancam, Aspire, etc.
Command language G Code & M Code
Traveling speed 80m/min
Working speed 0-25m/min
Re-positioning accuracy ±0.03mm
System resolution ±0.0025mm
Working accuracy ±0.03mm
Working air pressure 0.6MPa
Working voltage 220V 1PH/3PH 50HZ/60HZ
380V 3PH 50HZ/ 60HZ

Optional Items

Vacuum pump
  1. Water circulation
  2. Ring blower
  3. Rotary vane,oil-free:

Tongyou,Taiwan Eurovac,Germany Becker
Dust collect system
  1. 3kw,5.5kw,7.5kw,etc,including dust hood, pipe, all full set
  2. New type
Air Compressor Piston air compressor, screw air compressor
Protection device Light curtain
Spindle type 9kw ATC spindle (HSK F63),12kw (ISO30, HSK F63), etc.

ATC CNC Router Optional Parts

Application

The 3 axis ATC CNC router is an entry-level 3 axis CNC router with the automatic tool change function. The spindle can move along the X, Y and Z axis.So it is suitable for plate material processing, such as wooden boards, acrylic sheets, melamine boards, etc. Its principal functions include cutting, engraving, grooving, milling, drilling, pocketing, routing and boring. The oscillating knife is good at cutting flexible materials, such as rubber, fabric, leather, paper, etc.

FAQ

What materials can be processed by this CNC router?

This machine is a combination of a CNC router and an oscillating knife. It can cut all the materials that these two types of machine can cut. For example, wood, MDF, plywood, plastic, acrylic, foam, paper, leather, acoustic panel, etc.

Can it be upgraded to a 4-axis CNC machine?

Yes, of course. All our configurations can be customized according to your needs.

Is it possible to use the oscillating knife for 3D engraving?

Sorry, our oscillating knife can only go straight up and down, and keep cutting at the same height. So it’s can engrave 3D workpieces. Our 4-axis and rotary axis CNC router machine can perform 3D relief and 3D model processing.
