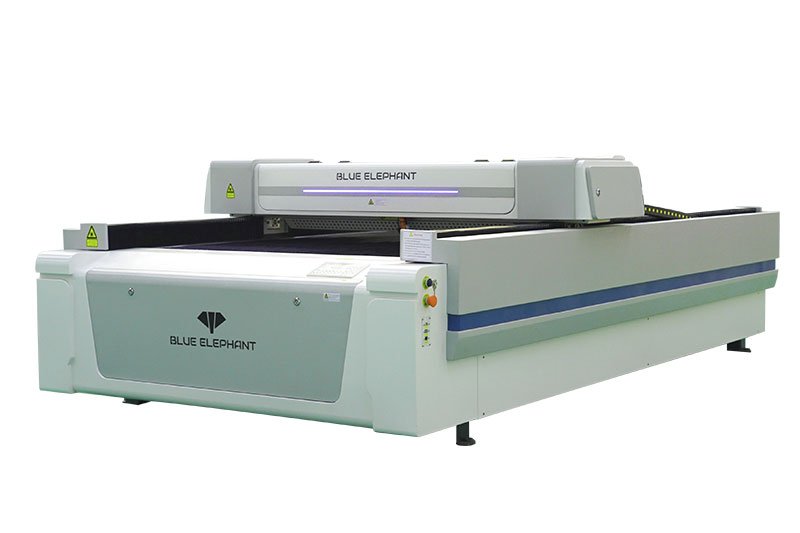

1325L Fabric CO2 Laser Cutting Machine
- Brand : Blue Elephant
- Model : ELECNC-1325L
- Standard : CE, ISO9001
- Laser Tube : Sealed Co2 glass laser tube
- Laser Power : RECI W6, optional: W2, W4, W8
- Category : Co2 Laser Cutting Machine
- Supply Ability : 330+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
Description
1325L fabric CO2 laser cutting machine is an ideal solution for straight or curving cutting of felt, textile, cloth, leather. We can design and nest patterns on the computer, then use laser cut machine for fabric with no die required. It works at a very high speed and accuracy, saves much time, reduces material loss.
Features
- Beam guide rail with small running resistance: The beam guide rail adopts a vertical design with small running resistance. Using a non-contact surface processing method, it can quickly cut shapes or engrave text/patterns, featuring super energy saving, maintenance-free operation, simple operation, and fine marking.
- High-quality laser beam: It uses a high-quality laser with outstanding beam quality, ensuring rapid cutting and engraving speeds, stable and durable operation, and high cost performance.
- Support multiple image file formats: The CO2 laser cutter supports multiple image file formats, including PLT, DXF, BMP, DST, etc. It is also compatible with many design software programs.

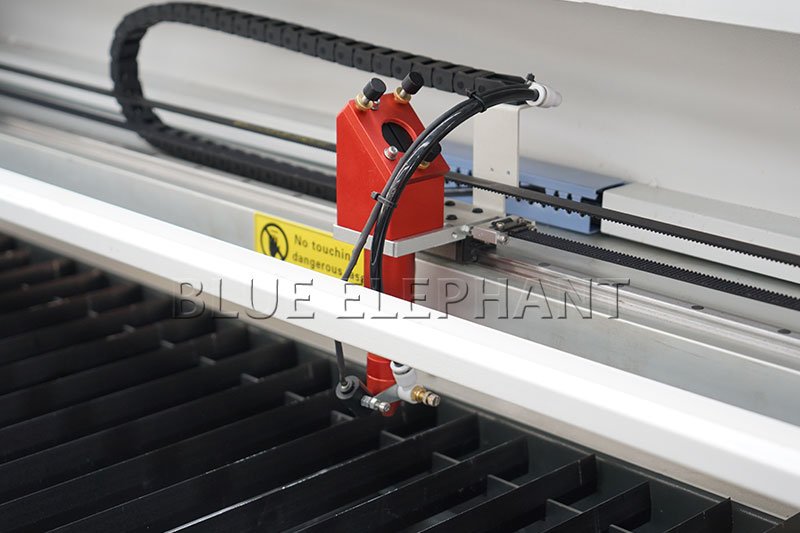

- Built-in red-dot positioning, more accurate: The traditional red dot is located in the laser head, which is likely to move and cause positioning errors. However, the built-in red dot is irradiated from the laser head to the material surface together with the laser beam, ensuring accurate positioning without deviation and reducing the influence of external factors.
Parameters
| Model | ELECNC1325L |
| Working area | 1300mm*2500mm |
| Color | Blue and white |

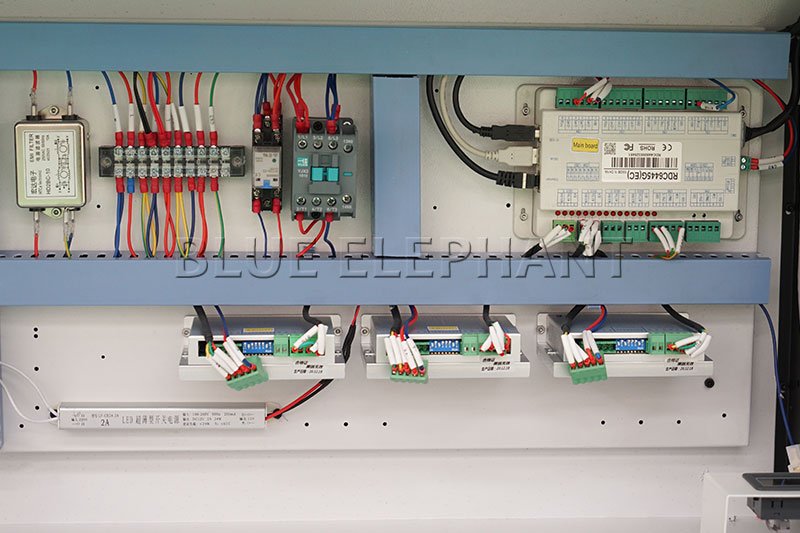

| Control system | RD 6445G |
| Laser power | RECI W6, optional: W2, W4, W8 |
| Laser type | Sealed Co2 glass laser tube |
| Cutting speed | 0-30,000mm/min |
| Position system | Red dot |
| Graphic format | PLT, ENG, DXF, DWG |
| Motor & drive | Stepper |
| Accessory | Air Pump, CW5000 Water Chiller, Lens |
| Application | Cotton, denim, felt, flannel, fleece, jeans, lace, leather, linen, polyester, satin, silk, softshell, wool |
| Operating temperature | 0-45℃ |
| Operating humidity | 5-95% |
CO2 Laser Cutting Machine Optional Parts
Application
CO2 laser cutting machine is widely used in process non-metal materials. For example, wood, acrylic, feather, fabric, paper, plastic, etc. The CO2 laser cutter has extensive usage in the industries of automotive inner decoration, toys, furniture, crafts, artworks, advertising decorations, paper products, wood products, feather products, fabric products, packaging, and other industries.
FAQ
A CO2 laser cutting machine can cut and engrave various non-metal materials, such as wood, acrylic, paper, feather, fabric, cloth, etc.
Yes, but with some conditions. The laser power of this CO2 laser cutter must be greater or equal to 130W. Besides, the laser head shall be a mixed type, which means that it can cut both metal and non-metal materials. For example, a 130W CO2 laser cutter can cut 1mm carbon steel and 1mm stainless steel.
Yes, the process of laser cutting wood material is actually a sublimation process. However, this effect is not bad and is exactly what we need in many cases. To obtain the best laser cutting and engraving results on wood, you need to focus accurately, select appropriate laser processing parameters, use appropriate optical lens and properly apply compressed air.
