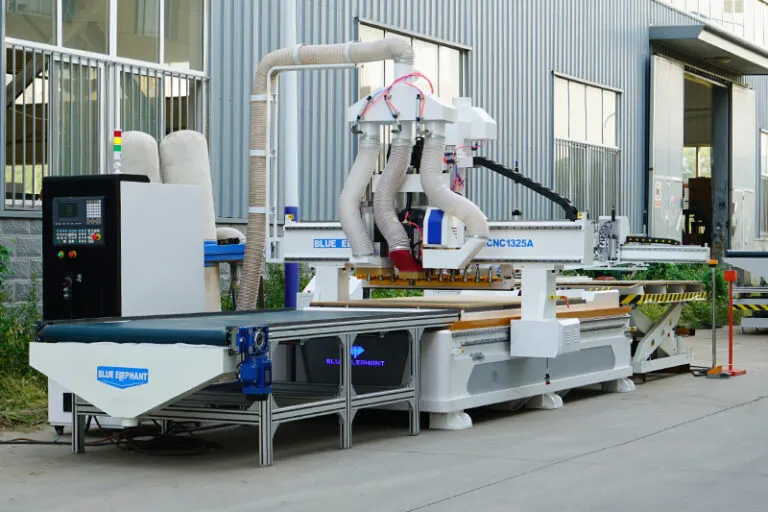

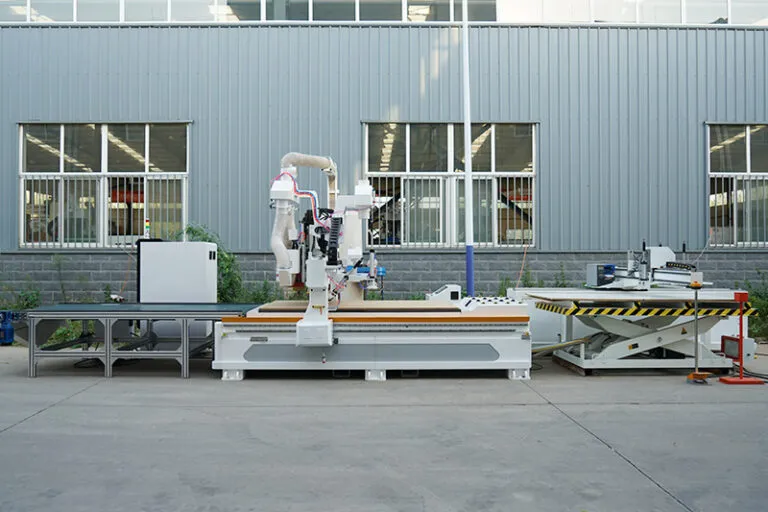

1325 ATC Nesting CNC Router with HSD Drill and Saw Spindle

(5.0 based on 137 ratings and reviews)

$13,000 – $25,000

Brand : Blue Elephant
Model : ELECNC-1325
Standard : CE, ISO9001
Table size : 1220mm*2500mm
Category : Nesting CNC Machine
Supply Ability : 400+ Units in Stock
After-sale Service : Free Lifetime Technical Support online, Overseas service.
Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)

Description

1325 ATC Nesting CNC Router with HSD Drill and Saw Spindle is mainly used for door, cabinet making. And the automatic loading and unloading system and labeling function not only can save labor and time cost, but make your woodworking more efficient.

Features

Adopting Original Italian HSD Spindle, it has the features of fast speed, the best quality, and big power.
Equipped with Italian HSD 9 Vertical(5 Vertical+4 Vertical) drilling head, and it can drill holes for cabinet with higher efficiency.
With 12 PCs tool storage under the machine gantry, it can change tools with faster and higher efficiency.
With auto loading and unloading working table, it can improve the production efficiency of cabinets and panel furniture.

Parameters

Model	ELECNC1325ATC with auto loading and unloading
X,Y axis travel	1300x2500mm, option: 15003000mm; 21003000mm; 2100*4000mm, etc
Z axis travel	200mm
Spindle type	9kw ATC air cooling spindle, ISO30, ER32
Inverter type	11kw Delta
Drilling bank	Italy 5+4 vertical drills
Tool magazine	Linear type auto tool changer under the Gantry Option: carousel type auto tool changer
Tool holder with collet	ISO30, ER32 collet: φ4, φ6, 1/8, 1/2
Control system	Taiwan SYNTEC controller
Driving system	850W Japan YASKAWA AC servo driver and 850w AC servo motor, 4 sets. option: 1kw Taiwan Syntec servo
Reducer	Japan SHIMPO reducer
Machine structure	Heavy duty body with quenching treatment
Work table	Vacuum work table
Positioning cylinder	5 pieces (X2, Y3)
Linear guide	Taiwan linear guide 25mm
Transmission	X, Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw
Lubrication system	1.5L automatic lubrication system
Tool calibration	Automatic tool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Artcam, Alphcam, Type 3, Ucancam, Aspire, etc
Command language	G Code & M Code
Traveling speed	80m/min
Working speed	0-25m/min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working accuracy	±0.03mm
Working air pressure	0.6MPa
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ
Other	Automatic loading and unloading platforms

Optional Items

Vacuum pump	Water circulation Ring blower Rotary vane,oil-free: Tongyou,Taiwan Eurovac, Germany Becker
Dust collect system	3kw, 5.5kw, 7.5kw, etc, including dust hood, pipe, all full set New type
Air Compressor	Pistonaircompressor, screw air compressor
Protection device	Light curtain
Spindle type	9kw ATC spindle (HSK F63),12kw(ISO30, HSK F63), etc

Nesting CNC Machine Optional Parts

nesting-cnc-machine-integrated-labeling-machine

nesting-cnc-machine-pressure-roller

nesting-cnc-machine-saw-blade

nesting-cnc-machine-vacuum-pump

nesting-cnc-machine-air-compressor

nesting-cnc-machine-c-axis-aggregate-head

nesting-cnc-machine-drill

nesting-cnc-machine-independent-labeling-machine

Application

It is mainly used to cut various wooden boards. In terms of processing functions, the cutting machine mainly includes cutting, punching, grooving, and other processes. The nesting CNC machine is widely used in the furniture industry such as cabinet doors, wardrobe doors, solid wood doors, paint-free doors, solid wood composite doors, and suite doors.
