1325 ATC Nesting CNC Machine

(5.0 based on 137 ratings and reviews)

$13,000 – $25,000
  • Brand : Blue Elephant
  • Model : ELECNC-1325ATC
  • Standard : CE, ISO9001
  • Table size : 1220mm*2500mm
  • Category : Nesting CNC Machine
  • Supply Ability : 500+ Units in Stock
  • After-sale Service : Free Lifetime Technical Support online, Overseas service.
  • Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
  • Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)

Description

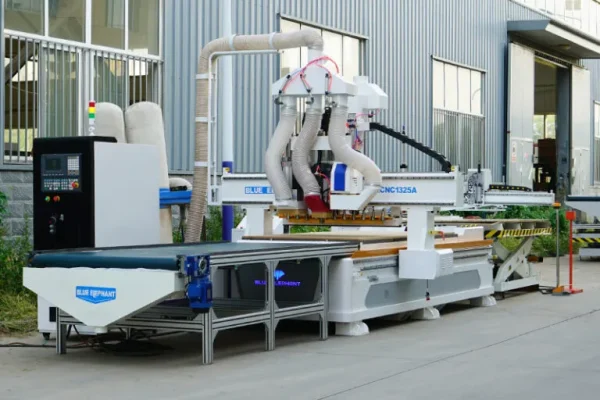

1325 ATC Nesting CNC Machine is an ATC CNC Router with an auto-feeding system. This nesting machine is ideal for mass production in the furniture industry.

Features

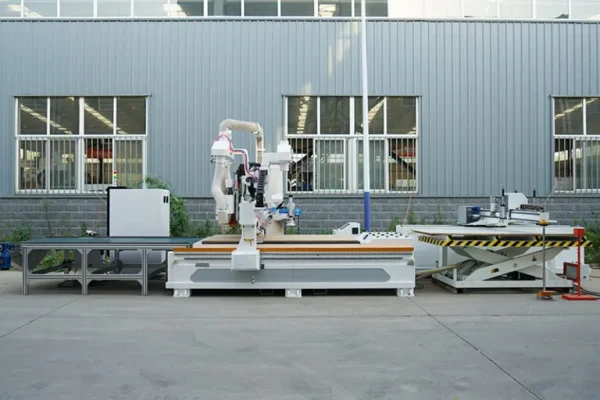

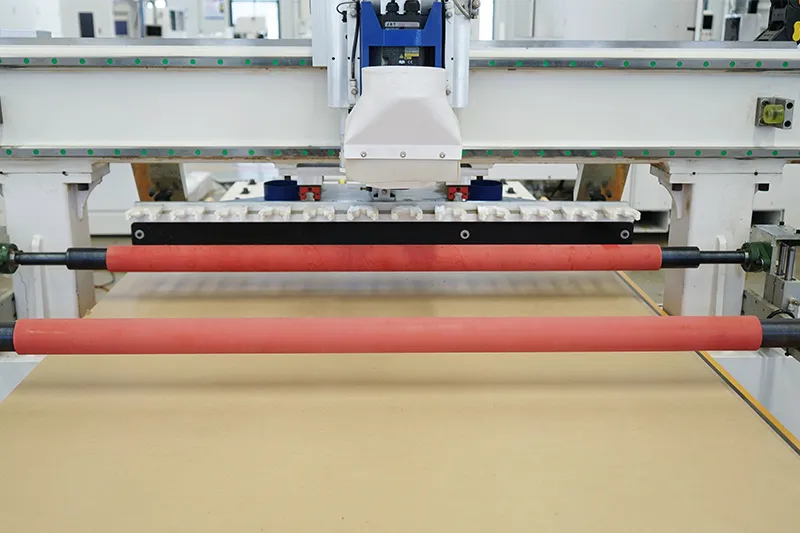

  • With automatic loading and unloading platform, it can effectively improve the production efficiency of cabinets and panel furniture.
  • This nesting machine adopts the new Italian ES951 air-cooled tool change spindle, the speed can reach 24000 rpm, and it has the advantages of strong cutting ability and long service life.

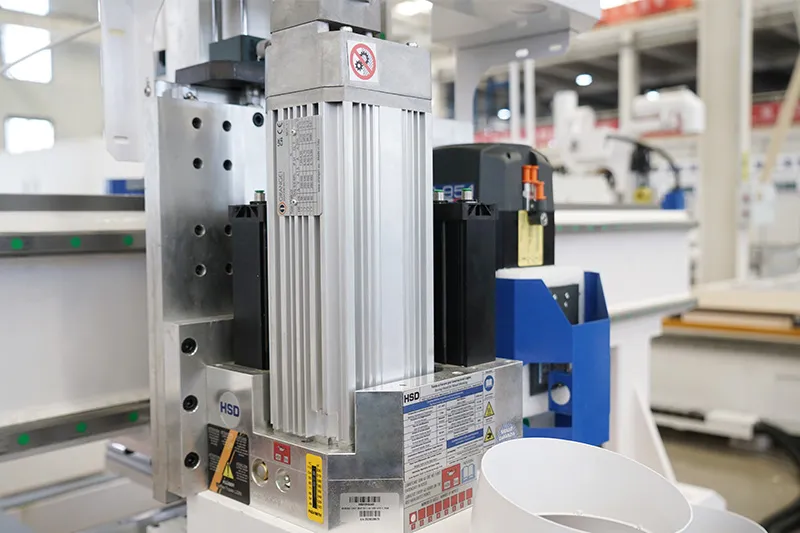

  • With Italian HSD 9 vertical drills, multiple vertical holes can be processed at one time, effectively improving the drilling efficiency.
  • With 8 high-speed disc tool magazines, tool change can be completed within 8 seconds, which effectively improves production efficiency.

Parameters

  • Model : ELECNC1325ATC
  • X,Y axis travel : 1300×2500mm, option: 1500×3000mm; 2100×3000mm; 2100×4000mm, etc
  • Z axis travel : 200mm
  • Spindle type : 9kW ATC air cooling spindle, ISO30, ER32
  • Inverter type : 11kW Delta
  • Drilling bank : Italy 9+3+1 vertical drills
  • Tool magazine : Carousel type auto tool changer
    Option: Linear type auto tool changer
  • Tool holder with collet : ISO30, ER32 collet: φ4, φ6, 1/8, 1/2
  • Control system : Taiwan SYNTEC controller
  • Driving system : 850W Japan YASKAWA AC servo driver and 850W AC servo motor, 4 sets. Option: 1kW Taiwan Syntec servo
  • Reducer : Japan SHIMPO reducer
  • Machine structure : Heavy duty body with quenching treatment
  • Work table : Vacuum work table
  • Positioning cylinder : 5 pieces (X2, Y3)
  • Linear guide : Taiwan linear guide 25mm
  • Transmission : X, Y axis: Taiwan / Germany Helical Rack and Pinion
    Z axis: Taiwan TBI high precision ball screw
  • Lubrication system : 1.5L automatic lubrication system
  • Tool Calibration : Automatic tool sensor calibration
  • Cables : Germany Igus cables with CE, cUL certificate
  • Compatible Software : Artcam, Alphcam, Type 3, Ucancam, Aspire, etc
  • Command Language : G Code & M Code
  • Traveling speed : 80m/min
  • Working speed : 0-25m/min
  • Re-positioning accuracy : ±0.03mm
  • System resolution : ±0.0025mm
  • Working Accuracy : ±0.03mm
  • Working air pressure : 0.6MPa
  • Working voltage : 220V / 3PH 50HZ/60HZ
    380V / 3PH 50HZ/60HZ

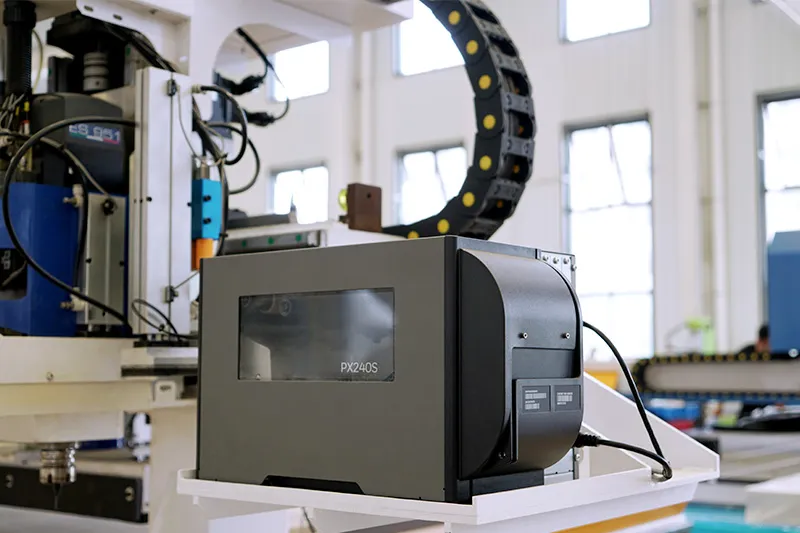

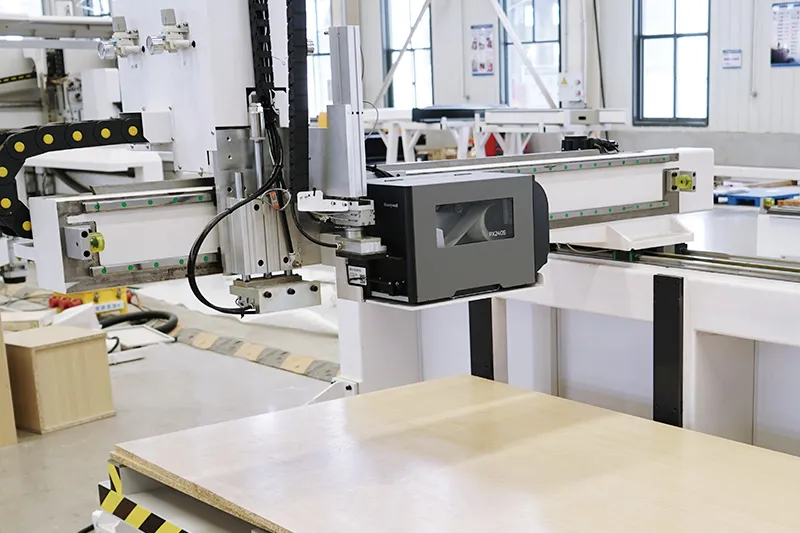

  • Other : Automatic labelling system

Optional Items

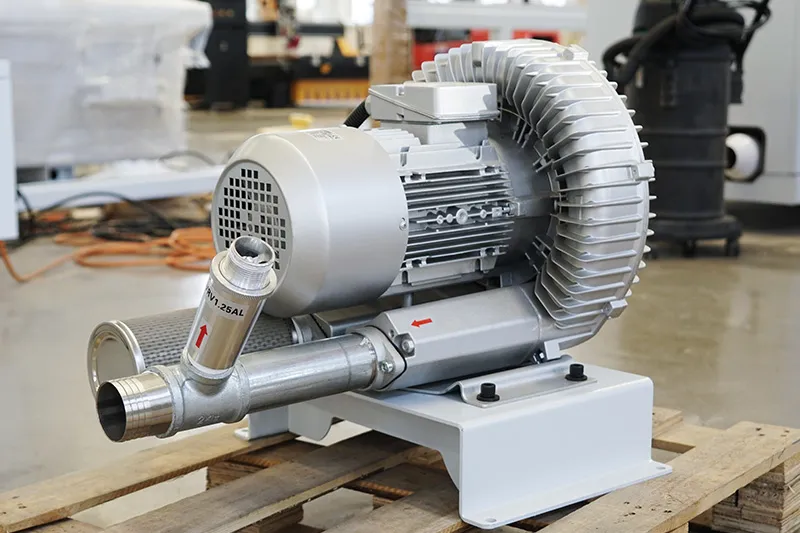

  • Vacuum pump : 1. Water circulation
    2. Ring blower
    3. Rotary vane, oil-free: Tongyou, Germany Becker
  • Dust collect system : 1. 3kW, 5.5kW, 7.5kW, etc, including dust hood, pipe, all full set
    2. New type

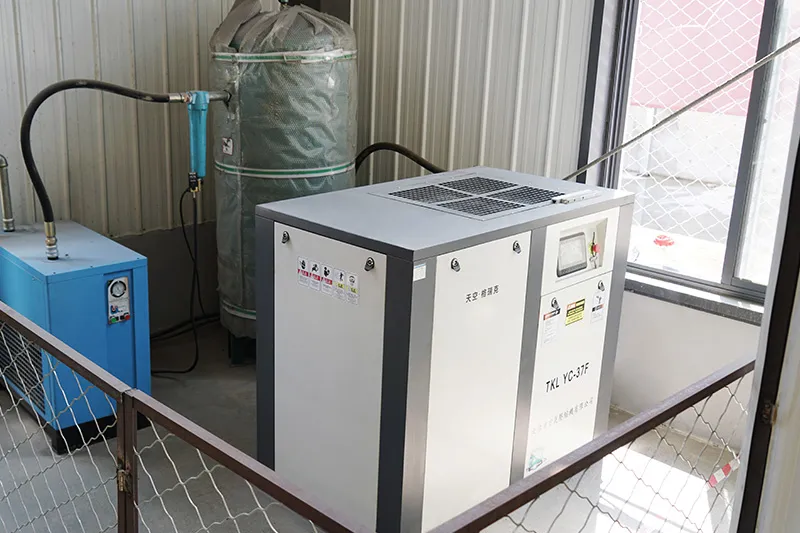

  • Air Compressor : Air compressor / Screw air compressor
  • Protection device : Light curtain
  • Spindle type : 9kW ATC spindle (HSK F63), 12kW (ISO30, HSK F63), etc

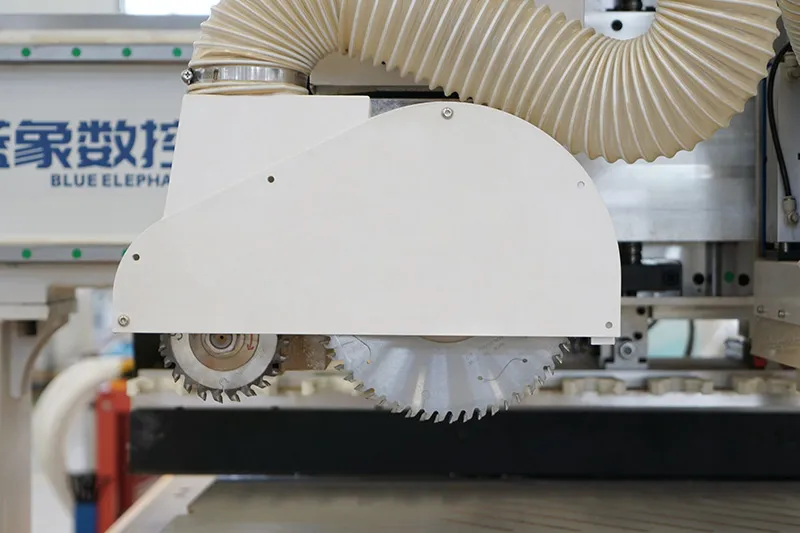

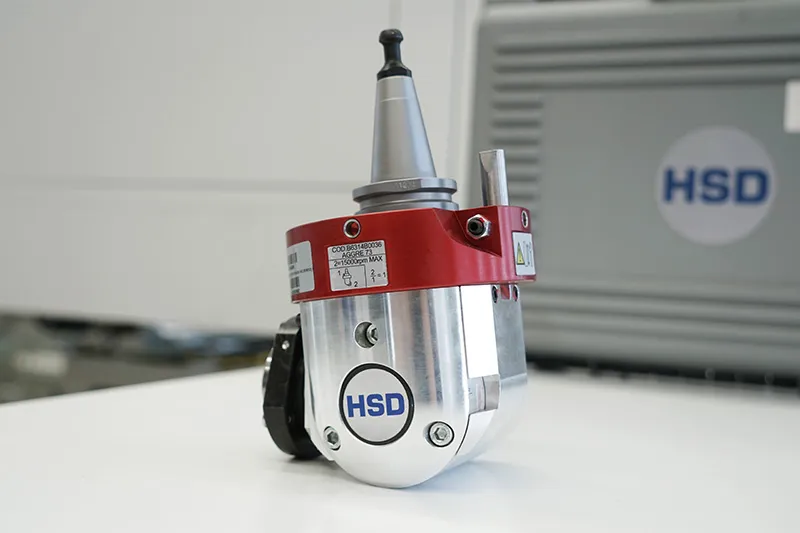

Nesting CNC Machine Optional Parts

Application

It is mainly used to cut various wooden boards. In terms of processing functions, the cutting machine mainly includes cutting, punching, grooving, and other processes. The nesting CNC machine is widely used in the furniture industry such as cabinet doors, wardrobe doors, solid wood doors, paint-free doors, solid wood composite doors, and suite doors.

FAQ

Can I work with two different boards?

The machine can work on 2 different boards, whatever large or small.
2 sets of positioning cylinders ensure the board with correct location.

How do I ensure the board not move when processing?

Machine comes with full vacuum table and powerful German Becker, as well as the vacuum pump. They can ensure to fix the board well. The size of vacuum table is the same as sheet to avoid air leaks.

What’s the advantage of the carousel tool changer?

The speed of changing bits will be more faster, around 6s. And it can save time and improve the working efficiency.
