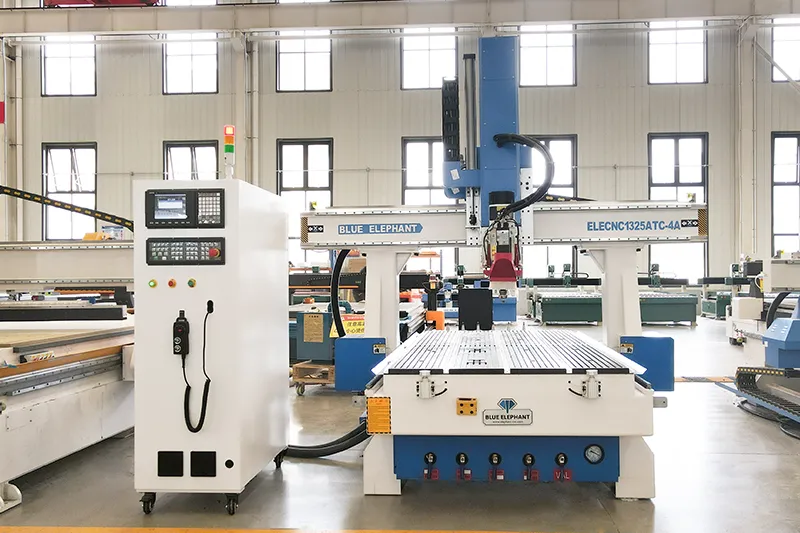

1325 ATC 4 Axis Door, Wall and Cabinet Integrated Machine
- Brand : Blue Elephant
- Model : ELECNC1325ATC-4A
- Category : Door Wall and Cabinet Integrated Machine
- Supply Ability : 400+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty ：12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description
This 1325 ATC 4 axis door, wall and cabinet integrated machine adopts a new large square tube seamless welded bed, widened square tubes, and added reinforced square tubes to improve the bed strength and tabletop strength. The machine can process various handle-free handles, horn handles, arc handles, 45-degree lamino, horizontal lamino, various crabapple corners, invisible doors, L angles, straighteners, light troughs, skeleton door panels, door lock holes, door hinge slots, and floor hinges. It can also be used for cutting, punching, and grooving of panel furniture.
Features
- The door, wall and cabinet integrated machine adopts heavy-duty reinforced gantry structure improves stability; widened square tube columns with extra ribs enhance strength.
- Seven-zone vacuum table with embedded parts allows easy surface and liner replacement, preventing air leakage.
- Built-in air pressure monitoring system stops operation and alarms if pressure is low.
- It is equipped with voltage phase sequence protector to prevent damage from incorrect wiring or voltage issues.
Parameters
| Model | ELECNC1325ATC-4A |
| Voltage/frequency | AC380V 50HZ 3PH |
| Working size | 1300*2800*400mm |
| Table structure | Vacuum adsorption table, 7 divisions |
| Control system | Taiwan Delta |
| File format | *.g；*.nc；*.ug;*.demo;*.iso;*.eng;*.cut |
| Positioning | Positioning cylinder positioning |
| Pushing device | Pushing and secondary dust removal device(Z600 without pusher) |
| Spindle type | 9kw JST ATC air cooling spindle, 24000rpm, 40E |
| Inverter | 11kw Fuling |
| Motors and drives | Taiwan Delta servo motor |
| Reducer | Japan Shimpo |
| Transmission | X, Y axis:Taiwan JT 2M helical rack |
| Linear guide | Taiwan SHAC, Y-30,XZ-25 |
| Vacuum pump | 7.5kw |
| Vacuum cleaner | 5.5kw double bag vacuum cleaner with motor protection |
Door, Wall and Cabinet Integrated Machine Optional Parts

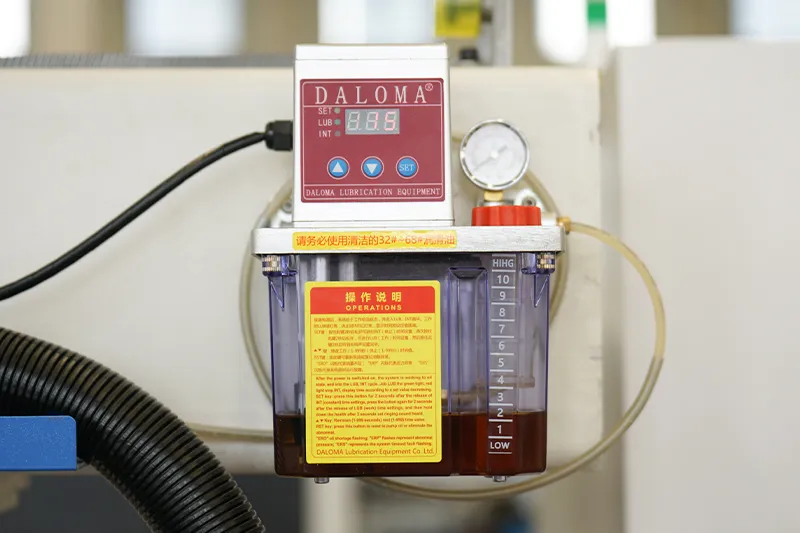

1325-door-wall-cabinet-integrated-processing-center-lubrication-equipment

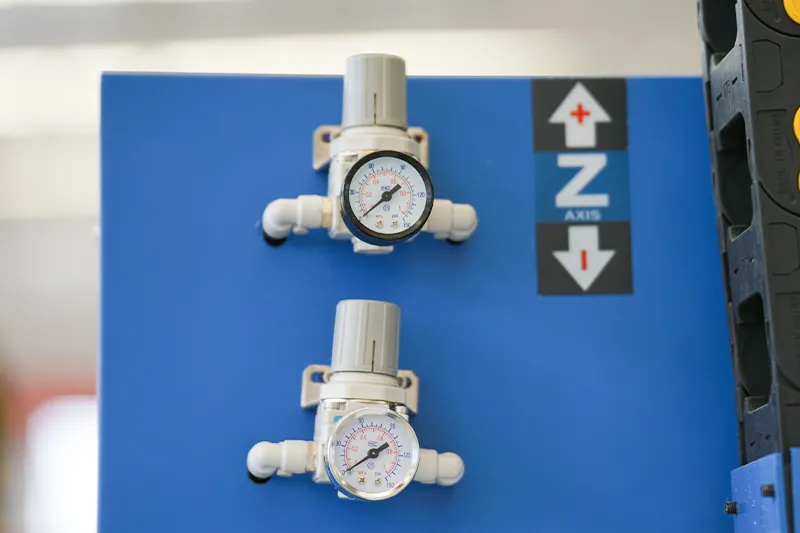

1325-door-wall-cabinet-integrated-processing-air-pressure-regulator

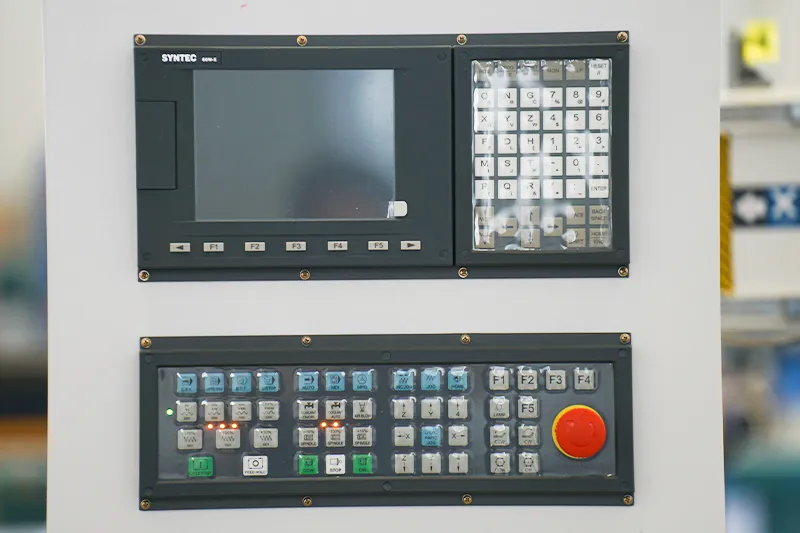

1325-door-wall-cabinet-integrated-processing-center-control-system

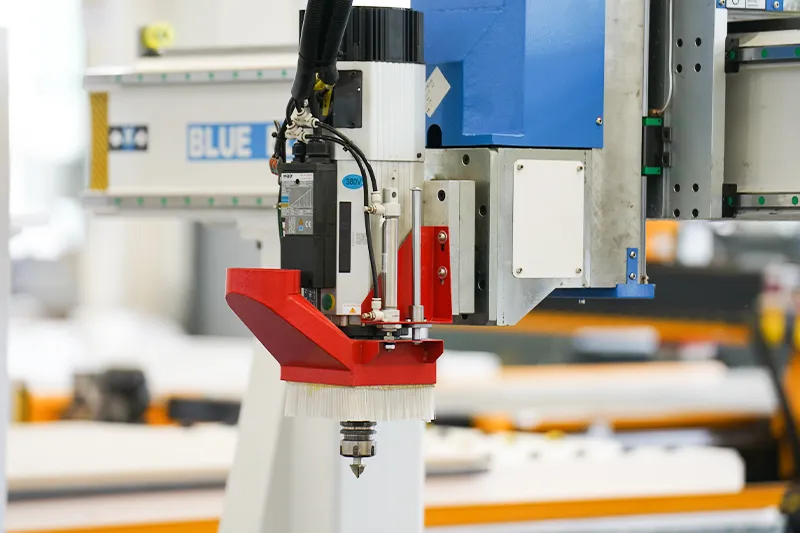

1325-door-wall-cabinet-integrated-processing-center-drilling-head
Application
Door, wall and cabinet integrated machine can process various handle-free handles, horn handles, arc handles, 45-degree lamino, horizontal lamino, various crabapple corners, invisible doors, L angles, straighteners, light troughs, skeleton door panels, door lock holes, door hinge slots, and floor hinges. It can also be used for cutting, punching, and grooving of panel furniture.
door-wall-cabinet-integrated-machine-for-door-closer
door-wall-cabinet-integrated-machine-for-door-lock
door-wall-cabinet-integrated-machine-for-door-making
door-wall-cabinet-integrated-machine-for-square-hinge
door-wall-cabinet-integrated-machine-for-wardrobe
door-wall-cabinet-integrated-machine-for-wooden-cabinet
door-wall-cabinet-integrated-machine-for-bathroom-vanity
door-wall-cabinet-integrated-machine-for-cabinet-making
FAQ
Door and cabinet integrated machine is usually suitable for various wood, composite materials and some plastic materials.
We have a mature after-sales service team that can provide 24-hour online service. If you have any questions, our engineers will guide you step by step and help you solve the problem. In addition, we also provide you with teaching videos and manuals.
This nesting CNC machine is equipped with an automatic lubrication system and does not require manual maintenance.
