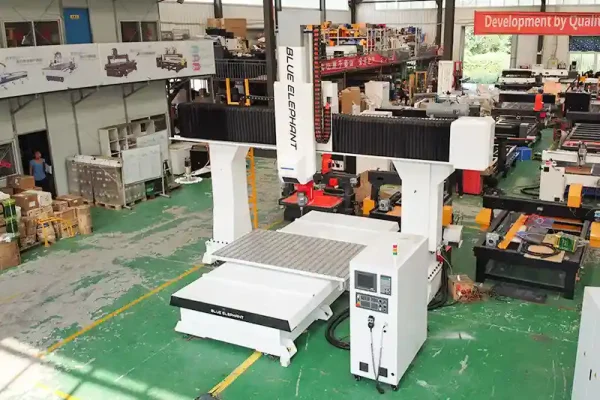

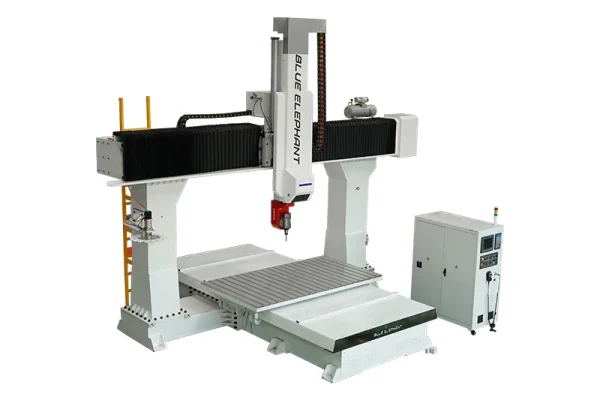

1325 5 Axis CNC Router for Sale
- Brand : Blue Elephant
- Model : ELECNC-1325
- Standard : CE, ISO9001
- Table size : 1300mm*2500mm
- Category : 5 Axis CNC Router
- Supply Ability : 300+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description
1325 5 axis CNC router is specially designed for engraving complex 3D workpieces. This 5-axis CNC router has the characteristics of good rigidity, good stability, high processing accuracy, stable operation, convenient operation, etc.
Features
- Adopting the removable working table, it is easy and convenient to transport and operate.
- Equipped with imported servo system and high-precision transmission components, high processing accuracy and stable operation.
- With the professional 5-axis control system, it has the features of convenient operation and powerful functions.
- All components are from international famous brands, which greatly extending the life of the machine.
Parameters
| Model | ELECNC-1325 |
| X,Y axis travel | 1300X2500mm |
| Z axis travel | 1000mm |

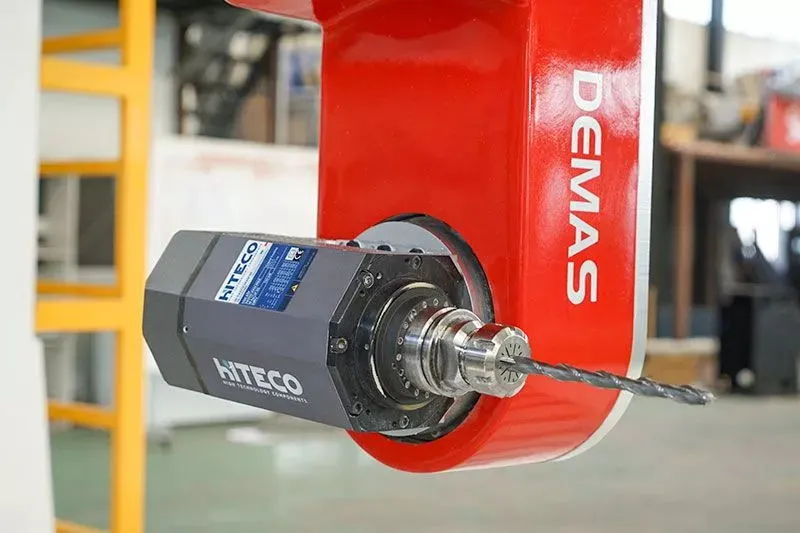

| Spindle type | 10kw Demas 5 axis spindle |
| Inverter type | 15kw Taiwan Delta inverter |
| Drilling bank | Taiwan or Italy 5+4 vertical drills |

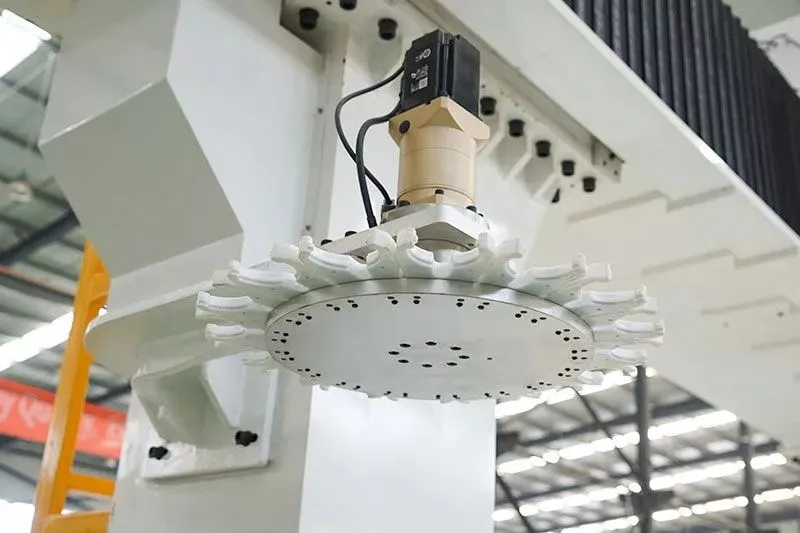

| Tool magazine | Carousel tool changer with 16pcs magazine |
| Tool holder with collet | 16 pcs HSK F63 tool holder |

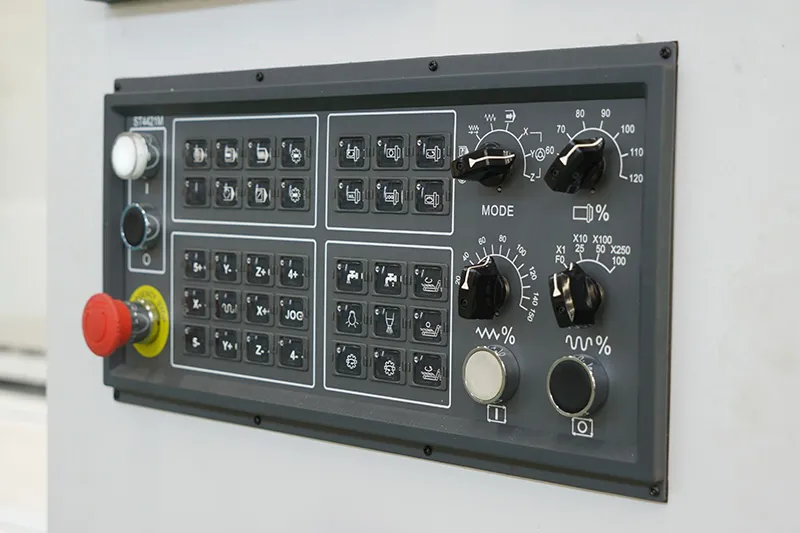

| Control system | Syntec 610-E5 5 axis control system |
| Driving system | 1.3kw Japan Yaskawa servo motors and drivers |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |

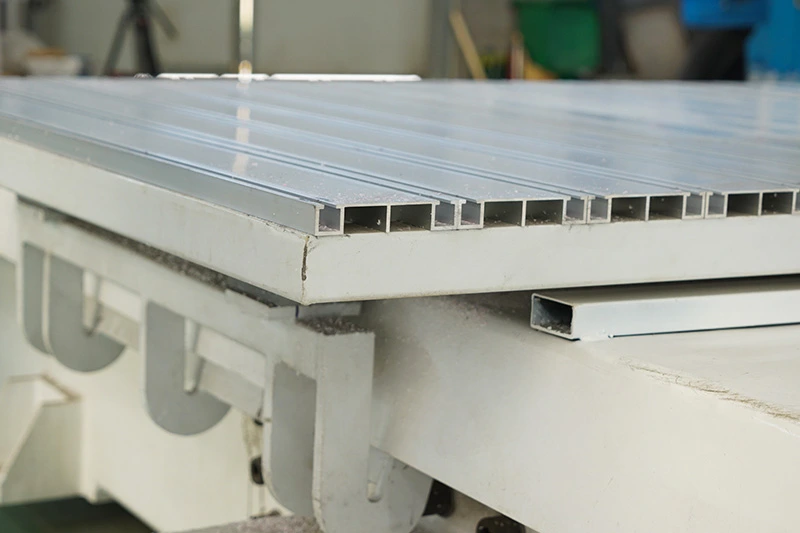

| Work table | Removable working table T-slot working table with PVC protection |
| Positioning cylinder | 5 pieces (X2,Y3) |
| Linear guide | Taiwan Linear guide |
| Transmission | Taiwan linear guide, 35# on Y axis, 30# on X ans Z axis Taiwan TBI ball screw 3510 |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Powermill software |
| Command language | G Code |
| Traveling speed | 80m/min |
| Working speed | 0-60m/min |
| Working air pressure | 0.6MPa |
| Working voltage | 380V 3PH 50HZ/ 60HZ |
5 Axis CNC Router Machine Optional Parts
Application
INDUSTRIES
5 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 5 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. In regard to materials, 5 Axis router can process various wood materials, plastics and composites.
FAQ
It is widely used to process 3D wood, foam, and plaster molds, statues, and parts.
It uses the Syntec 610-E5 5 axis control system. With a screen, you can see the processing path and it is easy to operate.
Yes, it can be customized according to your needs.
