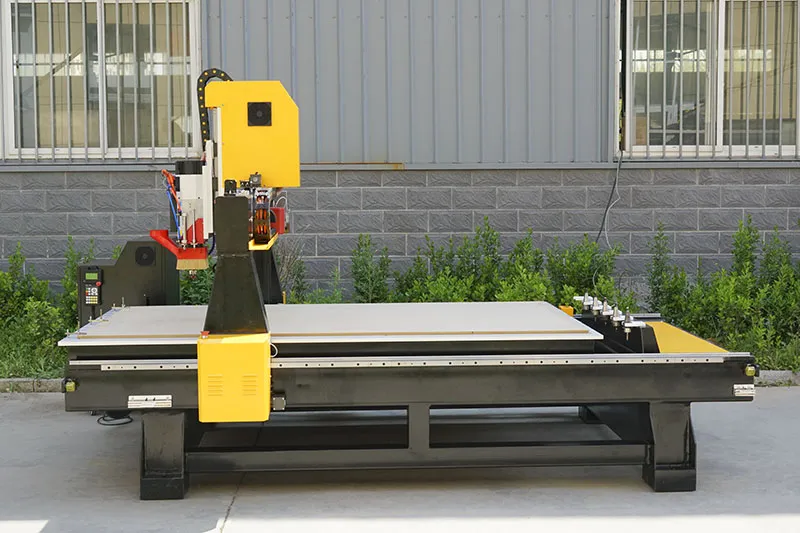

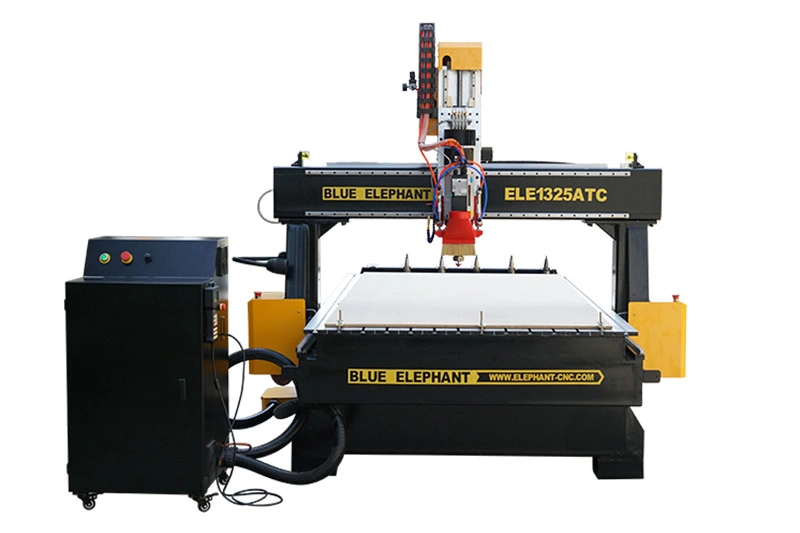

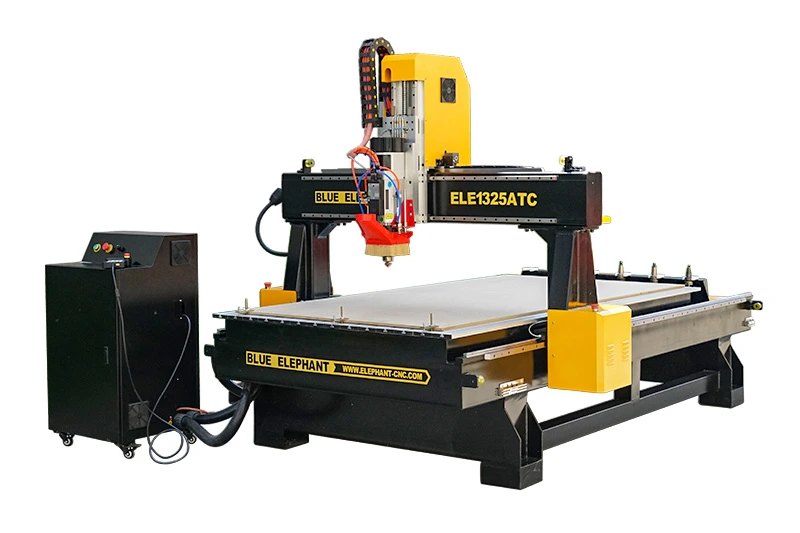

1325 4×8 Linear ATC CNC Router Tool Machine at Best Price
- Brand: Blue Elephant
- Model: ELECNC-1325ATC
- Standard: CE, ISO9001
- Table size: 1300mm*2500mm (4′ x 8′)
- Category: ATC CNC Router
- Supply Ability: 400+ Units in Stock
- After-sale Service: Free Lifetime Technical Support online, Overseas service.
- Payment Terms: Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty: 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description
1325 4×8 Linear ATC CNC router is popularly used in woodworking, making signs, molds making, art crafts making, etc. The automatic tool changer magazine carries more than 6 cutters. It can change different tools for your reference.
Features
- The high-power air cooling spindle enables the machine to achieve higher precision and ensures a longer service life.
- The high-power, high-precision servo motor and driver provide stronger engraving capability and stable performance.
- The vacuum and T-slot working table securely fixes the material during processing, improving machining stability.
- The linear tool changer automatically switches between 6 tools, saving time and improving production efficiency.
Parameters
| Model | ELECNC1325ATC |
| X, Y axis travel | 1300×2500×300mm Option: 1500×3000mm, 2100×3000mm, 2100×4000mm, etc. |
| Z axis travel | 200mm Option: 300mm, 400mm, etc. |
| Spindle type | 9kw HQD ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw Fuling inverter |
| Tool magazine | Linear type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | NK105 G3 control system |
| Driving system | 850W Leadshine servo motor and driver |
| Machine structure | Heavy-duty body with quenching treatment |
| Work table | Aluminum T-slot work table |
| Linear guide | Taiwan 20# linear guide |
| Transmission | X, Y axis: Taiwan / Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | ARTCAM and Aspire |
| Command language | G Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/60HZ |
Optional Items
| Table | Vacuum work table |
| Vacuum pump |
Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collection system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw HSD ATC spindle |
| Control system | LNC2200, SYNTEC 50WE |
1325 Linear ATC CNC Router Optional Parts
6 Common Wood CNC Router Machine Applications
Cabinet and Wardrobe Manufacturing
Ideal for cabinet doors, wardrobes, and customized furniture panel production with high precision.
Woodworking and Decoration Industry
Perfect for creating decorative wall panels, 3D designs, and interior decoration elements.
Advertising and Signage Industry
Used for producing advertising boards, acrylic signs, and promotional displays efficiently.
Interior Construction Industry
Supports processing of architectural models, decorative components, and construction materials.
Wood Crafts Industry
Enables detailed carving and engraving for customized wooden crafts and artistic products.
Aluminum Processing Industry
Suitable for cutting, engraving, and drilling aluminum sheets for various industrial applications.
ATC CNC Router for Woodworking FAQ
The 1325 CNC router can process a variety of materials, such as plywood, particleboard, acrylic, MDF, aluminum, and composite materials.
While 9kW and 12kW are the standard spindle power ratings for this automatic tool change CNC router, they can be customized to meet your specific production needs; the machine is ideally suited for heavy-duty industrial machining.
The CNC router for cabinet making certainly boosts production efficiency. The machine’s automatic tool-changing function minimizes the time spent on tool changes as well as manual intervention and errors, thereby significantly increasing productivity and reducing labor costs.
The CNC router for furniture manufacturing is ideally suited for small and medium-sized furniture factories, helping manufacturers boost production speed and efficiency by providing an automation solution.
Yes, CNC wood cutting machine can process decorative panels, relief designs, wooden crafts, and more, creating highly complex and exquisite 3D patterns.
