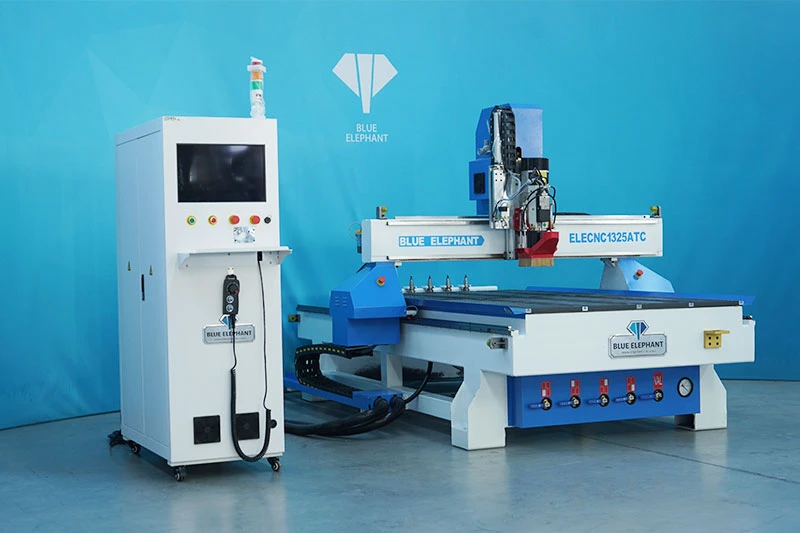

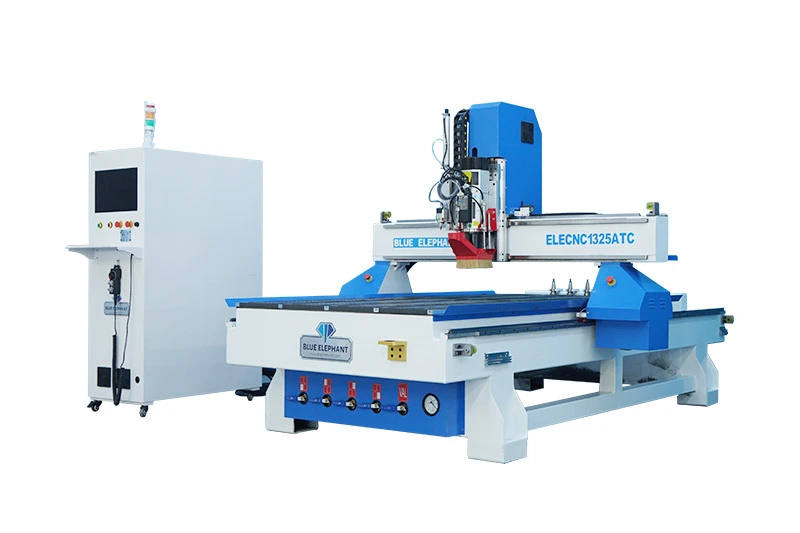

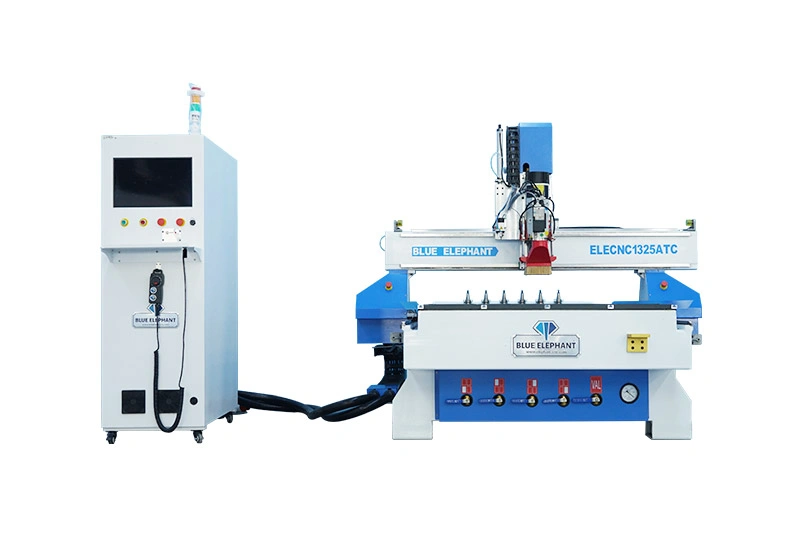

1325 4×8 ATC CNC Wood Engraving and Cutting Router Machine with Laser Head
- Brand: Blue Elephant
- Model: ELECNC1325ATC
- Standard: CE, ISO9001
- Table size: 1300mm*2500mm(4′ x 8′)
- Category: ATC CNC Router
- Supply Ability: 500+ Units in Stock
- After-sale Service: Free Lifetime Technical Support online, Overseas service.
- Payment Terms: Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty: 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description
1325 4×8 ATC CNC router is a combination of an ATC CNC wood cutting machine with a laser head. The laser head is used to leave various marks on multiple non-metal materials. Then, the spindle moves to cut out shapes according to the given paths. Besides, the CNC router can change among 6 tools automatically, which greatly improves work efficiency.
Features
- The laser head can leave various marks on a wide range of non-metallic materials, and then the spindle can move to cut out shapes. These two steps can be controlled in one program.
- 9KW air-cooled spindle has a powerful cutting ability and stable operation for long-term operation.
- T-slot vacuum worktable helps to fix the workpieces firmly to ensure good cutting precision.
- All components and parts adopt famous-brand products, ensuring smooth and reliable operation and long service life of the CNC router.
Parameters
| Model | ELECNC1325ATC |
| X, Y axis travel | 1300x2500mm, option: 1500*3000mm; 2000*3000mm; 2000*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, etc. |
| Spindle | 9kw HQD ATC air cooling spindle, 24000rpm |
| Laser head | Equipped with a laser head |
| Inverter type | 11kw Fuling inverter |
| Tool magazine | Linear tool magazine Option: carousel type auto tool changer |
| Tool holder with collet | BT30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | SYNTEC 60CA, option: Taiwan LNC controller |
| Driving system | 850w Leadshine servo motor |
| Reducer | Shimpo |
| Machine structure | Heavy duty machine body |
| Work table | T-slot & vacuum work table |

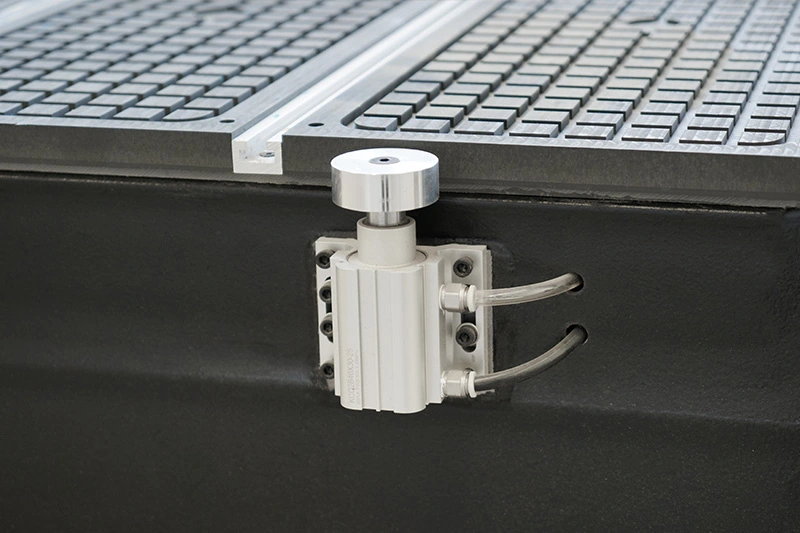

| Positioning cylinder | Optional: 5 pieces (X2,Y3) |
| Linear guide | HIWIN linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Automatic lubrication system |
| Tool calibration | Auto tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire,etc |
| Command language | G Code & M Code |
| Traveling speed | 40m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Optional Items
| Vacuum pump |
Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
ATC CNC Router Optional Parts
4×8 Wood CNC Machine Application
FAQs You May Want to Know About This Product
A 4×8 ATC CNC Router is ideal for cabinet making because it can process standard 4×8 ft panels with high efficiency. The automatic tool changer allows the machine to complete cutting, grooving, drilling, and engraving with different tools automatically, reducing manual work and improving production efficiency. Its vacuum table also helps keep large panels stable during machining, improving cutting accuracy.
A 1325 4×8 ATC CNC Router usually requires around 40–60 square meters of workshop space, depending on the layout and additional equipment. Besides the machine area, enough space around the CNC router should be reserved for loading 4×8 ft panels, operator movement;, dust collection, and daily maintenance.
The main difference is the production focus.
A 1325 4×8 ATC CNC Router is designed for flexible machining, including cutting, engraving, grooving, and shaping. A CNC Nesting Machine focuses more on automatic panel cutting and material optimization for high-volume furniture production. The ATC CNC Router is more versatile, while the nesting machine is more specialized for panel processing.
It is compatible with popular CAD/CAM software such as Aspire, ArtCAM, AlphaCAM, Type3, UCanCam, and Fusion 360. Users can create designs, generate tool paths, export G-code, and send the programs to the CNC router for machining.
A 4×8 CNC router can offer similar or even higher precision as smaller CNC routers when using a rigid machine structure, quality components, and proper calibration. Its main advantage is the larger 4×8 ft working area, allowing full-sheet processing without cutting panels into smaller pieces while maintaining consistent accuracy.
When choosing a 1325 4×8 CNC router kit, consider factors such as machine rigidity, spindle power, control system, drive motors, vacuum table performance, software compatibility, and after-sales support. The right configuration should match your materials, production volume, and application requirements.
