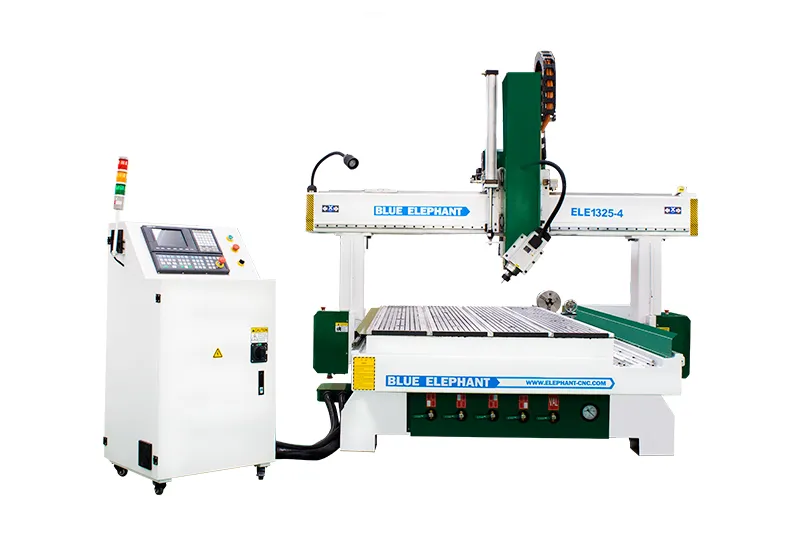

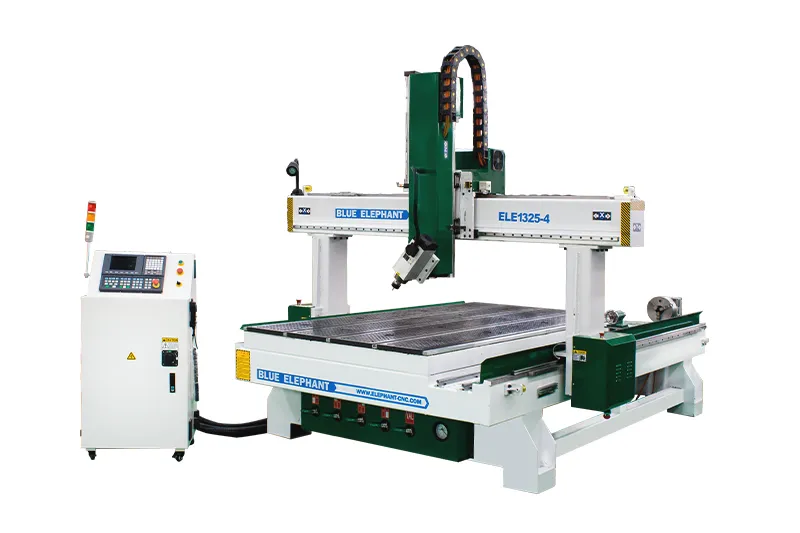

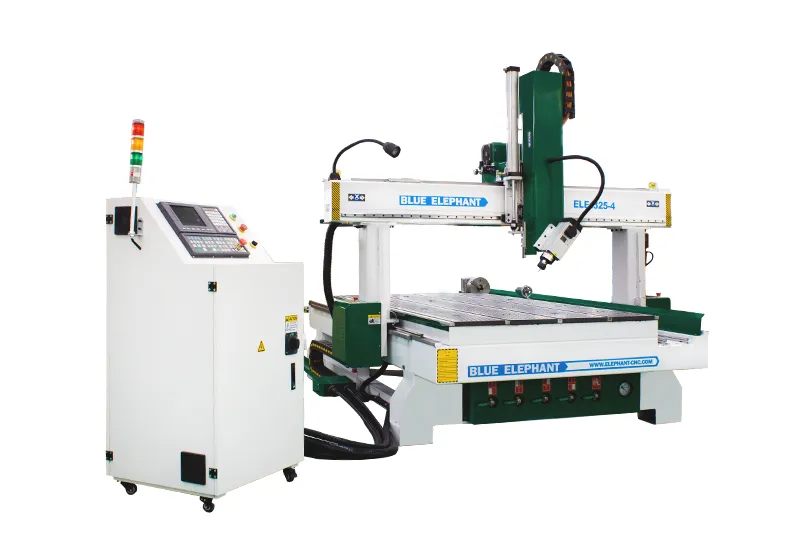

1325 4×8 4 Axis Rotary Wood Engraving CNC Router
- Brand : Blue Elephant
- Model : ELECNC-1325-4
- Standard : CE, ISO9001
- Table size : 1300mm*2500mm(4′ x 8′)
- Category : Rotary Axis CNC Router
- Supply Ability : 400+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description
This 1325 4×8 4 Axis CNC Router is designed with a rotary device and a swing spindle. So it can complete 2D and 3D engraving work and process cylindrical objects. The rotary device can be customized according to your requirements.
Features
- CNC Wood Engraving Machine is equipped with an HQD air cooling spindle, and it can swing in 180 degrees to engrave side surfaces of the workpiece.
- With Japan YASKAWA servo motors and drivers, it has the features of high efficiency and high speed.
- Adopting high-quality CNC router kits, such as Sweden ABBA linear guide and Taiwan TBI ball screw for Z axis, the machine has higher precision and good stability.
- All specifications of this 4th Axis CNC Router can be made and designed according to your requirements.
Parameters
| Model | ELECNC1325-4A |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm; 2000*3000mm; 200*6000mm, etc. |
| Z axis travel | 400mm, option: 500mm, 600mm, etc. |
| Spindle type | 6kw air cooling spindle, ER32 |
| Inverter type | 7.5kw |
| Drilling bank | Optional |
| Tool magazine | No tool magazine Option: Linear type or carousel type auto tool changer |
| Tool holder with collet | ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan Syntec controller, option: Taiwan LNC |
| Driving system | 750w Japan Yaskawa AC servo driver and 750w AC servo motor, 5 sets. option: 850w Japan Yaskawa servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Optional: 7 pieces (X2,Y3) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE,cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 40m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Rotary Axis CNC Router Optional Parts
What a 1325 4 Axis Rotary CNC Router Can Do?

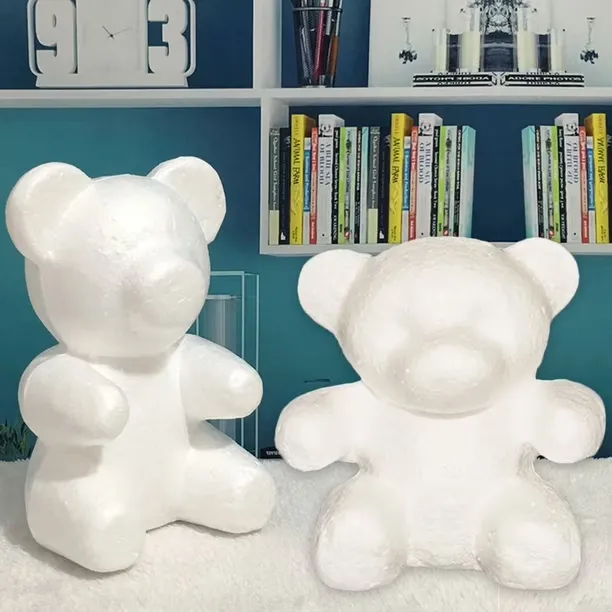

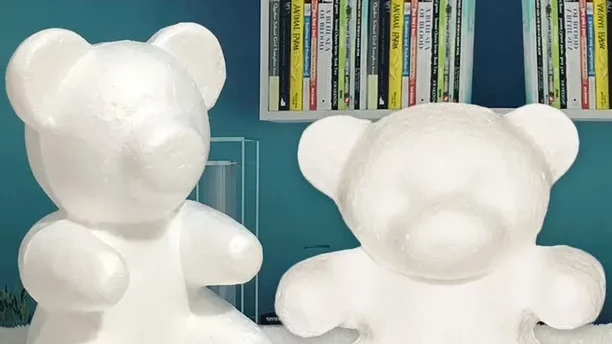

1325 4 Axis Rotary CNC Router is designed for 4 axis CNC machining and 3D carving applications, providing advanced solutions for processing complex workpieces such as foam molds, wood sculptures, and custom crafts. Equipped with a rotary axis, this CNC router with rotary axis can machine multi-dimensional and curved surfaces that are difficult to process with traditional 3-axis CNC routers.

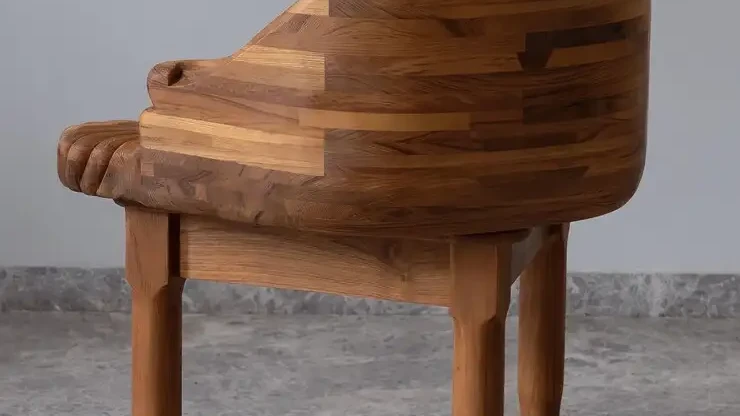

Besides standard cutting and engraving functions, the 4 axis CNC router 1325 with 4×8 rotary table can also perform side drilling, side grooves, and slotting on wood panels, making it suitable for producing furniture components, decorative parts, and customized products.
With its flexible 4-axis machining capability, this rotary axis CNC router for wood sculpture and furniture making is widely used in sculpture and statue production, foam mold fabrication, furniture manufacturing, architectural decoration, craft production, advertising signs, and other industries.
FAQ
A standard CNC router mainly uses three axes (X, Y, and Z) to process flat materials, while a 1325 4 Axis Rotary CNC Router adds a rotary axis for machining cylindrical and curved workpieces.
The additional rotary axis allows the machine to rotate the workpiece during cutting, making it possible to create complex 3D shapes, curved surfaces, columns, furniture legs, sculptures, and other irregular components that are difficult to produce with a standard 3-axis CNC router.

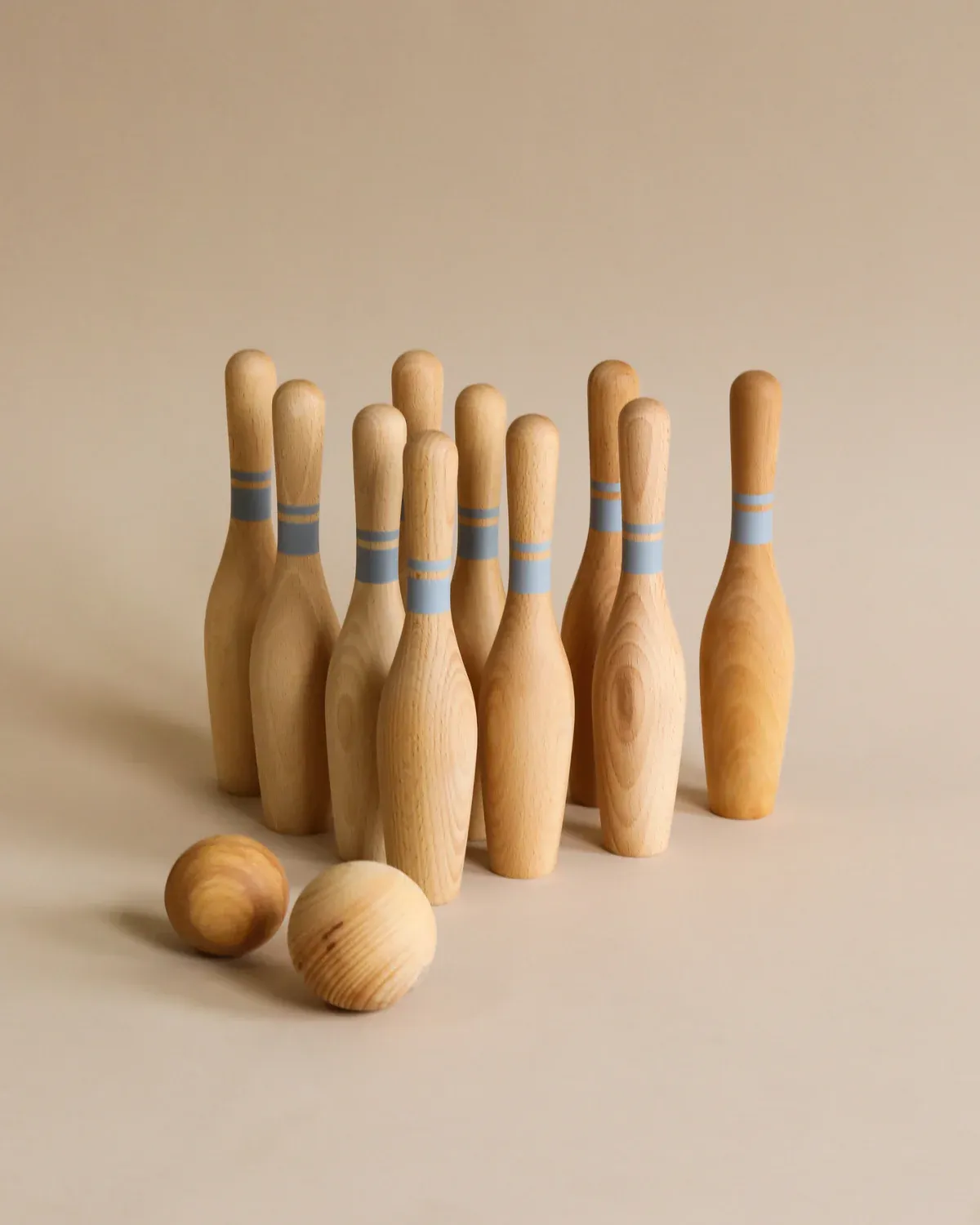

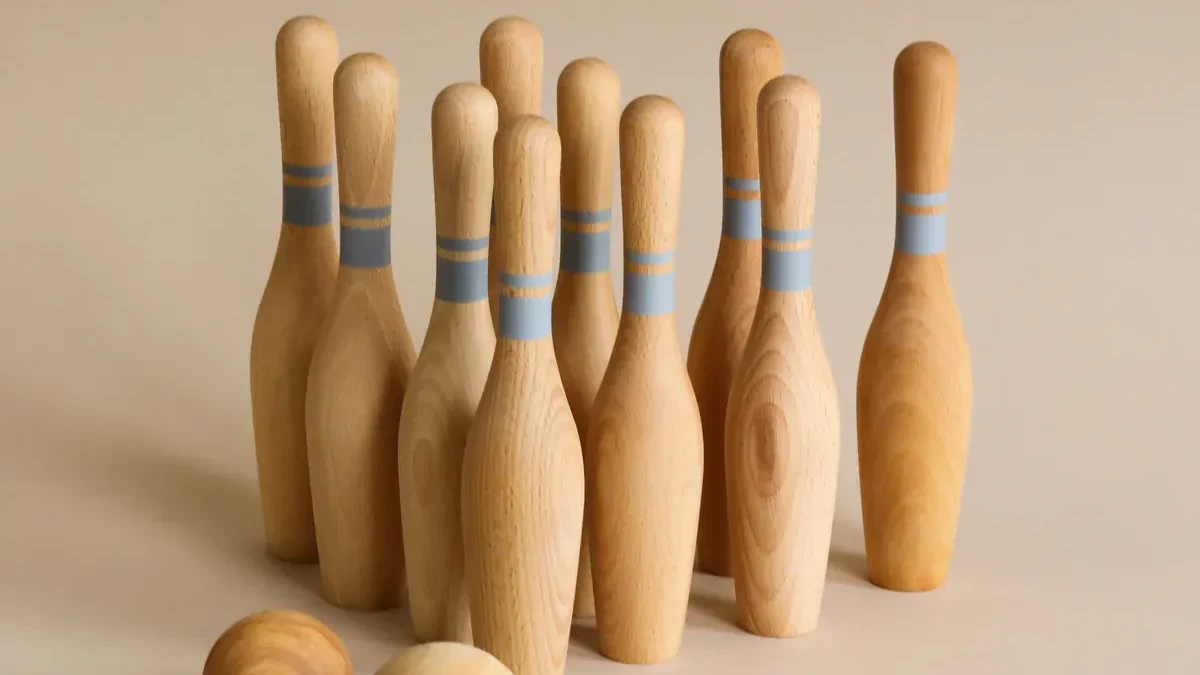

A 1325 4 axis rotary CNC router can handle many CNC rotary axis projects, especially those involving cylindrical or curved surfaces.
Common projects include:

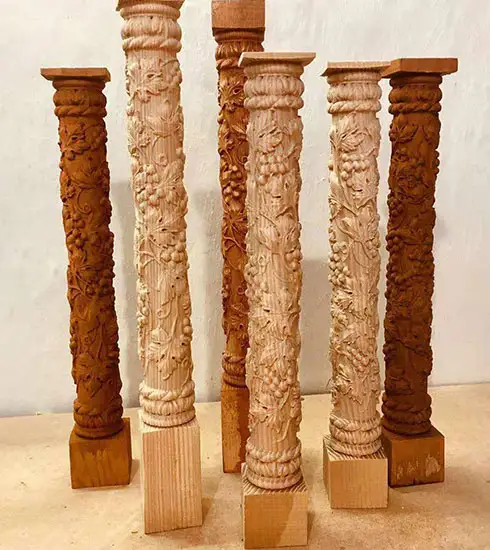

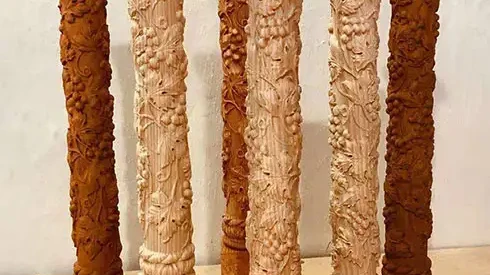

- Wooden columns
- Decorative pillars
- Stair components

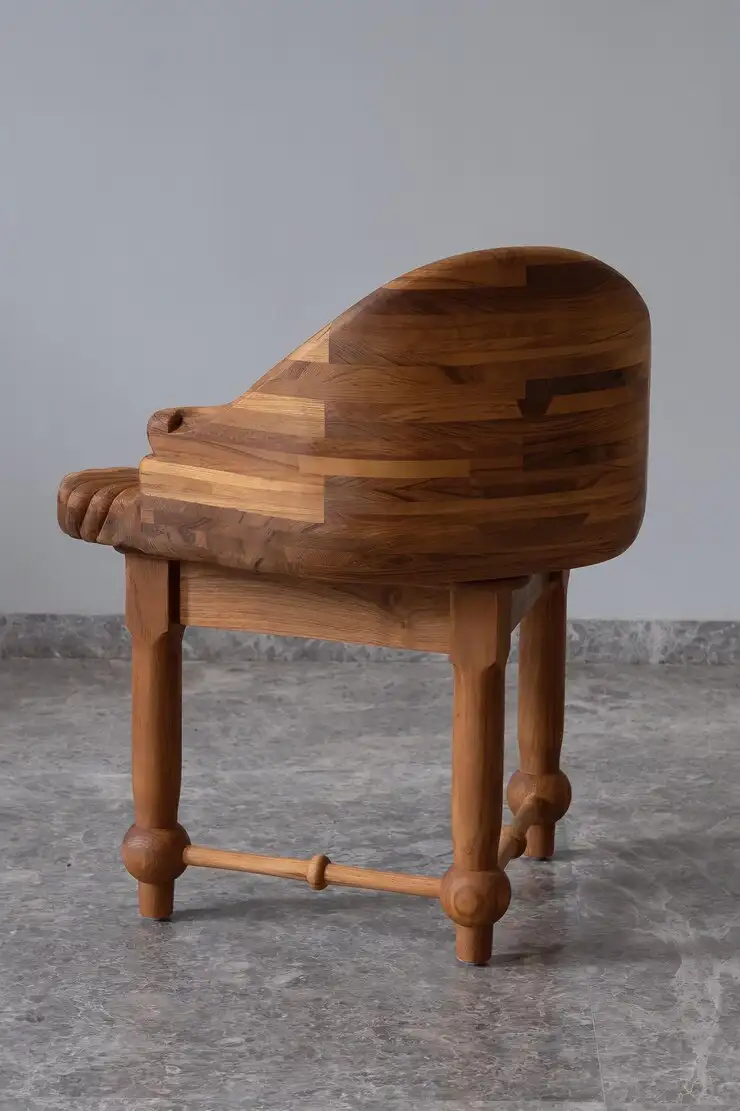

- Furniture legs
- Wooden bowls
- Sculptures
- 3D carvings
- Custom crafts
- Architectural decorations
The final machining capability depends on the workpiece size, material, tooling selection, and design complexity.
The choice depends on the complexity of your machining requirements.
A 1325 4 Axis Rotary CNC Router is ideal for woodworking applications involving cylindrical machining, curved surfaces, and 3D carving projects. It offers a practical balance between capability and investment.
A 5 axis CNC router is mainly designed for more advanced machining requirements, such as aerospace components, automotive molds, and extremely complex multi-angle parts.
For most woodworking businesses producing furniture components, sculptures, and decorative products, a 4 axis rotary CNC router is usually a more cost-effective choice.
Yes. Beginners can operate a 1325 4 axis rotary CNC router after receiving basic CNC training.
Modern CNC routers are designed with user-friendly control systems and software workflows. Operators mainly need to learn:
CAD/CAM design basics
Tool selection
Workpiece positioning
CNC program operation
Basic machine maintenance
With proper training and technical support, even new users can quickly start producing professional woodworking products.
A 1325 4 Axis Rotary CNC Router typically works with CAD/CAM software to design models and generate machining paths.
Common software options include:
Aspire
ArtCAM
Fusion 360
Type3
PowerMill
For rotary machining, the software should support 4-axis tool path generation to create accurate cutting programs for cylindrical and curved workpieces.
