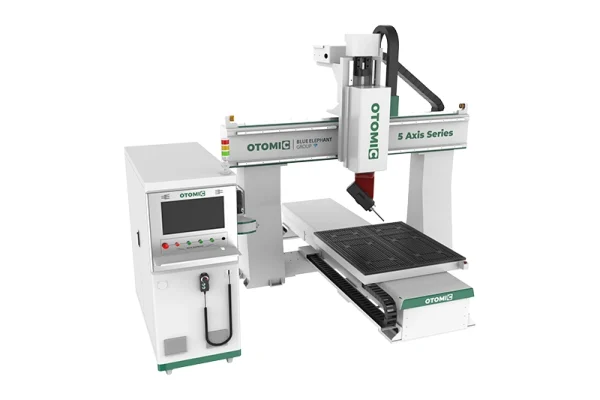

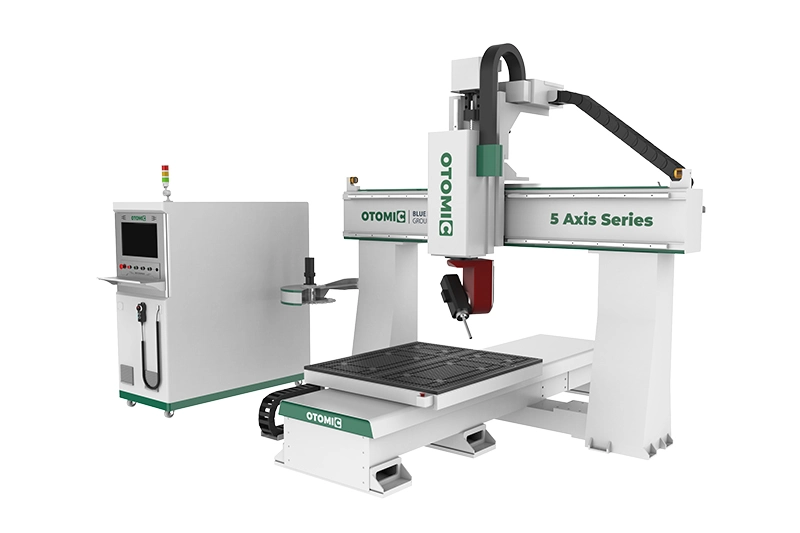

1212F 5 Axis Single Table CNC Machining Center
- Brand : Blue Elephant
- Model : Omic 1212F
- Standard : CE, ISO9001
- Table size : 1200mm*1200mm
- Category : 5 Axis CNC Router
- Supply Ability : 300+ Units in Stock
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
- Warranty : 12 month Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
Description

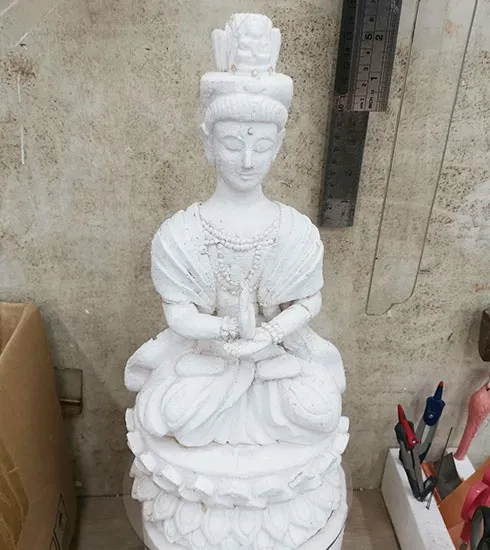

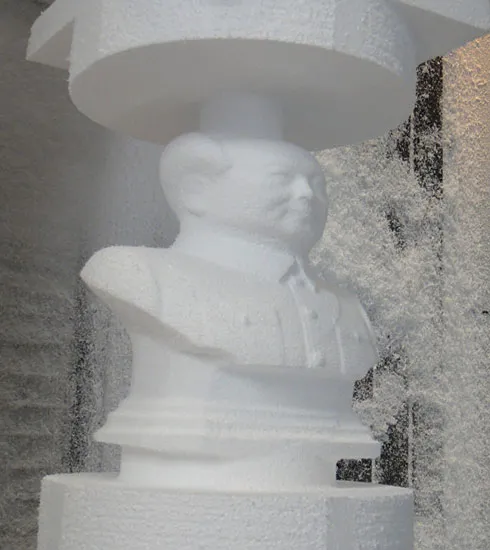

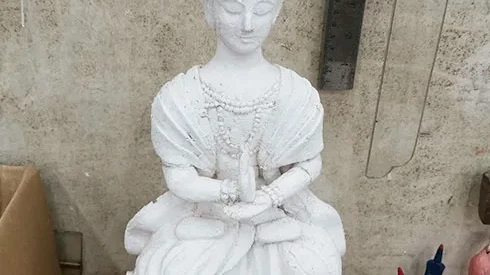

1212F 5 axis CNC router is an entry-level 5 axis CNC machining center for 3D woodworking projects. It’s gantry beam is fixed but the small worktable is movable. So this 5 axis CNC router is good at carving and engraving various 3D molds, statues, and other items.
Features

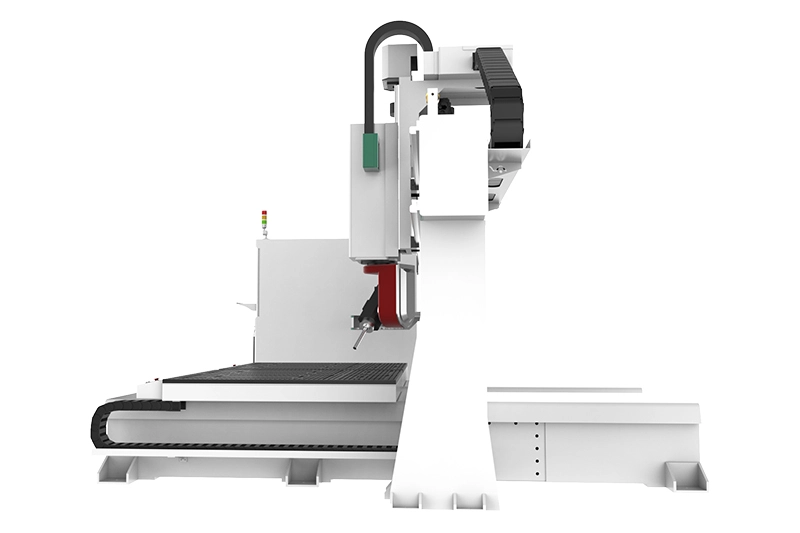

- It adopts the fixed-gantry and movable table structure, and the worktable can move back and forth during the machining process. This helps ensure that all side surfaces can be processed.
- The 5 axis CNC router has powerful functions and stable performance. It can carve and engrave multiple non-metal materials.
- All parts and components adopt high-quality or world famous brand products to guarantee smooth operation and high processing quality. For example, Yaskawa servo motor and driver, Shimpo reducer, Syntec control system, etc.
- Applicable materials include wood, EPS, resin, plaster and other non-metallic compound.
- With a carousel tool magazine, this CNC router can change tools automatically, extending the processes and increasing work efficiency.
Parameters
| Model | Omic 1212F |
| X,Y axis travel | 1200X1200mm |
| Z axis travel | 500mm-700mm |
| Spindle type | 10kw-12kw water cooling ATC spindle，24000RPM |
| Inverter type | 15kw Taiwan Delta inverter |
| Tool magazine | Carousel tool changer with 8/12pcs magazine |
| Tool holder with collet | HSK F63 tool holder |
| Control system | Syntec 610-E5 5 axis control system with RTCP functions |
| Driving system | X, Zaxis 1.3kw Y axis 1.8kw Japan Yaskawa servo motors |
| Reducer | Japan Shimpo |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Removable working table |
| Linear guide | X axis: Taiwan 30# Linear guide Y axis: Taiwan 30# Linear guide Z axis: Taiwan 30# Linear guide |
| Transmission | X axis:Taiwan Linear Grinding grade racks M2-1000 Y axis:Taiwan TBI Grinding grade screw, 4040-3100 Z axis:Taiwan TBI Grinding grade screw, 3210-1300 |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Powermill software |
| Command language | G Code |
| Traveling speed | 80m/min |
| Working speed | 0-60m/min |
| Working voltage | 380V 3PH 50HZ/ 60HZ（220V for option） |
Optional Items
| Vacuum pump | Water circulation Ring blower Rotary vane, oil-free: Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system | 3kw, 5.5kw, 7.5kw, etc, including dust hood, pipe, all full set
New type |
| Air Compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| table type | Vacuum table |
5 Axis CNC Router Machine Optional Parts
Application
INDUSTRIES
5 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 5 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. In regard to materials, 5 Axis router can process various wood materials, plastics and composites.
FAQ

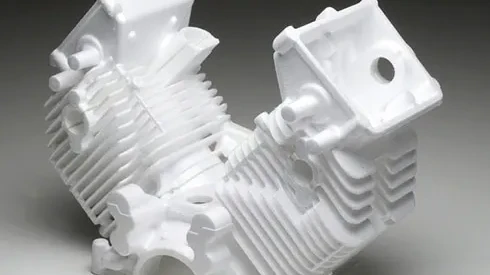

Precision machining of five-sided three-dimensional sculptures, models and complex geometric surfaces.
The key to distinguish 5 axis CNC router is whether the machine tool has the RTCP function.
The five-axis engraving machine refers to the addition of two devices that can rotate around a linear coordinate axis on the basis of three-axis linkage.
