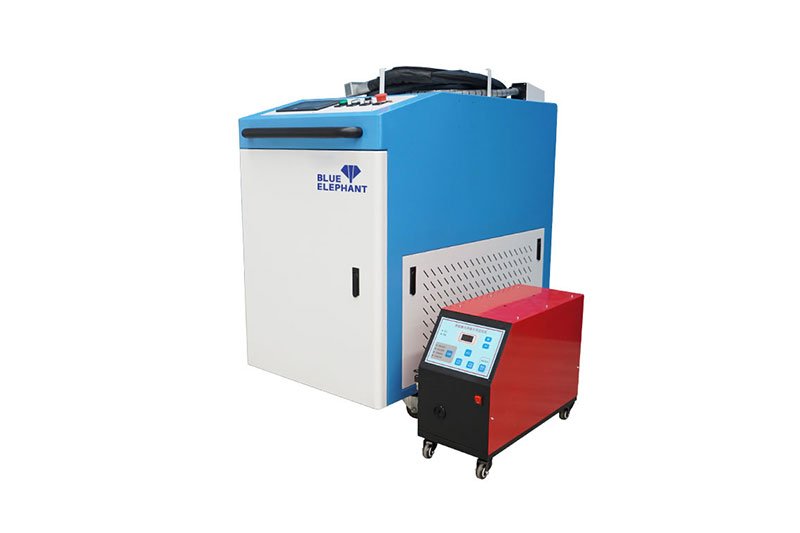

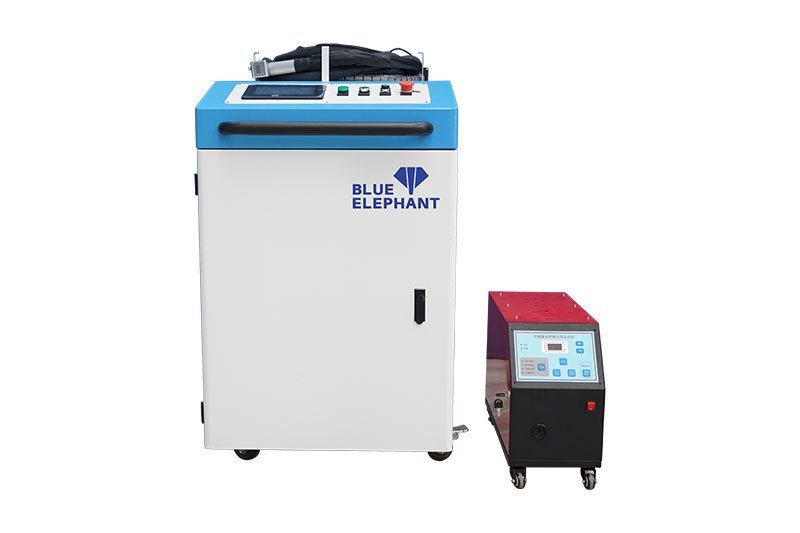

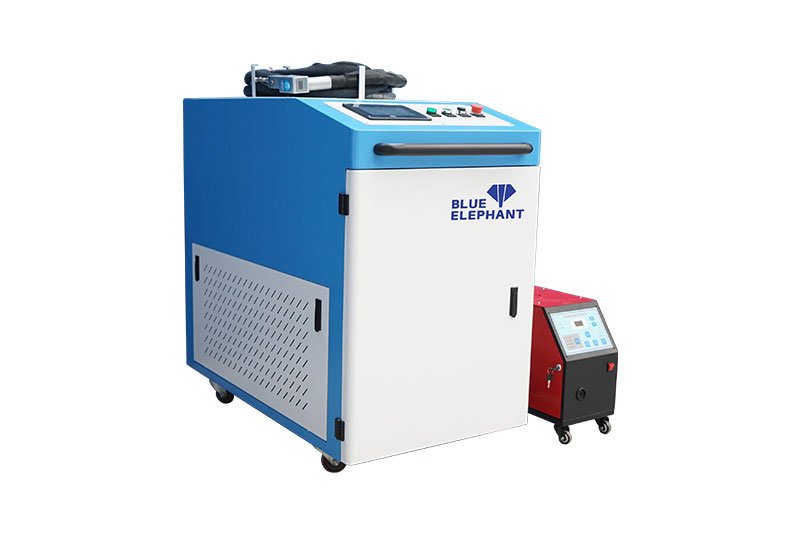

1000W Handheld Fiber Laser Welding Machine
- Brand : Blue Elephant
- Model : 1000W Best Handheld Laser Welder
- Category : Laser Welding Machine
- Supply Ability : 400+ Units in Stock
- Certificate : CE, ISO9001
- Laser Power ：1000W, optional: 1500W, 2000W
- After-sale Service : Free Lifetime Technical Support online, Overseas service.
- Payment Terms : Online (T/T, PayPal, Trade Assurance) / Offline (T/T, LC, Credit Cards)
Description
1000W Handheld Fiber Laser Welding Machine, it can weld any position and any angle of the workpiece. The operation is flexible and convenient. It can not only realize outdoor welding, but also apply to spot welding of various devices.
Features

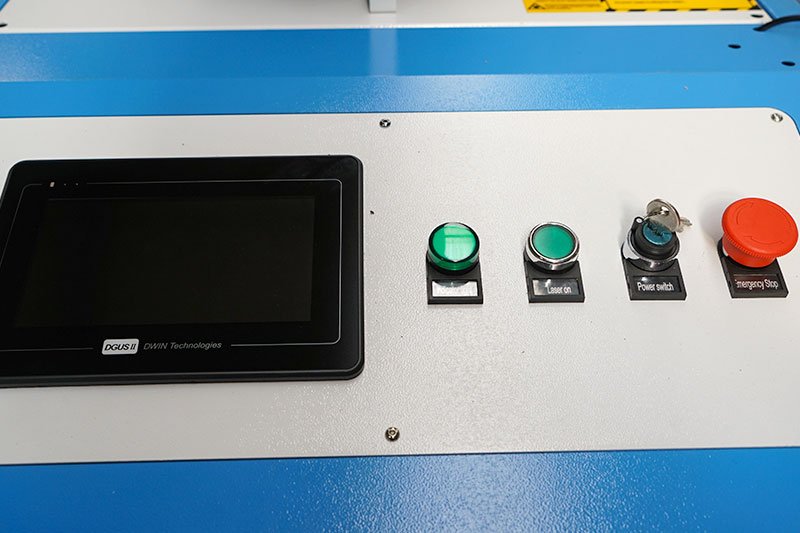

- Easy operation: The handheld laser welder is easy to operate. With stable laser output, the welding process is consistent, with rapid speed and good welding results.
- Rapid welding speed: Its welding speed is 2 times that of solid YAG laser welding and 3-5 times that of argon arc welding. It improves work efficiency and saves production costs.

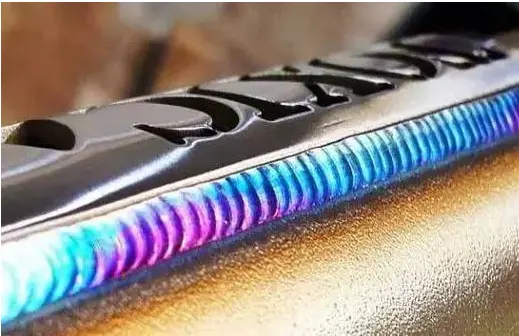

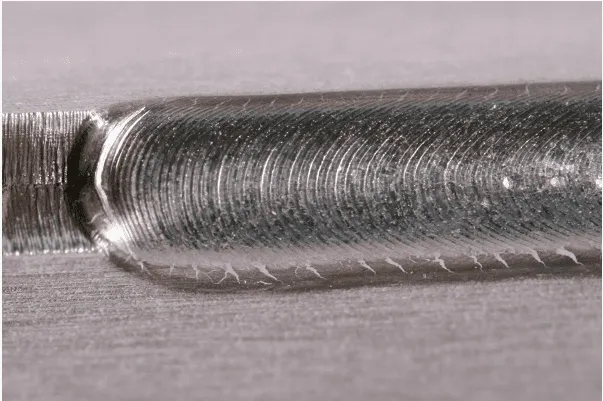

- Good welding effect: The swing welding method and the width of the welding spot are adjustable, and the welding fault tolerance is large. This makes up for the small shortcomings of the laser welding spot, expands the tolerance range and width of the welding seam, and achieves better welding seam forming effects.

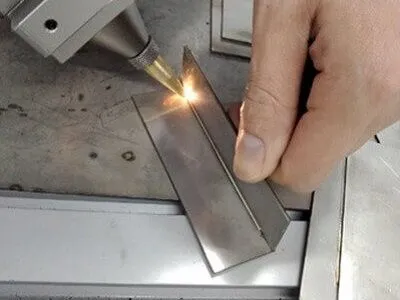

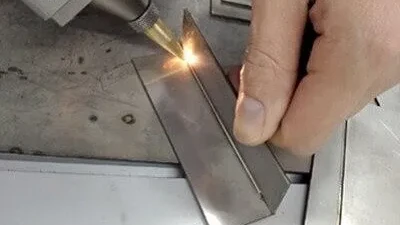

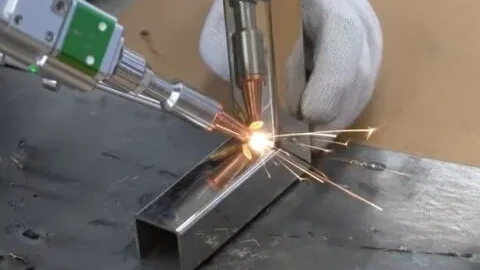

- 360-degree micro welding: It can be used for welding thin-walled materials and precision parts, and can realize spot welding, butt welding, stitch welding, sealing welding, etc. It features a small welding seam width, small heat-affected area, and minimal deformation.
- Flexible and convenient: The handheld welding gun replaces the previous fixed optical path, making it more flexible and convenient. It enables remote laser welding and overcomes the limitation of the travel space of the worktable.
Parameters
| Machine model | ELE-1000 |
| Max laser power | 1000W, optional: 1500W, 2000W |
| Laser source | Fiber laser |
| Beam quality | 1.3m² |
| Laser wavelength | 1080±5nm |
| Welding head | QBH |

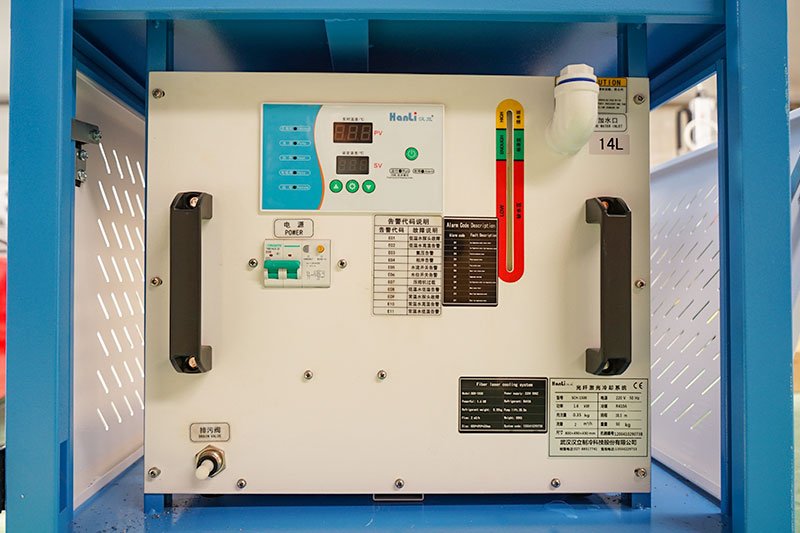

| Water chiller | 1.5P |
| Power required | 220V 50Hz 1PH |
| Fiber optical length | 8m |
| Stainless steel | Maximum 3mm |
| Iron | maximum 3mm |
| Lifetime | 100,000 hours, depending on actual use |

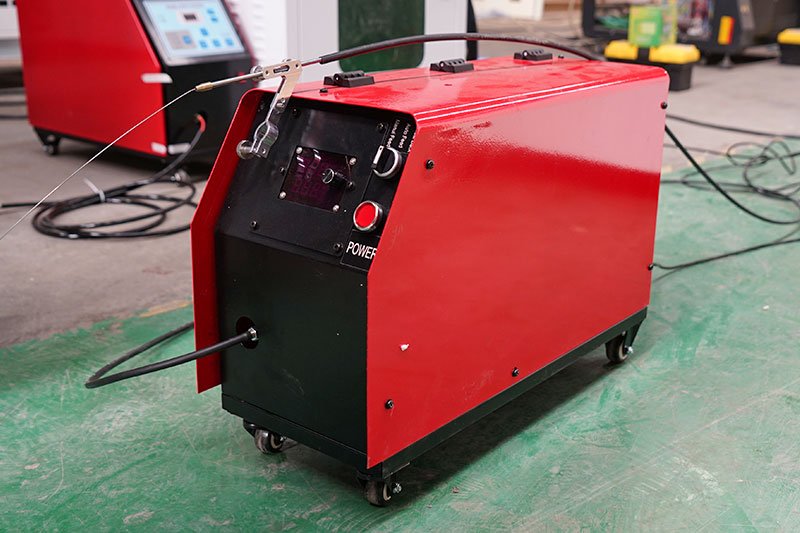

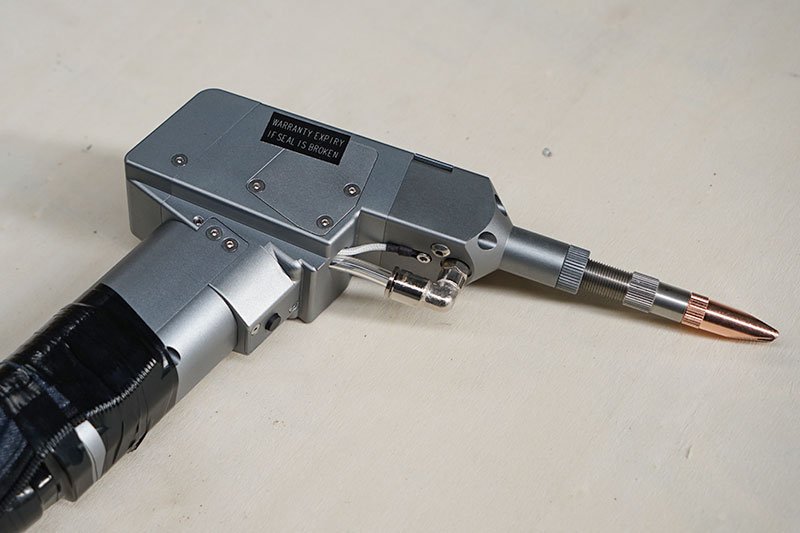

Laser Welding Machine Optional Parts
Application
The fiber laser welding machine is widely used in the IT industry, medical equipment, machinery manufacturing, elevator manufacturing, craft gifts, household appliances manufacturing, automobile shipbuilding, tools, hardware, advertising signs, display equipment, and other metalworking industries. The fiber laser welding machine can process many metal sheets and tubes. For example, stainless steel, aluminum, copper, galvanized sheets, gold, silver, and other alloy materials.
FAQ
The processing thickness is related to the laser power and the processing materials. Generally, the greater the laser power, the thicker the laser welder can weld.
Two types of lasers can be used to weld metal materials: pulsed laser or continuous laser. The choice between them depends on the thickness of the processing materials. The pulsed laser is suitable for light and thin metals, like sheet metal, razor blades, gold jewelry links, etc. The continuous laser is suitable for welding thick parts.
Typical working speed for laser welding production ranges from 1 to 10 meters per minute based on different laser power. But the speed is subjected to the actual working conditions and processing materials.
