I. The Essential Role of the Edge Banding Machine
The Critical Finish
Edge banding machine is an essential piece of furniture CNC machine equipment for modern panel furniture production, whose sole function is to apply a thin strip of material (PVC, ABS, wood veneer, etc.) to the raw, exposed edges of wood panels (MDF, Plywood, Particleboard).
Why Edge Banding Matters for Your Business?
Enhanced Aesthetics: Creates a seamless, polished, and professional final product (crucial for high-end cabinets and custom furniture).
Protection and Durability: Seals the panel core against moisture, impact, and warping, significantly extending the furniture’s lifespan.
Health and Safety: Covers sharp edges and seals in potential off-gassing from core materials.
Who Needs an Edge Banding Machine?
Furniture factories, cabinet makers, custom wood door manufacturers, and large-scale wardrobe producers in the USA and Europe who demand high precision and efficiency.
Tips for making money: 8 Ways to Make Money with An Edge Banding Machine for Plywood, MDF
II. Edge Banding Working Principle
The edgebanding process is a smooth, automated workflow (often called a ‘through-feed’ system), where the panel is mechanically clamped and moved past various aggregate units, each performing a specialized task.
The 9 Essential Stations: A Deep Dive into the Processing Methods
| Station | Function | Critical for Factory Quality |
| 1. Pre-Milling | Two high-frequency diamond cutters refine the panel edge for a perfect 90° cut, removing defects from the sawing process. | Zero-Joint Appearance: Ensures no gap between the panel and the tape, crucial for aesthetic and moisture resistance. |
| 2. Gluing | Applies hot-melt adhesive (EVA or PUR) to the panel edge via a glue pot and roller. | Versatility: The ability to handle PUR glue is a competitive advantage for high-moisture applications. |
| 3. Band Feeding & Pressing | Feeds the edge tape from a coil and presses it firmly onto the glue using a large main roller and multiple secondary rollers. | Bond Strength: Ensures uniform pressure to eliminate air bubbles and maximize adhesion strength. |
| 4. End Trimming | Two high-speed motors snip the excess tape at the front and rear of the panel. | Precision: Clean, square cuts at high feed speeds. |
| 5. Rough Trimming | Removes the majority of the overhang on the top and bottom of the panel. | Speed: Prepares the edge for the final delicate work. |
| 6. Fine Trimming | Uses radius cutters to trim the tape flush and create the final, precise edge profile (e.g., R1, R2, R3 radius). | Aesthetics: Defines the final feel and look of the edge. |
| 7. Corner Rounding (Profiling) | (High-Value Unit) Automatically traces and rounds the four corners of a rectangular panel. | High-End Finish: Essential for cabinets and wardrobes; eliminates the need for manual work. |
| 8. Scraping (Flat & Profile) | Removes cutter marks (ripples) left by the trimming blades and scrapes any excess glue. | Ultra-Smoothness: Provides a hand-sanded feel that cannot be achieved with trimmers alone. |
| 9. Buffing/Polishing | Soft cloth wheels clean and buff the finished edge, restoring color and shine. | Final Luster: Removes minor scuffs for a flawless, final appearance. |
III. Machine Types: Matching Equipment to Production Scale
1. Fully Automatic Edge Banding Machine
A fully automatic edge banding machine is designed for medium and large furniture manufacturers that need high efficiency, stable quality, and continuous production. It can automatically complete multiple processes, including feeding, pre-milling, gluing, edge banding, trimming, scraping, and polishing.
Key Features
- High Processing Speed: Most fully automatic edge banders can operate at 12–30 m/min, helping you complete large production orders in less time.
- Multiple Automatic Functions: One machine can handle several edge finishing processes, reducing manual operations and improving your overall workflow.
- Consistent Edge Quality: The automatic control system ensures every panel receives the same precise and professional edge finish.
- Lower Labor Requirements: You only need a small number of operators to monitor the machine, which helps reduce labor costs and production pressure.
Common Applications
Fully automatic edge banding machines are widely used in kitchen cabinet factories, wardrobe manufacturers, office furniture producers, and large panel furniture companies.
If you produce hundreds of panels every day, this type of machine helps you maintain stable quality while meeting tight delivery schedules. It is especially suitable for businesses that focus on high-end furniture where appearance and durability matter.
Advantages
With a fully automatic edge bander, you can increase production capacity, reduce dependence on skilled workers, and achieve a cleaner, more professional finish.
For growing furniture manufacturers, it is not only a production machine but also an investment that improves long-term efficiency and profitability.
Best For
A fully automatic edge banding machine is ideal if you:
- Run a medium or large furniture factory
- Process a high volume of panels daily
- Need consistent edge quality for premium products
- Want to reduce manual labor costs

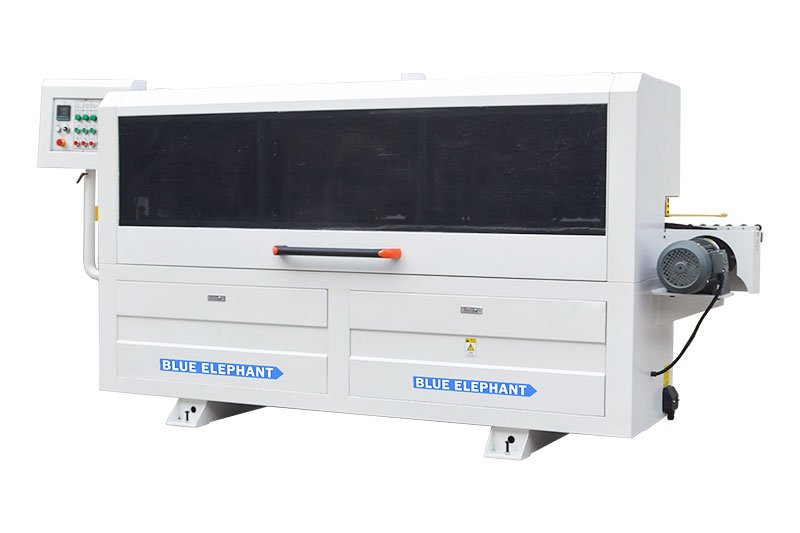

2. Semi-Automatic Edge Banding Machine
A semi-automatic edge banding machine is a practical choice for small and medium-sized workshops that need better efficiency than manual edge banding but do not require a fully automated production line.
It completes essential processes such as gluing, pressing, trimming, and polishing, while operators assist with panel feeding and positioning.
Key Features
- Affordable Investment: You can achieve professional edge finishing without the higher investment required for a fully automatic machine.
- Easy Operation: The simple structure makes the machine easier to learn, operate, and maintain.
- Suitable for Small-Batch Production: You can efficiently handle customized orders and moderate production volumes without unnecessary costs.
- Flexible Production: You can use the machine for different furniture projects without complex setup requirements.
Common Applications
Semi-automatic edge banders are commonly used in small cabinet workshops, custom furniture businesses, interior decoration companies, and growing woodworking factories.
If your production volume is increasing but does not yet justify a fully automatic system, a semi-automatic machine provides a good balance between investment cost and production efficiency.
Advantages
A semi-automatic edge banding machine helps you upgrade from manual processing while keeping your investment under control.
It is a suitable solution when you want better edge quality, faster production, and less dependence on manual skills.
Best For
A semi-automatic edge bander is ideal if you:
- Own a small or medium furniture workshop
- Produce customized furniture orders
- Need better efficiency than manual edge banding
- Have a limited production budget
3. Manual / Portable Edge Banding Machine
A manual or portable edge banding machine is a compact solution designed for small projects, furniture repair, and on-site installation.
Unlike automatic machines, it requires more operator involvement, making it better suited for low-volume work rather than continuous factory production.
Key Features
- Low Initial Cost: You can start edge banding operations with a smaller investment compared with automated solutions.
- Easy to Move: The compact design allows you to use the machine in different locations or on-site projects.
- Flexible Application: You can handle small repairs, customized work, and special projects with greater flexibility.
- Simple Maintenance: The basic structure makes daily maintenance and troubleshooting easier.
Common Applications
It is an edge banding machine for small shops, furniture installers, repair businesses, and hobby workshops.
If you only need occasional edge finishing or work on different job sites, a portable machine gives you the flexibility you need without investing in a larger system.
Advantages
A manual edge bander is a cost-effective choice when production requirements are limited.
It allows you to complete basic edge finishing tasks quickly, although the final quality and speed will depend more on operator experience.
Best For
A manual edge banding machine is ideal if you:
- Handle small furniture projects
- Need a portable edge finishing solution
- Perform furniture repair or installation work
- Have occasional edge banding requirements
Fully Automatic vs Semi-Automatic vs Manual Edge Banding Machine
| Type of Edge Banding Machine | Production Volume & Target User | Core Advantages | Key Features | Applications |
| Fully Automatic CNC Edge Bander | Large-scale Industrial Factories (Your Main Target); High volume, complex panels (doors, cabinets, wardrobes). | High speed (18–30 m/min), maximum functionality (9+ stations), superior quality, minimal labor cost per panel. | Fully automated, multi-process edge finishing, high efficiency. | Cabinets, wardrobes, panel furniture, large furniture factories. |
| Semi-Automatic Edge Bander | Small to Medium Workshops; Straight edges only, lower throughput. | More affordable initial investment, a step up from manual, but lacks the precision of pre-milling and corner rounding. | Basic automatic functions, easy operation, cost-effective. | Small furniture workshops, custom furniture, decoration companies. |
| Portable/Manual Edge Bander | Hobbyists, on-site installation/repair. | Flexibility for curved/irregular shapes, but not a primary production tool for quality furniture. | Compact design, flexible use, simple operation. | Repairs, installation, small projects. |
Jinan Blue Elephant’s offerings are positioned directly against the scale of US/European furniture production.
Blue Elephant edge banding machine is an ideal for furniture, cabinetry, and interior decoration, ensures clean, strong, and seamless edge finishes on a variety of board materials, and can be customized to fit specific production needs, including functions like gluing, scraping, and polishing.
Whether for PVC, ABS, wood veneer, or melamine, our edge banding solutions improve production efficiency and reduce manual labor.
Ⅳ. Materials Compatible With Edge Banding Machine
Edge banding machines are capable of processing a wide range of panel materials, including MDF, plywood, particleboard, melamine-faced boards, acrylic, PVC, and solid wood. When paired with appropriate edge banding materials—such as PVC, ABS, or wood veneer—and the right adhesive system, these machines deliver a clean, seamless finish. Selecting equipment that aligns with your specific panel types and edge banding requirements will significantly enhance product quality and boost production efficiency.
V. The Smart Buyer’s Checklist: 5 Crucial Purchasing Precautions
1. Functionality: Don’t Pay for What You Don’t Use
Must-Haves for US/EU Market: Prioritize machines with Pre-Milling and Corner Rounding. These are the two biggest quality differentiators.
Integration: Look for features like Slotting/Grooving (for wardrobe back panels) to reduce panel saw processes and streamline the workflow.
Tips for choosing edge banding machine: How to choose the edge bander?

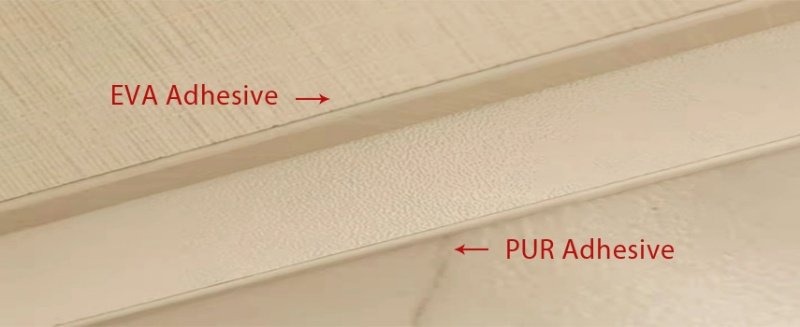

2. Glue Technology: The EVA vs. PUR Debate
EVA: Standard, affordable, easy to clean.
PUR (Polyurethane Reactive): The professional choice for premium, durable furniture. It forms a chemical bond that is virtually waterproof and has a much higher heat tolerance.
Actionable Tip: If you manufacture high-end kitchen or bathroom units, a PUR-capable machine is a non-negotiable investment for warranty and longevity.
3. Machine Components & Reliability
The Difference is in the Details: High-ranking machines use world-class components.
- Motors: High-frequency, independent motors for each unit (e.g., imported brands).
- Control System: User-friendly PLC control with a clear touchscreen interface.
- Frame: Heavy-duty, stress-relieved steel frame for vibration absorption and long-term stability.
4. Cost of Ownership & Support
Consider the Total Cost of Ownership (TCO). A cheaper machine with frequent downtime is more expensive than a reliable machine with a higher upfront cost.
Blue Elephant offers 24-hour response support, free lifetime technical support online, software upgrades and overseas parts service.
5. Panel Requirements
Ensure the machine’s specifications align with your production: Panel thickness (typically 10-60mm), minimum/maximum panel length/width, and feed speed range (look for high variable speeds).
FAQ
1. How do I choose the right edge banding machine for my workshop?
First, determine your production scale: if you are a hobbyist processing only a few cabinet units per week, a manual edge bander will suffice; if your output increases to dozens of units per week, a semi-automatic model is a suitable choice; however, for continuous daily production, an industrial high speed automatic edge banding machine is essential.
Next, evaluate whether the machine’s specific edge-banding functions meet your requirements; then, consider your workspace and power supply to select a machine that fits your facility’s conditions; finally, compare different brands to make your ultimate decision.
2. Can you recommend top brands for edge banding tools?
If you need a manual edge bander machine, you can choose FastCap, which is the benchmark brand in the field of handheld edge banding accessories in the United States.
If you need a semi-automatic or special-shaped edge banding machine, Co-Matic / Shop Gear Inc can be considered.
For fully automatic edge banding machines, Blue Elephant CNC, SCM Group, Holz-Her & Homag are some good options.
3. How fast can an automatic edge banding machine work?
Standard fully automatic edge banders operate at speeds of 12–20 m/min, making them suitable for cabinet processing in small-to-medium-sized furniture factories; high-specification fully automatic edge banders reach speeds of 18–30 m/min, ideal for large-scale furniture manufacturing and batch cabinet production; and high-speed industrial edge banding machine achieve speeds of 30–40 m/min, suitable for automated production lines for large-scale panel furniture.
4. Can an edge banding machine process curved edges?
Yes, it is possible. While standard straight-line edge banders cannot handle curved edges, specialized bevaled and straight edge banding machines designed for both straight and curved edges or 45 degree edge banding machine—as well as portable manual edge banders—can apply edge banding to irregular curves and complex shapes, such as inner and outer arcs.
5. What thickness of edge banding can a machine handle?
Common thin edge banding ranges from 0.4 to 1 mm in thickness; standard edge banding is 1–2 mm thick; thick edge banding is 2–3 mm thick; and solid wood edge banding ranges from 3 to 5 mm or even thicker.
6. What Is Zero Joint Edge Banding Technology?
Seamless edge banding is a high-end furniture edge-finishing technology. Unlike traditional EVA or PUR methods, it does not leave visible white or black lines, creating the visual effect of a seamless, integrated unit. This technology can be achieved through methods such as laser edge banding, plasma edge banding, or the application of special reactive coatings.
Ⅴ. Conclusion
Investing in an advanced CNC wood edge banding machine is the single most effective way to guarantee the quality and efficiency needed to compete in the high-demand US and European markets for cabinets, doors, and wardrobes.
Jinan Blue Elephant’s Promise: As a leading manufacturer of comprehensive woodworking CNC solutions (Cutting, Drilling, Edge Banding), we build machines engineered for the precision, durability, and high throughput your factory demands.
