The steps are as follows.
The first part is “Pulse Equiv”
1.Press“MENU”button,then choose“MACHINE SETUP”
2.Press“OK”button,then choose“Pulse Equiv”
3.Press“OK”button, then Press“DELETE”button to clean the number
4.Input the data.The normal pulse of X axis is 200,Y axis is 200,Z axis is 400.Don’t forget press “OK”button after you set the data.

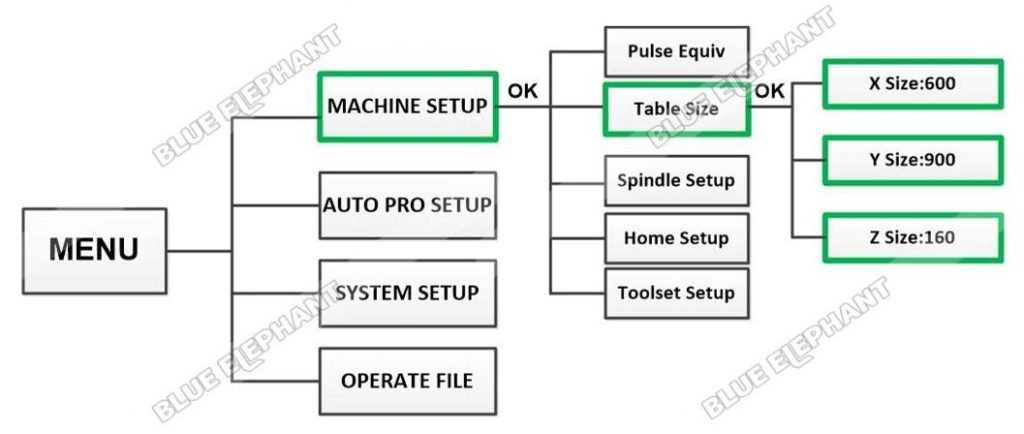

The second part is “Table Size”
1.Press“STOP/CANCEL”button,we will back to menu list,then choose“Table Size”
2.Input the data.The normal size of X axis is 600, Y axis is 900 , Z axis is 160.Don’t forget press “OK”button after you set the data.

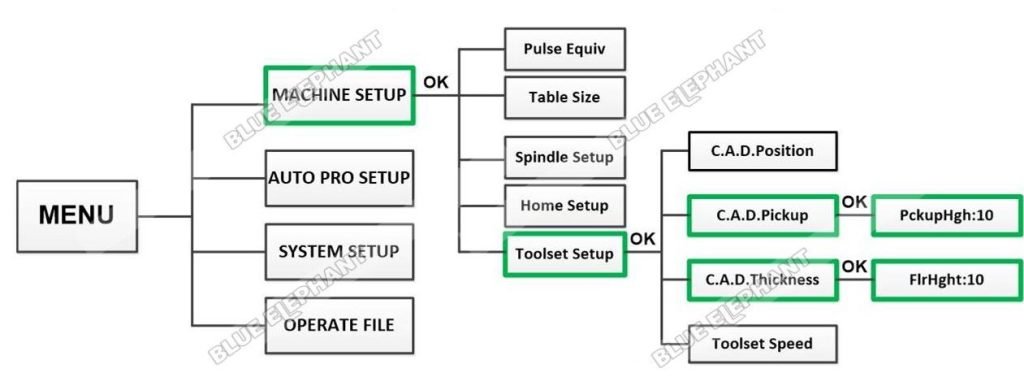

The third part is “Toolset Setup”
1.Press“STOP/CANCEL”button,we will back to Toolset list,then choose“Toolset Setup”
2.Press“OK”button,then choose“C.A.D Pickup”
3.Press“OK”button,we will see the data of “PckupHgh”is 10 It’s a safe data,so there is no need to change.
4.Press“OK”button,we will back to Toolset list,then choose“C.A.D Thickness”
5.Press“OK”button,we will see the data of “FlrHght”is 10 It’s a safe data,so there is no need to change.
6.Keep pressing“STOP/CANCEL”button,we will back to “Information” interface.
The last step is restarting the handle.
The video is as follow.
