1. THREE AXIS MACHINE
A : Mach3
B : Ncstudio 53C,95A-3l 95A-4A(rotary)
C : DSP A11 B11 A18 B18 A51 B51
Please select this one processor
Name: Model Master 3 Axis Flat(.*mmg)

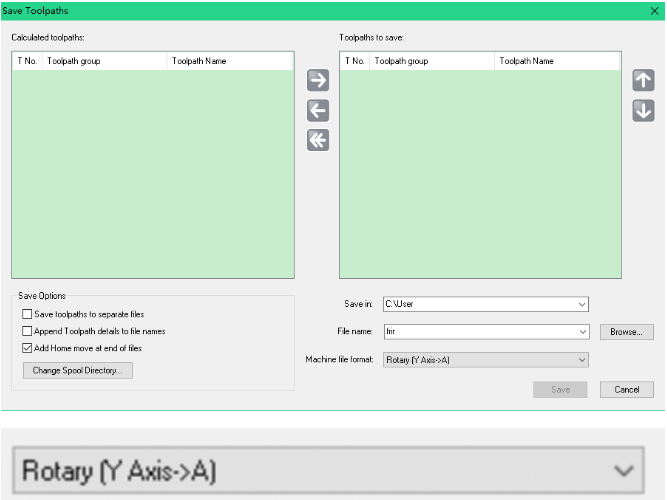

2. All the rotary , please select this one postprocessor .
Name ：Rotary (Y Axis-> A)

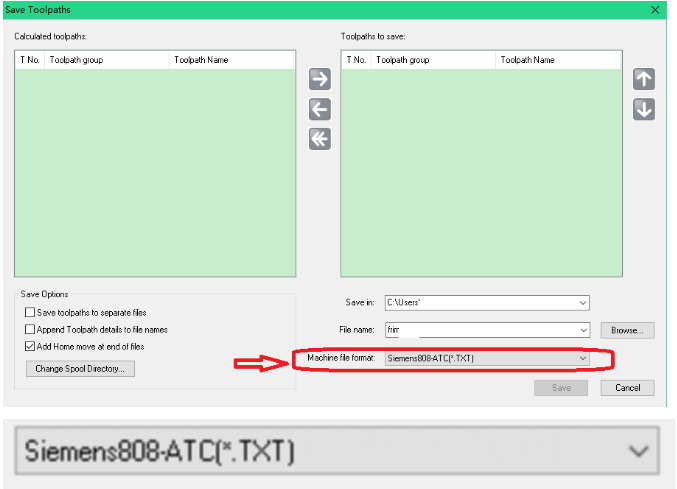

3. Siemens 808/828 ordinary triaxial and Siemens 808/828 ATC machines.
Please select one.
Name : Siemens808-ATC(*.TXT)
Attention

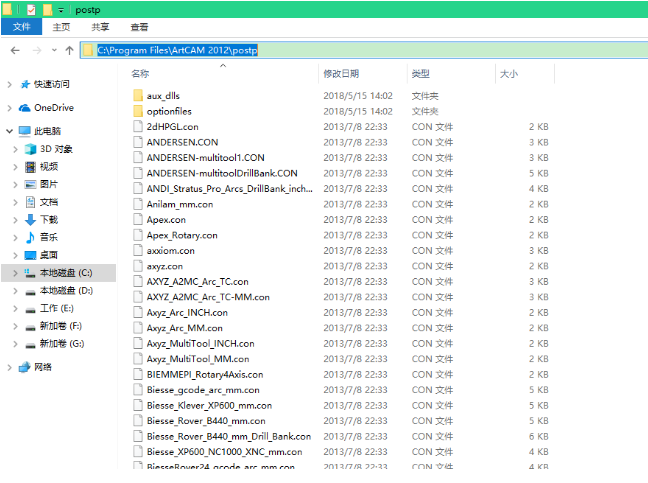

After install ARTCAM , Please find then copy this file
Then patse it to ARTCAM install folder ,here is am example :
C:/Program Files/ArtCAM 2012/postp

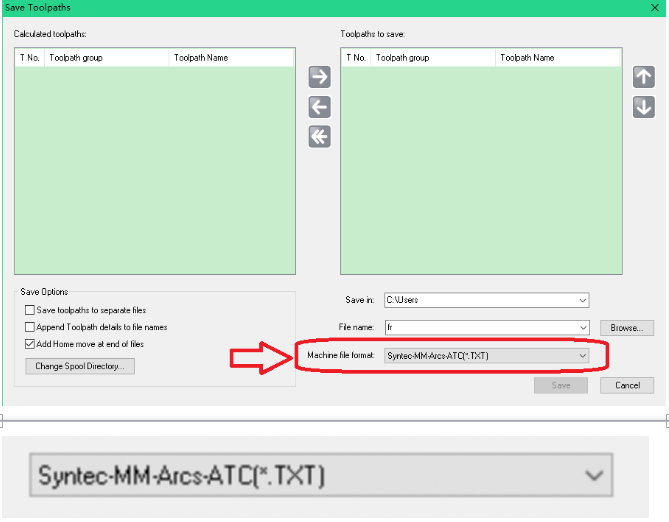

4. Syntec 3 axis and Syntec ATC,please select this one .
Name : Syntec-MM-Arcs-ATC(*.TXT)
